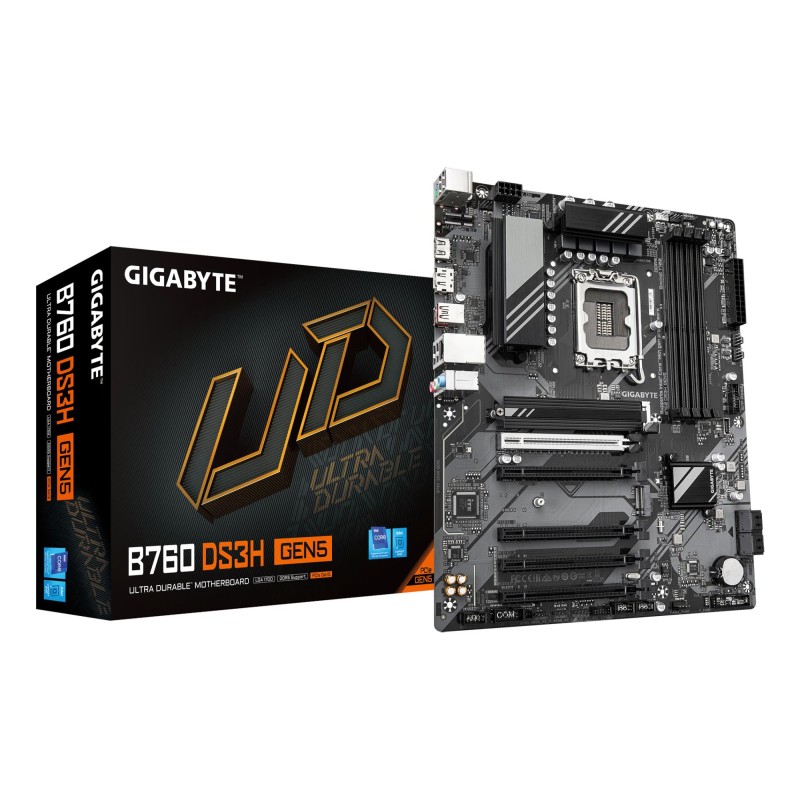

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|B760DS3HGEN5

Дополнительная информация

Сайт продавца

https://www.gigabyte.com/

Гарантия

36

Модель

B760 DS3H GEN5

Код категории

MBI

Высота блока

0.08

Длина блока

0.335

Ширина блока

0.27

Units per Shipping Box

1

Unit Calculated Volume

0.007236 cubm

Unit Calculated Weight

1.27 kg

Summary

GIGABYTE B760 DS3H GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

335 mm

Packaging data (Package depth)

270 mm

Packaging data (Package height)

80 mm

Packaging data (Package weight)

1500 g

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Other features (Weight)

1320 g

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Features (Product colour)

Dark brown

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Packaging content (Screws included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

Intel

Features (Component for)

PC

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Network (LAN controller)

Realtek RTL8111H

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Cooling type)

Passive

Battery (Battery weight)

3 g

Processor (Compatible processor series)

Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Celeron

Processor (Processor socket)

LGA 1700

Processor (Supported processor sockets)

LGA 1700

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

5600 MHz

Memory (Supported memory clock speeds)

4400/4800/5200/5600 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

6

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

4

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (S/PDIF out connector)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Network (Ethernet interface type)

Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel B760 Express

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

2

BIOS (BIOS memory size)

128 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Rear panel I/O ports (DisplayPort version)

1.2

Rear panel I/O ports (HDMI version)

2.1

Features (Audio chip)

Realtek ALC897

Features (Power source type)

ATX

Graphics (DirectX version)

12.0

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

BIOS (ACPI version)

5.0

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2304 pixels

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (Number of RGB LED pin headers)

4

Internal I/O (Number of water pump connectors)

2

Internal I/O (Serial port headers)

1

Expansion slots (1st M.2 highest PCI Express generation)

4.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

2280

Expansion slots (PCI Express x16 (Gen 3.x) slots)

4

Internal I/O (Number of EPS power connectors (8-pin))

1

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Специальные референции

ean13

4719331872892

MPN

1447480
