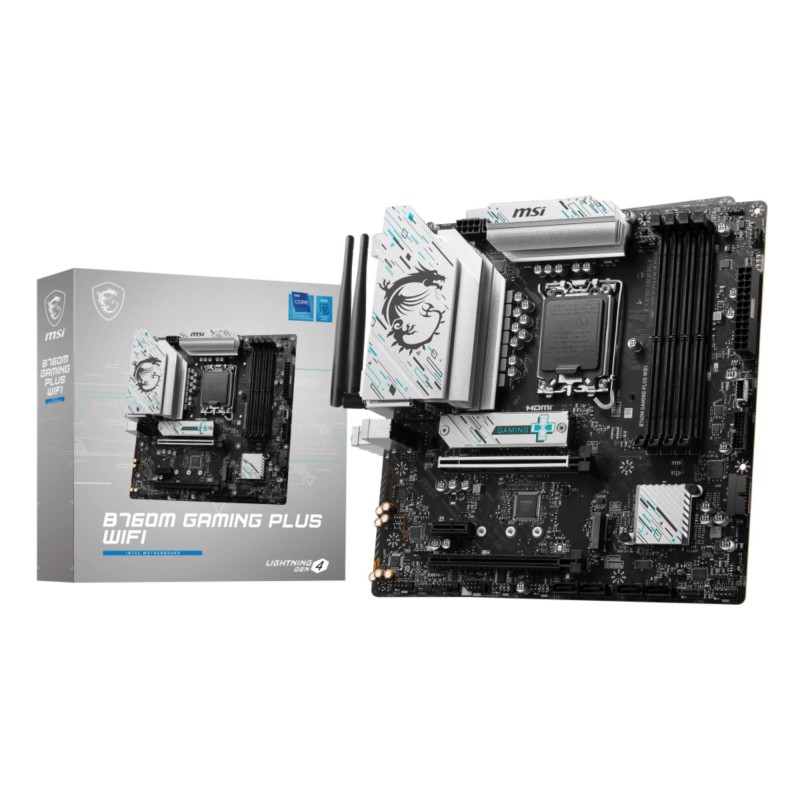

Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-E

Дополнительная информация

Сайт продавца

https://www.msi.com/Motherboard/B760M-GAMING-PLUS-WIFI/Overview

Гарантия

36

Модель

B760M GAMING PLUS WIFI

Код категории

MBI

Высота блока

0.055

Длина блока

0.3

Ширина блока

0.0275

Units per Shipping Box

10

Unit Calculated Volume

0.005495 cubm

Unit Calculated Weight

1.34 kg

Summary

MSI B760M GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Pentium Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported

Weight & dimensions (Width)

243.84 mm

Weight & dimensions (Depth)

243.84 mm

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11ad/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Processor (Processor manufacturer)

Intel

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Features (Component for)

PC

Memory (Maximum internal memory)

192 GB

Memory (Memory channels)

Dual-channel

Processor (Compatible processor series)

Intel Celeron /Intel Pentium Gold

Processor (Processor socket)

LGA 1700

Processor (Supported processor sockets)

LGA 1700

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

6800 MHz

Memory (Supported memory clock speeds)

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz

Memory (Supported memory types)

DDR5-SDRAM

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

4

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

4

Rear panel I/O ports (DisplayPorts quantity)

2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

2

Rear panel I/O ports (USB 2.0 ports quantity)

2

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel B760

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (Windows operating systems supported)

Windows 10/Windows 11

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Features (Audio chip)

Realtek ALC897

Features (Power source type)

ATX

BIOS (ACPI version)

6.4

BIOS (Clear CMOS jumper)

Yes

BIOS (System Management BIOS (SMBIOS) version)

3.5

Memory (ECC сompatibility)

Non-ECC

Expansion slots (PCI Express x1 (Gen 3.x) slots)

2

Processor (Maximum number of SMP processors)

1

Специальные референции

ean13

4711377154017

MPN

1409372
