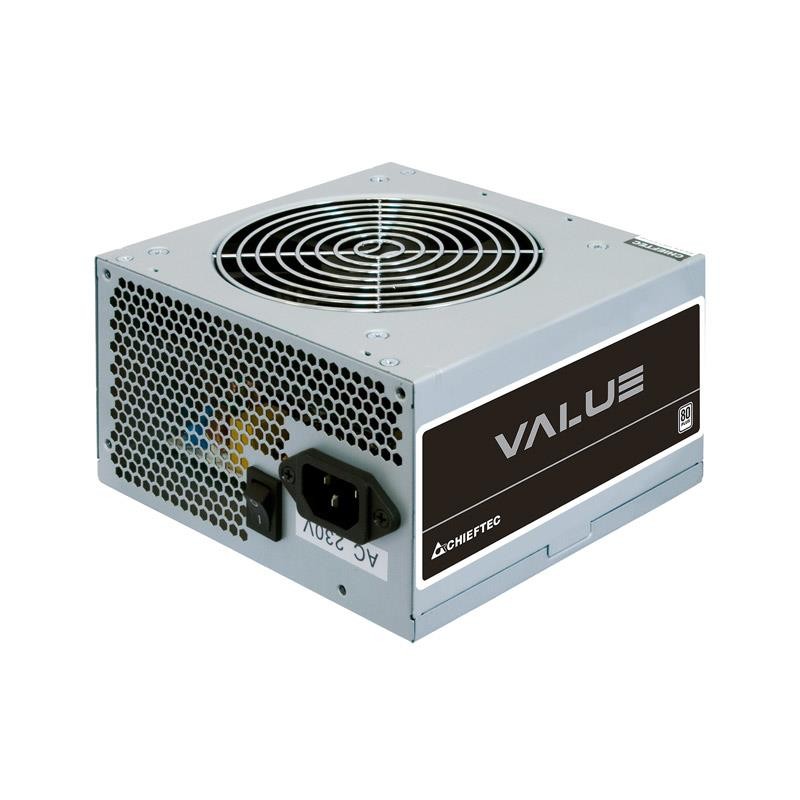

The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it’s the VALUE choice!
Chieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS.
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
87 mm
Logistics data (Harmonized System (HS) code)
84733020
Certificates (Compliance certificates)
RoHS
Design (Product colour)
Silver
Power (AC input frequency)
50 Hz
Power (AC input voltage)
230 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Certificates (Certification)
CE, CB, T V, EAC
Power (Input current)
4 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+3.3V))
130 W
Power (Combined power (+5V))
130 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+3.3V))
22 A
Power (Max output current (+5V))
19 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over voltage/Overload/Short circuit/Under voltage
Power (Total power)
500 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
3
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Performance (80 PLUS certification)
80 PLUS
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.3
Power (Efficiency)
80 %
