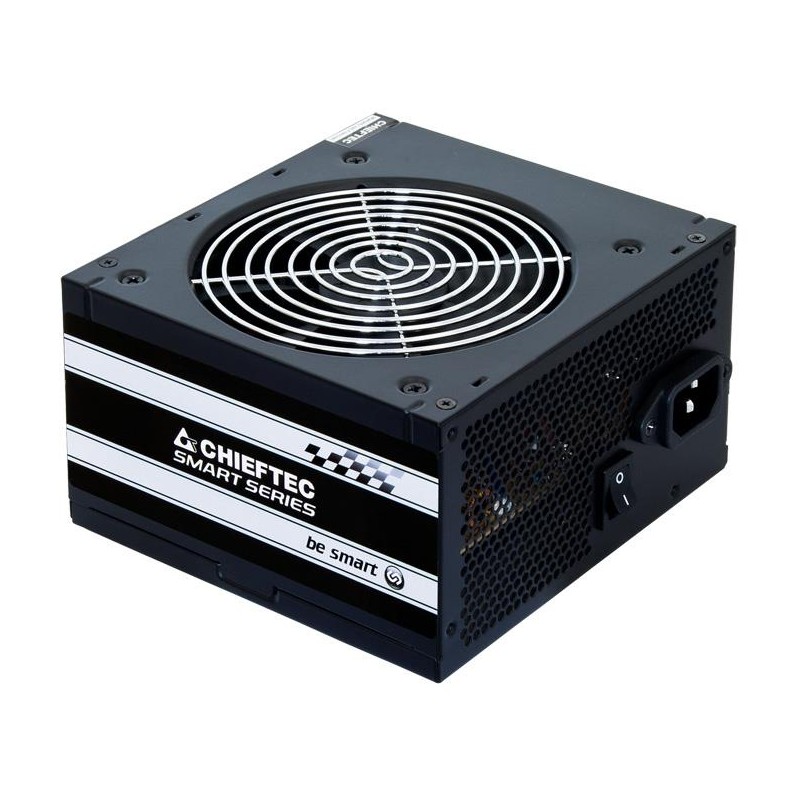

The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
Chieftec Smart GPS-400A8. Total power: 400 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
87 mm
Certificates (Compliance certificates)
RoHS
Design (Product colour)
Black
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
230 V
Power (Input current)
4 A
Design (Fan diameter)
120 mm
Power (Combined power (+3.3V))
120 W
Power (Combined power (+5V))
120 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+3.3V))
22 A
Power (Max output current (+5V))
18 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over voltage/Overload/Short circuit/Under voltage
Power (Total power)
400 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
3
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Performance (80 PLUS certification)
No
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Ports & interfaces (CPU P4 connector (4-pin))
1
Performance (ATX version)
2.3
Ports & interfaces (PCI Express power connectors (6+2 pin))
