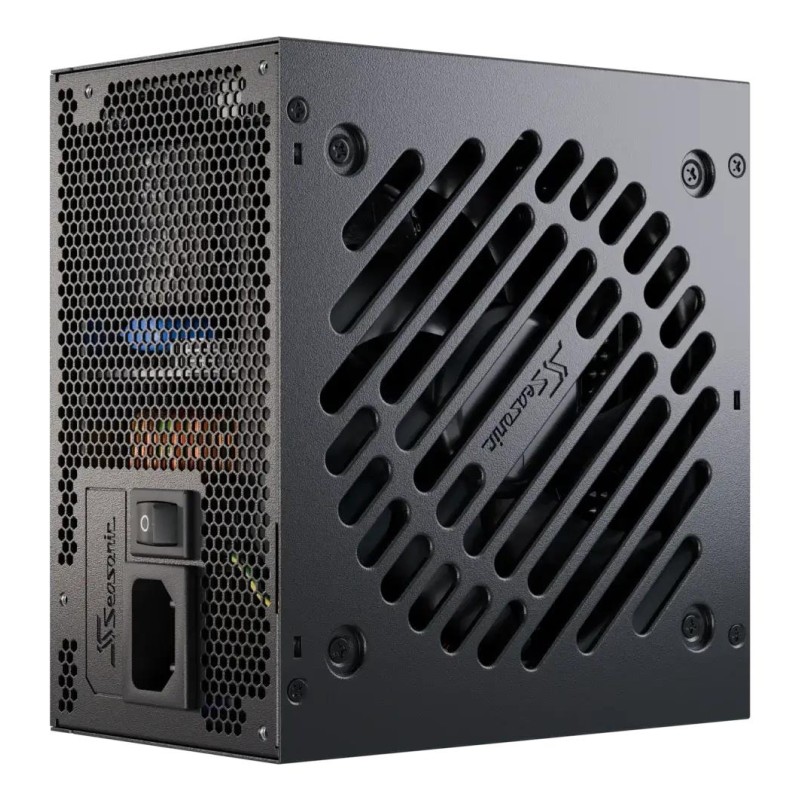

Power Supply|SEASONIC|CORE GX ATX 3.1|650 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|COREGX-650
  • Power Supply|SEASONIC|CORE GX ATX 3.1|650 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|COREGX-650

Power Supply|SEASONIC|CORE GX ATX 3.1|650 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|COREGX-650

CORE GX-650
SEASONIC
650 W | 100 - 240 V | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Package type Box | CORE GX ATX 3.1
95,83 €
С НДС
Доставка 1-5 раб.дня
Количество
Laos
100 шт.

Описание

The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.

New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GXATX 3 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.

By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.

Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.

Спецификации
SEASONIC
CORE GX-650
100 шт.

Дополнительная информация

Сайт продавца
https://seasonic.com/core-gx-atx-3-2024/
Название модели
CORE GX ATX 3.1
Гарантия
24
Код категории
PSU
Высота блока
0.19
Длина блока
0.275
Ширина блока
0.12
Units per Shipping Box
5
Unit Calculated Volume
0.00732 cubm
Unit Calculated Weight
3.17 kg
Summary
Seasonic Nicht kategorisiert. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black,
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
86 mm
Packaging content (Cables included)
AC,CPU,PCIe,Peripheral (Molex) to SATA 3.3,SATA
Packaging data (Package type)
Box
Operational conditions (Operating temperature (T-T))
0 - 50 C
Design (Product colour)
Black
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Certificates (Certification)
BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
Power (Input current)
9 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
648 W
Power (Combined power (+3.3V))
100 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
54 A
Power (Max output current (+3.3V))
20 A
Power (Max output current (+5V))
20 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over total voltage/Over voltage/Short circuit/Under voltage
Power (Total power)
650 W
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
1
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Mean time between failures (MTBF))
100000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Performance (ATX version)
3.1
Ports & interfaces (Number of PATA power connectors)
2

Специальные референции

ean13
4711173878452
MPN
1437004
