MSI's flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.

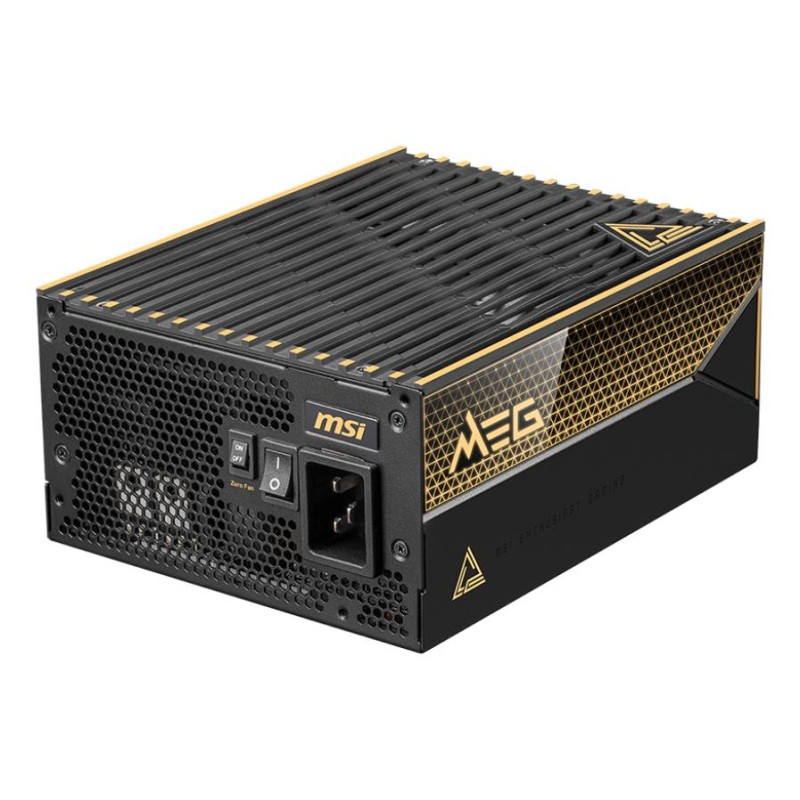

MSI MEG Ai1600T PCIE5. Total power: 1600 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS cer
Weight & dimensions (Width)
190 mm
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
86 mm
Design (Product colour)
Black
Power (AC input voltage)
100 - 240 V
Design (Fan diameter)
135 mm
Power (Combined power (+12V))
1600 W
Power (Combined power (+3.3V))
120 W
Power (Combined power (+5V))
120 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
133.3 A
Power (Max output current (+3.3V))
22 A
Power (Max output current (+5V))
22 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Total power)
1600 W
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power connector)
24-pin ATX
Ports & interfaces (Number of SATA power connectors)
8
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
8
Performance (80 PLUS certification)
80 PLUS Titanium
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Power (Efficiency)
94 %
Ports & interfaces (PCI Express power connectors (6+2 pin))
9
Performance (Bearing technology)
DBB
Ports & interfaces (EPS power connector (8-pin))
No
Ports & interfaces (EPS power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (16-pin))
