The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today's computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation.

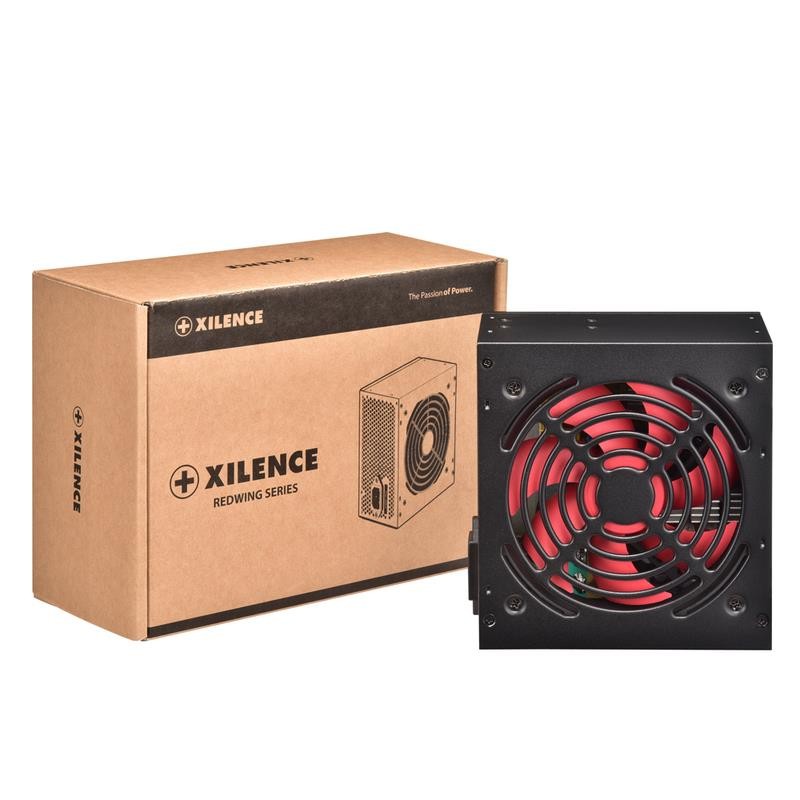

Xilence Performance A+ XN054. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply
Packaging data (Package width)
225 mm
Packaging data (Package depth)
165 mm
Packaging data (Package height)
100 mm
Packaging data (Package weight)
1840 g
Packaging data (Package type)
Box
Certificates (Compliance certificates)
RoHS/WEEE
Design (Product colour)
Black
Power (AC input frequency)
50 Hz
Power (AC input voltage)
200 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Power (Input current)
8 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
648 W
Power (Combined power (+3.3V))
120 W
Power (Combined power (+5V))
120 W
Power (Max output current (+12V))
54 A
Power (Max output current (+3.3V))
24 A
Power (Max output current (+5V))
18 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.5 A
Power (Power protection features)
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power)
700 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
450 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Passive
Ports & interfaces (CPU P4 connector (4-pin))
1
Ports & interfaces (PCI Express power connectors (6-pin))
1
Performance (ATX version)
2.31
Ports & interfaces (PCI Express power connectors (6+2 pin))
1
Performance (Bearing technology)
FDB
Design (Fan location)
Top
Ports & interfaces (CPU power cable length)
550 mm
Ports & interfaces (PCI Express power cable length)
500 mm
Ports & interfaces (PCI Express connector)
Yes
Ports & interfaces (ATX power connector (20+4 pin))
