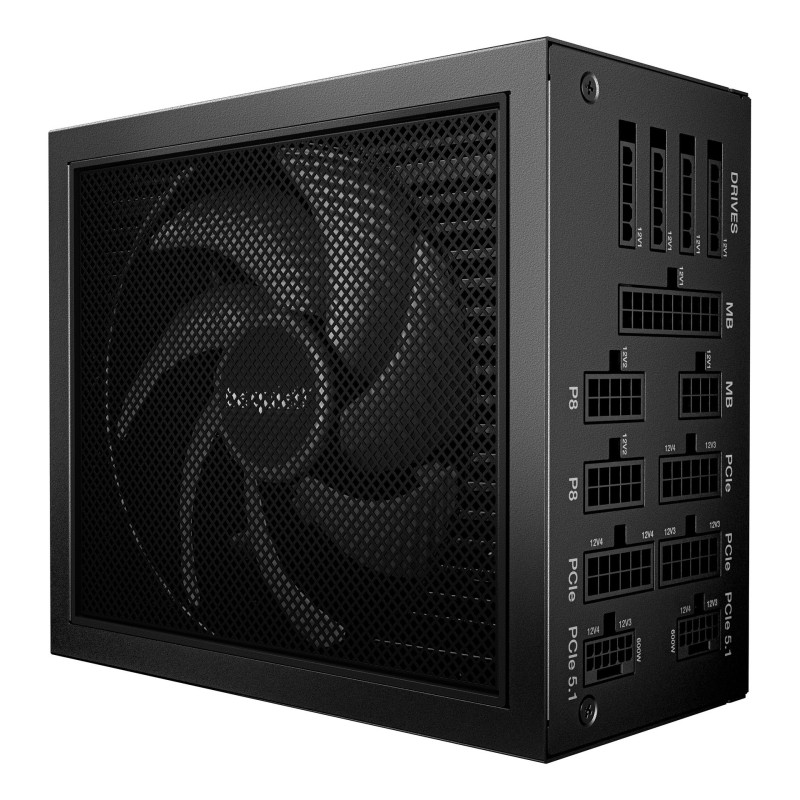

Power Supply|BE QUIET|ATX|PC|100 - 240 V|1200 W|BP021EU

Дополнительная информация

Гарантия

24

Код категории

PSU

Units per Shipping Box

1

Unit Calculated Volume

0.01 cubm

Unit Calculated Weight

3.7 kg

Summary

be quiet! Dark Power 14 1200 W - 80 Plus Titanium. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1300 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purp

Weight & dimensions (Width)

150 mm

Weight & dimensions (Depth)

175 mm

Weight & dimensions (Height)

86 mm

Weight & dimensions (Weight)

2300 g

Packaging data (Package width)

230 mm

Packaging data (Package depth)

126 mm

Packaging data (Package height)

355 mm

Packaging data (Package weight)

3700 g

Certificates (Compliance certificates)

CB/cTUVus/Federal Communications Commission (FCC)/RoHS/T V mark/UKCA/WEEE

Operational conditions (Operating temperature (T-T))

0 - 40 C

Logistics data (Shipping (inner) case height)

260 mm

Logistics data (Shipping (inner) case length)

528 mm

Logistics data (Shipping (inner) case width)

368 mm

Design (Product colour)

Black

Power (AC input frequency)

50/60 Hz

Power (AC input voltage)

100 - 240 V

Design (Cooling type)

Active

Design (Number of fans)

1 fan(s)

Packaging data (Manual)

Yes

Performance (Noise level)

21.1 dB

Design (Fan diameter)

135 mm

Logistics data (Products per shipping (inner) case)

4 pc(s)

Design (On/off switch)

Yes

Power (Combined power (+12V))

1200 W

Power (Combined power (+3.3V))

120 W

Power (Combined power (+5V))

120 W

Power (Max output current (+3.3V))

25 A

Power (Max output current (+5V))

24 A

Power (Max output current (+5Vsb))

3 A

Power (Max output current (-12V))

0.5 A

Power (Power protection features)

Over current/Over voltage/Overheating/Overload/Short circuit/Surge & inrush protection (SIP)/Under voltage

Power (Total power)

1200 W

Ports & interfaces (Cabling type)

Fully-Modular

Ports & interfaces (Motherboard power cable length)

600 mm

Ports & interfaces (Motherboard power connector)

20+4 pin ATX

Ports & interfaces (Peripheral (Molex) power cable length)

1050/900 mm

Ports & interfaces (Peripheral (Molex) power connectors (4-pin))

2

Ports & interfaces (SATA power cable length)

1050/600/750/900 mm

Performance (80 PLUS certification)

80 PLUS Titanium

Performance (Mean time between failures (MTBF))

100000 h

Performance (Power supply unit (PSU) form factor)

ATX

Performance (Purpose)

PC

Power (Peak power)

1300 W

Performance (ATX version)

3.1

Power (Efficiency)

93.1 %

Ports & interfaces (CPU power connector (4+4 pin))

Yes

Ports & interfaces (PCI Express power connectors (6+2 pin))

4

Performance (Bearing technology)

FDB

Technical details (Sustainability certificates)

ENERGY STAR/ErP/Triman

Performance (EPS version)

2.92

Design (Fan speed)

0 - 2100 RPM

Power (Maximum input current (@110V))

10 A

Power (Maximum input current (@220V))

5 A

Ports & interfaces (CPU power cable length)

700 mm

Ports & interfaces (EPS power connector (8-pin))

Yes

Ports & interfaces (PCI Express power cable length)

600 mm

Power (Hold time)

19.5 ms

Power (Power factor)

0.98

Ports & interfaces (PCI Express connector)

Yes

Ports & interfaces (ATX power connector (20+4 pin))

Yes

Ports & interfaces (EPS power connector (4+4 pin))

Yes

Power (Max output current (+12V1))

33 A

Power (Max output current (+12V2))

33 A

Other features (Screws included)

Yes

Ports & interfaces (PCI Express power connectors (12-pin))

2

Power (Number of +12V rail(s))

4

Packaging data (Manual languages)

English/French/German/Italian/Japanese/Polish/Russian/Simplified Chinese/Spanish/Thai/Ukrainian

Other features (Cable ties included)

Yes

Power (Max output current (+12V3))

45 A

Power (Max output current (+12V4))

45 A

Logistics data (Shipping (inner) case net weight)

20140 g

Ports & interfaces (Number of SATA power cables)

13

Design (On/off fan switch)

Yes

Специальные референции

ean13

4260052192030

MPN

1450705
