The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!

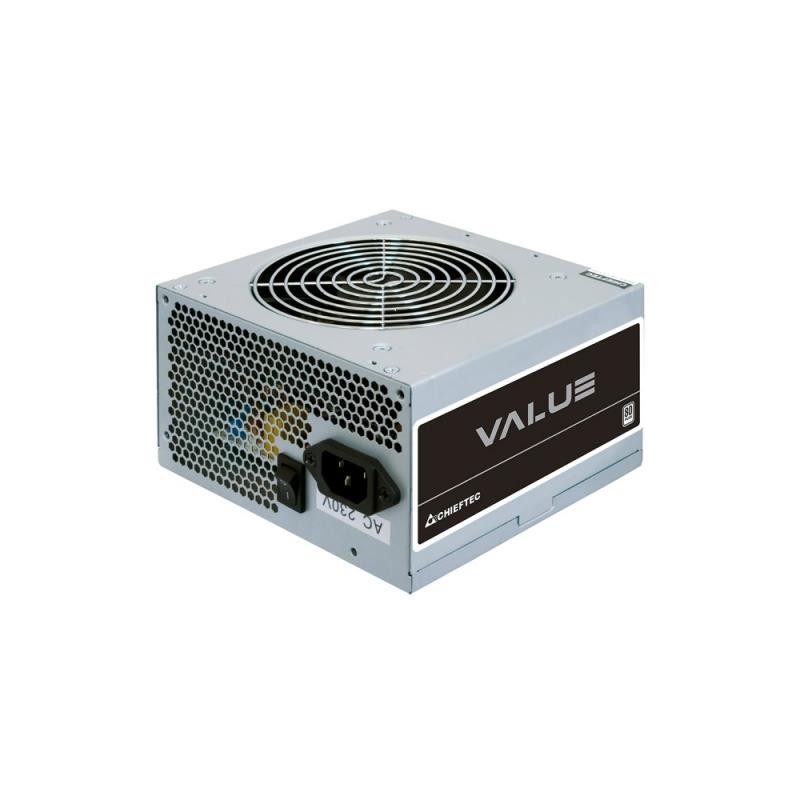

Chieftec Value APB-700B8. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,550 mm. Purpose: PC/Server, Power s
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
87 mm
Weight & dimensions (Weight)
1420 g
Packaging data (Package weight)
1570 g
Logistics data (Harmonized System (HS) code)
84733020
Certificates (Compliance certificates)
CE
Design (Product colour)
Silver
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
200 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Certificates (Certification)
CE, CB, EAC, T V
Power (Input current)
5 A
Design (Fan diameter)
120 mm
Power (Combined power (+12V))
648 W
Power (Combined power (+3.3V))
130 W
Power (Combined power (+5V))
130 W
Power (Max output current (+3.3V))
22 A
Power (Max output current (+5V))
22 A
Power (Power protection features)
Over voltage/Overheating/Overload/Short circuit/Under power/Under voltage
Power (Total power)
700 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
550 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
4
Ports & interfaces (Peripheral (Molex) power cable length)
150/500 mm
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Ports & interfaces (SATA power cable length)
150/550 mm
Performance (80 PLUS certification)
80 PLUS
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC/Server
Technical details (Sustainability compliance)
Yes
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.3
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Ports & interfaces (CPU power cable length)
500 mm
Ports & interfaces (PCI Express power cable length)
500 mm
Power (Power factor)
0.9
Ports & interfaces (Floppy drive power connector)
1
Ports & interfaces (EPS power connector (4+4 pin))
