750 W | 100 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Weight 2.34 kg | Package type Box | UD750GM PG5 ICE
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

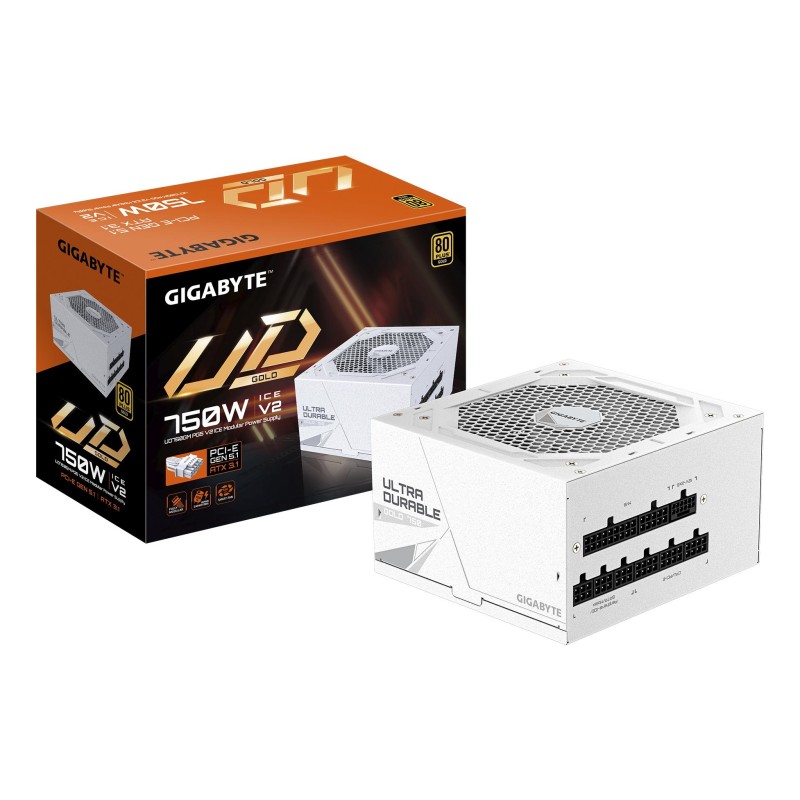

GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
2340 g
Packaging data (Package width)
618 mm
Packaging data (Package depth)
269 mm
Packaging data (Package height)
211 mm
Packaging data (Package weight)
2500 g
Packaging data (Package type)
Box
Design (Product colour)
White
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Power (Input current)
12 - 6.5 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
750 W
Power (Combined power (+3.3V))
105 W
Power (Combined power (+5V))
105 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
62.5 A
Power (Max output current (+3.3V))
20 A
Power (Max output current (+5V))
20 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power)
750 W
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power cable length)
610 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
8
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Mean time between failures (MTBF))
100000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Logistics data (Warranty period)
5 year(s)
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
3.1
Power (Efficiency)
90 %
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
4
Performance (Bearing technology)
HYB
Ports & interfaces (CPU power cable length)
650 mm
Ports & interfaces (PCI Express power cable length)
600 mm
Power (Hold time)
16 ms
Power (Power factor)
0.9
Ports & interfaces (Floppy drive power connector)
1
Ports & interfaces (Number of EPS connectors)
2
Ports & interfaces (PCI Express connector)
Yes
Ports & interfaces (PCI Express power connectors (12+4 pin))
