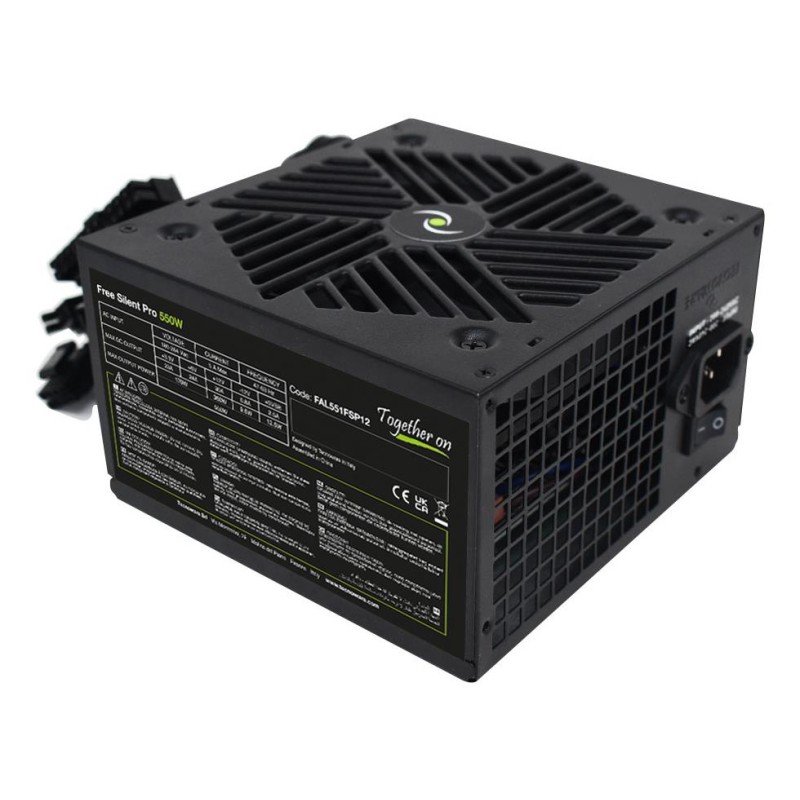

Internal power supply for personal computer, 550W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.
Tecnoware Free Silent PRO 550. Total power: 550 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power s
Weight & dimensions (Width)
140 mm
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
1000 g
Packaging data (Package type)
Box
Certificates (Compliance certificates)
CE/RoHS
Operational conditions (Operating temperature (T-T))
0 - 40 C
Operational conditions (Storage temperature (T-T))
-15 - 40 C
Design (Product colour)
Black
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
180 - 264 V
Design (Number of fans)
1 fan(s)
Power (Input current)
5 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
360 W
Power (Combined power (+3.3V))
170 W
Power (Combined power (+5V))
170 W
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
9.6 W
Power (Max output current (+12V))
30 A
Power (Max output current (+3.3V))
23 A
Power (Max output current (+5V))
24 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.8 A
Power (Power protection features)
Overload/Short circuit/Surge protection
Power (Total power)
550 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
500 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
4
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Performance (80 PLUS certification)
No
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.31
Power (Efficiency)
85 %
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
1
Ports & interfaces (CPU power cable length)
550 mm
Ports & interfaces (PCI Express power cable length)
500 mm
Power (Power factor)
0.9
Ports & interfaces (ATX power connector (20+4 pin))
