The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today's computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation.
Product Features - Powerful: Optimal performance in every situation - Whisper-Silent Cooling: 1x 120mm fan - Reliable: Maximum stability at all time - The following safety features: OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP ( Short Circuit Protection) OLP (Over Load Protection)

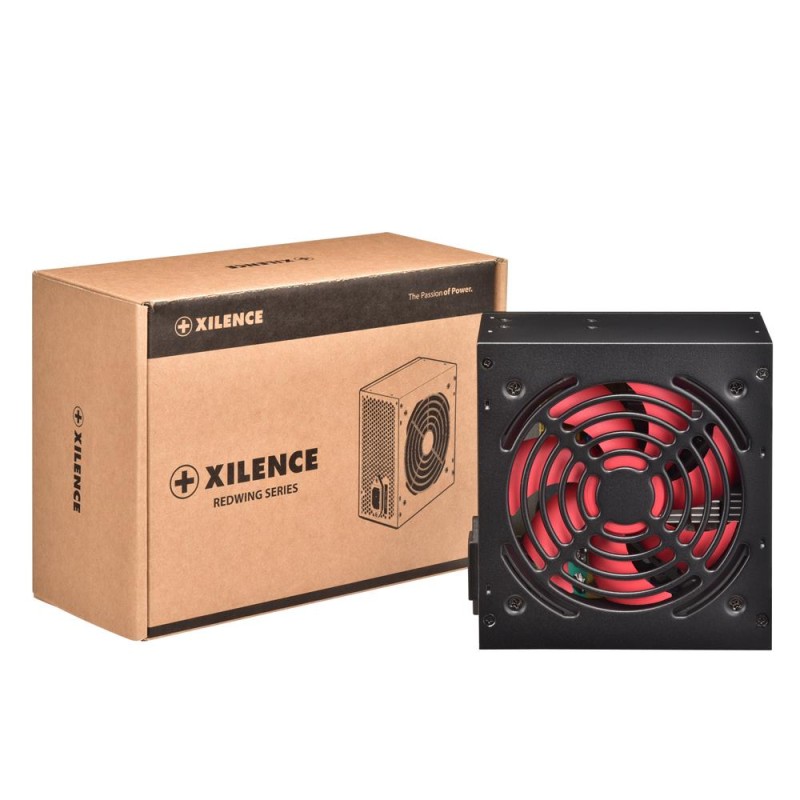

Xilence XP350R7. Total power: 350 W, AC input voltage: 200 - 240 V, Max output current (+3.3V): 14 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 650 mm. Purpose: PC, Power supply unit (PSU) for
Design (Product colour)
Black
Power (AC input voltage)
200 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Design (Fan diameter)
120 mm
Power (Max output current (+12V))
20 A
Power (Max output current (+3.3V))
14 A
Power (Max output current (+5V))
15 A
Power (Max output current (+5Vsb))
2 A
Power (Max output current (-12V))
0.5 A
Power (Power protection features)
Over voltage/Overload/Short circuit/Under voltage
Power (Total power)
350 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
450 mm
Ports & interfaces (Motherboard power connector)
24-pin ATX
Ports & interfaces (Number of SATA power connectors)
1
Ports & interfaces (Peripheral (Molex) power cable length)
650 mm
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
1
Ports & interfaces (SATA power cable length)
650 mm
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Ports & interfaces (CPU P4 connector (4-pin))
1
Design (Fan location)
Top
Ports & interfaces (ATX power connector (20+4 pin))
