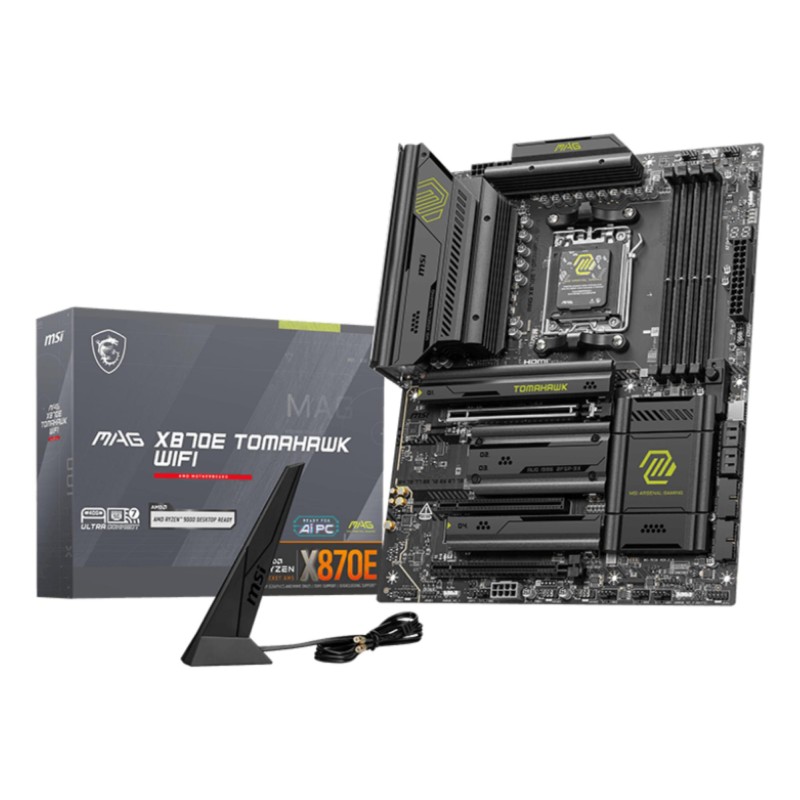

Mainboard|MSI|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|3

Код MAG X870E TOMAHAWK WIFI

Марка MSI

310,18 €

С НДС

Доставка до 30 дней

Количество

Tellimisel

Описание
Спецификации

Описание

Msi X870 Tomahawk wifi title
MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

MAG msi arsenal gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Спецификации

Марка MSI

Код MAG X870E TOMAHAWK WIFI

Дополнительная информация

Сайт продавца: https://www.msi.com/Motherboard/MAG-X870E-TOMAHAWK-WIFI
Гарантия: 36
Модель: MAG X870E TOMAHAWK WIFI
Код категории: MBA
Высота блока: 0.275
Длина блока: 0.345
Ширина блока: 0.07
Units per Shipping Box: 1
Unit Calculated Volume: 0.006641 cubm
Unit Calculated Weight: 2.25 kg
Summary: MSI MAG X870E TOMAHAWK WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB,
Weight & dimensions (Width): 243.84 mm
Weight & dimensions (Depth): 304.8 mm
Network (Bluetooth): Yes
Network (Bluetooth version): 5.4
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour): Black
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 7 (802.11be)
Features (Component for): PC
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Network (LAN controller): Realtek RTL8126
Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 8400 MHz
Memory (Supported memory clock speeds): 4800/5600/8400 MHz
Memory (Supported memory types): DDR5-SDRAM
Storage controllers (Number of HDDs supported): 4
Storage controllers (Number of storage drives supported): 8
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Number of SATA III connectors): 4
Internal I/O (USB 2.0 connectors): 4
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 4
Rear panel I/O ports (DisplayPorts quantity): 2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (Microphone in): Yes
Rear panel I/O ports (USB 2.0 ports quantity): 4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 2
Network (Ethernet interface type): 5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD X870E
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): ATX
Expansion slots (Number of M.2 (M) slots): 4
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (DisplayPort version): 1.4
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (S/PDIF out port): Yes
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 3
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Processor (Maximum internal memory supported by processor): 256 GB
Internal I/O (Total number of SATA connectors): 4
Features (PC health monitoring): CPU/Fan/Temperature/Voltage
Memory (ECC сompatibility): Non-ECC
Expansion slots (1st M.2 highest PCI Express generation): 5.0
Expansion slots (1st M.2 largest key size): 22110
Expansion slots (2nd M.2 highest PCI Express generation): 5.0
Expansion slots (2nd M.2 largest key size): 2280
Expansion slots (3rd M.2 highest PCI Express generation): 4.0
Expansion slots (3rd M.2 largest key size): 2280
Expansion slots (PCI Express x16 (Gen 3.x) slots): 1
Rear panel I/O ports (USB4 Gen 2x2 ports quantity): 1
Expansion slots (4th M.2 highest PCI Express generation): 4.0
Expansion slots (4th M.2 largest key size): 2280
