Mainboard|ASUS|AMD X870E|SAM5|EATX|Memory DDR5|Memory slots 4|CROSSHAIRX870EEXTREME

Код ROG CROSSHAIR X870E EXTREME

Марка ASUS

1 007,75 €

С НДС

Доставка 1-5 раб.дня

Количество

Laos

Срок доставки 2-5 рабочих дней.: 5 шт.

Описание
Спецификации

Описание

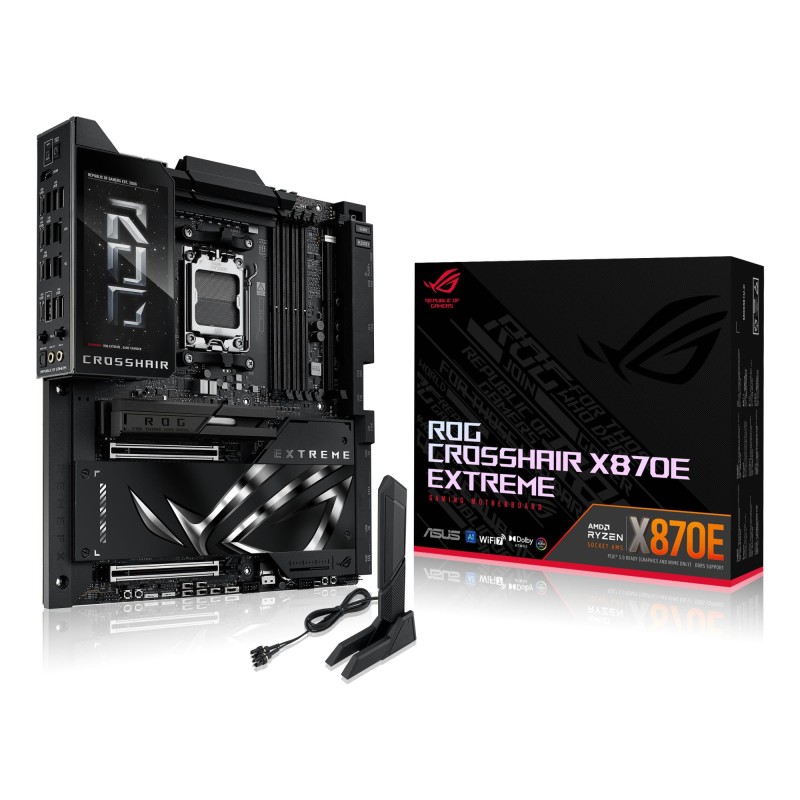

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.

ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.

Спецификации

Марка ASUS

Код ROG CROSSHAIR X870E EXTREME

Срок доставки 2-5 рабочих дней. 5 шт.

Дополнительная информация

Сайт продавца: https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-extreme/
Гарантия: 36
Модель: ROG CROSSHAIR X870E EXTREME
Код категории: MBA
Высота блока: 0.125
Длина блока: 0.385
Ширина блока: 0.325
Units per Shipping Box: 4
Unit Calculated Volume: 0.02512 cubm
Unit Calculated Weight: 5.72 kg
Summary: ASUS ROG CROSSHAIR X870E EXTREME. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256
Weight & dimensions (Width): 305 mm
Weight & dimensions (Depth): 277 mm
Packaging data (Package width): 380 mm
Packaging data (Package depth): 320 mm
Packaging data (Package height): 125 mm
Packaging data (Package weight): 5661 g
Packaging content (Cables included): SATA
Network (Bluetooth): Yes
Network (Bluetooth version): 5.4
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): Wi-Fi 7 (802.11be)
Features (Product colour): Black
Packaging content (Drivers included): Yes
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 7 (802.11be)
Features (Component for): PC
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Expansion slots (PCI Express x16 (Gen 5.x) slots): 2
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of storage drives supported): 10
Storage controllers (Supported storage drive interfaces): M.2,SATA III,SlimSAS
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (Parallel processing technology support): Not supported
Internal I/O (12V power connector): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of chassis fan connectors): 2
Internal I/O (Number of SATA III connectors): 4
Internal I/O (RGB LED pin header): Yes
Internal I/O (USB 2.0 connectors): 2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 2
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (PS/2 ports quantity): 1
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 8
Rear panel I/O ports (WiFi-AP antenna jack): 1
Network (Ethernet interface type): 10 Gigabit Ethernet/5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD X870E
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): extended ATX
Features (Windows operating systems supported): Windows 11
Expansion slots (Number of M.2 (M) slots): 5
Expansion slots (PCI Express x16 (Gen 4.x) slots): 2
BIOS (BIOS memory size): 512 Mbit
BIOS (BIOS type): UEFI AMI
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (S/PDIF out port): Yes
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 2
Features (Audio chip): Realtek ALC4082
Memory (ECC сompatibility): ECC & Non-ECC
Expansion slots (1st M.2 highest PCI Express generation): 5.0
Expansion slots (1st M.2 largest key size): 22110
Expansion slots (2nd M.2 highest PCI Express generation): 5.0
Expansion slots (2nd M.2 largest key size): 2280
Expansion slots (3rd M.2 highest PCI Express generation): 5.0
Expansion slots (3rd M.2 largest key size): 22110
Packaging content (Antenna included): Yes
Internal I/O (USB 3.2 Gen 2x2 connectors): 1
Expansion slots (4th M.2 highest PCI Express generation): 4.0
Expansion slots (4th M.2 largest key size): 22110
Rear panel I/O ports (USB4 Gen 3x2 ports quantity): 2
Expansion slots (5th M.2 highest PCI Express generation): 4.0
Expansion slots (5th M.2 largest key size): 22110
