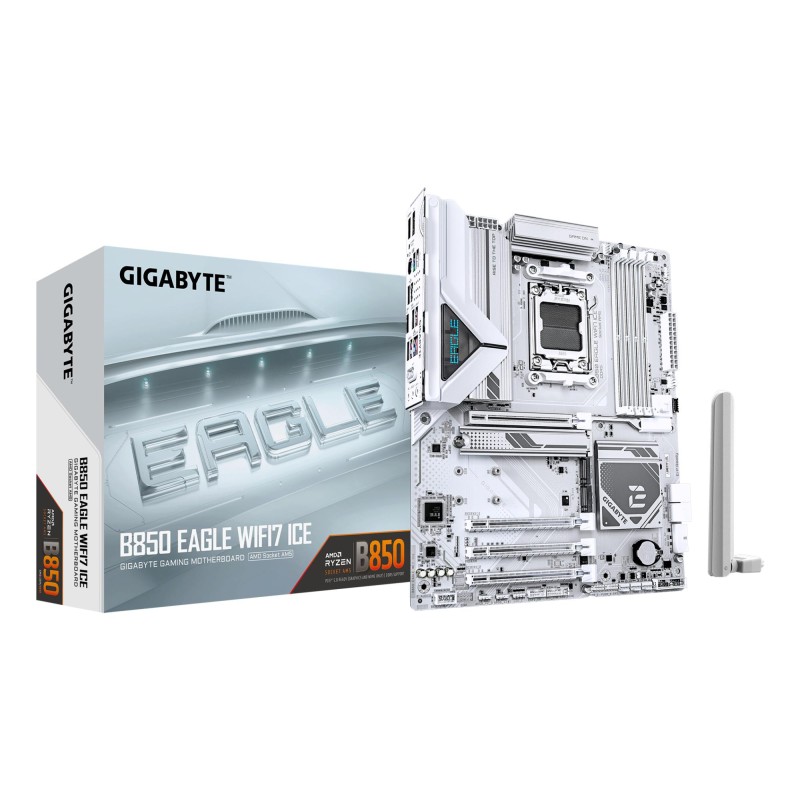

Mainboard|GIGABYTE|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|B850EAGLEWF7ICE

Код B850 EAGLE WF7 ICE

Марка GIGABYTE

185,76 €

С НДС

Доставка 1-5 раб.дня

Количество

Laos

Срок доставки 2-5 рабочих дней.: 13 шт.

Описание
Спецификации

Описание

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

X3D Turbo Mode : Unleash new era gaming performance
DDR5 OC up to 8200MT/s
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital 8+2+2 phases VRM solution
Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage: 3*M.2 slots, including PCIe 5.0 x4
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity: HDMI, Displayport
PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Спецификации

Марка GIGABYTE

Код B850 EAGLE WF7 ICE

Срок доставки 2-5 рабочих дней. 13 шт.

Дополнительная информация

Сайт продавца: https://www.gigabyte.com/
Гарантия: 36
Модель: B850 EAGLE WIFI7 ICE
Код категории: MBA
Высота блока: 0.081
Длина блока: 0.34
Ширина блока: 0.271
Units per Shipping Box: 8
Unit Calculated Volume: 0.01006 cubm
Unit Calculated Weight: 1.91 kg
CnCode: 84733020
Summary: GIGABYTE B850 EAGLE WIFI7 ICE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatib
Battery (Battery technology): Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width): 305 mm
Weight & dimensions (Depth): 244 mm
Weight & dimensions (Height): 35 mm
Packaging data (Package width): 335 mm
Packaging data (Package depth): 270 mm
Packaging data (Package height): 80 mm
Packaging data (Package weight): 1892.5 g
Battery (Battery type): CR2032
Technical details (Warranty period): 3 year(s)
Other features (Weight): 1690 g
Network (Bluetooth): Yes
Network (Bluetooth version): 5.4
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour): White
Logistics data (Products per shipping (inner) case): 1 pc(s)
Packaging content (Batteries included): Yes
Packaging content (Screws included): Yes
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 7 (802.11be)
Features (Component for): PC
Packaging content (Bundled software): Norton Internet Security (OEM version) LAN bandwidth management software
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Network (WLAN controller model): Realtek RTL8922AE
Network (LAN controller): Realtek RTL8125
Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Features (Cooling type): Passive
Battery (Battery weight): 3 g
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 8200 MHz
Memory (Supported memory clock speeds): 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of HDDs supported): 4
Storage controllers (Number of storage drives supported): 7
Storage controllers (Supported storage drive interfaces): M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (Parallel processing technology support): Not supported
Internal I/O (12V power connector): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of chassis fan connectors): 4
Internal I/O (Number of SATA III connectors): 4
Internal I/O (RGB LED pin header): Yes
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (Headphone outputs): 1
Rear panel I/O ports (Line-in): Yes
Rear panel I/O ports (Microphone in): Yes
Rear panel I/O ports (PS/2 ports quantity): 1
Rear panel I/O ports (USB 2.0 ports quantity): 4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 2
Rear panel I/O ports (WiFi-AP antenna jack): 2
Network (Ethernet interface type): 2.5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD B850
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): ATX
Features (Windows operating systems supported): Windows 11 x64
Expansion slots (Number of M.2 (M) slots): 3
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
BIOS (BIOS memory size): 256 Mbit
BIOS (BIOS type): UEFI AMI
Storage controllers (RAID levels): 0/1/10
Storage controllers (RAID support): Yes
Rear panel I/O ports (DisplayPort version): 1.4
Rear panel I/O ports (HDMI version): 1.4
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 2
Features (Audio chip): Realtek ALC897
Features (Power source type): ATX
Graphics (DirectX version): 12.0
Features (PC health monitoring): Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version): 5.0
BIOS (Clear CMOS jumper): Yes
BIOS (Desktop Management Interface (DMI) version): 2.7
BIOS (System Management BIOS (SMBIOS) version): 2.7
Battery (Lithium weight per battery): 0.07 g
Battery (Number of battery cells): 1
Memory (ECC сompatibility): Non-ECC
Memory (Maximum internal memory per slot): 64 GB
Graphics (HDCP): Yes
Graphics (Maximum resolution): 4096 x 2160 pixels
Internal I/O (Number of CPU fan connectors): 2
Internal I/O (Number of RGB LED pin headers): 4
Internal I/O (Number of water pump connectors): 2
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity): 1
Expansion slots (1st M.2 highest PCI Express generation): 5.0
Expansion slots (1st M.2 largest key size): 22110
Expansion slots (2nd M.2 highest PCI Express generation): 4.0
Expansion slots (2nd M.2 largest key size): 22110
Expansion slots (3rd M.2 highest PCI Express generation): 4.0
Expansion slots (3rd M.2 largest key size): 22110
Expansion slots (PCI Express x16 (Gen 3.x) slots): 2
Internal I/O (Number of EPS power connectors (8-pin)): 1
Packaging content (Antenna included): Yes
Internal I/O (Peripheral (Molex) power connectors (4-pin)): 1
