Описание
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors Digital twin 8+2+2 phases VRM solution Dual Channel DDR5：4DIMMs with AMD EXPO Memory Module Support Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4 Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
Спецификации
Код

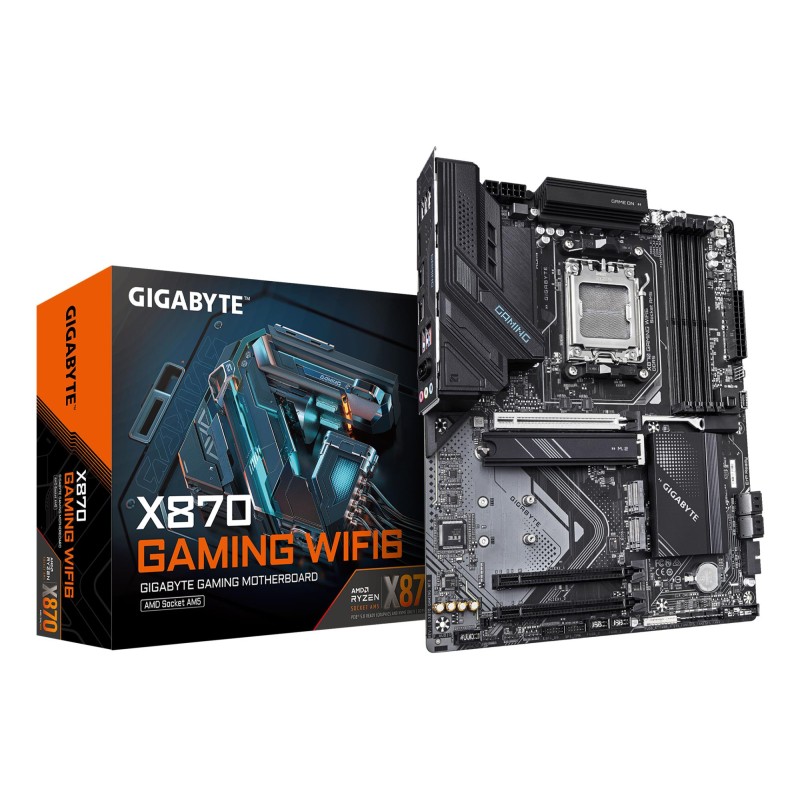

X870 GAMING WF6
Срок доставки 2-5 рабочих дней.
15 шт.
Дополнительная информация
Сайт продавца
https://www.gigabyte.com/
Гарантия
36
Модель
X870 GAMING WIFI6
Код категории
MBA
Высота блока
0.08
Длина блока
0.34
Ширина блока
0.275
Units per Shipping Box
8
Unit Calculated Volume
0.01563 cubm
Unit Calculated Weight
1.9 kg
CnCode
84733020
Summary
GIGABYTE X870 GAMING WIFI6 Motherboard - Supports AMD Ryzen 9000 CPUs, 8+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 6, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series:
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
305 mm
Weight & dimensions (Depth)
244 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
335 mm
Packaging data (Package depth)
270 mm
Packaging data (Package height)
80 mm
Packaging data (Package weight)
2530 g
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Other features (Weight)
2230 g
Network (Bluetooth)
Yes
Network (Bluetooth version)
5.3
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour)
Black
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Logistics data (Country of origin)
China
Processor (Processor manufacturer)
AMD
Network (Top Wi-Fi standard)
Wi-Fi 6 (802.11ax)
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security (OEM version) LAN bandwidth management software
Memory (Maximum internal memory)
256 GB
Memory (Memory channels)
Dual-channel
Network (WLAN controller model)
Realtek RTL8851BE
Expansion slots (PCI Express x16 (Gen 5.x) slots)
1
Battery (Battery weight)
3 g
Processor (Compatible processor series)
AMD Ryzen 7
Processor (Processor socket)
Socket AM5
Processor (Supported processor sockets)
Socket AM5
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory clock speed (max))
8000 MHz
Memory (Supported memory clock speeds)
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
Memory (Supported memory types)
DDR5-SDRAM
Storage controllers (Number of HDDs supported)
7
Storage controllers (Number of storage drives supported)
4
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
4
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Rear panel I/O ports (DisplayPorts quantity)
2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (USB 2.0 ports quantity)
4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
1
Network (Ethernet interface type)
2.5 Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
AMD X870
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
ATX
Features (Windows operating systems supported)
Windows 10 x64/Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
3
BIOS (BIOS memory size)
256 Mbit
BIOS (BIOS type)
UEFI AMI
BIOS (Clear CMOS button)
Yes
Storage controllers (RAID levels)
0/1/10
Storage controllers (RAID support)
Yes
Rear panel I/O ports (S/PDIF out port)
Yes
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
3
Processor (Maximum internal memory supported by processor)
256 GB
Memory (Supported memory module capacities)
12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB
Graphics (DirectX version)
12.0
Internal I/O (Total number of SATA connectors)
4
Features (PC health monitoring)
Fan/Temperature/Voltage
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Internal I/O (USB 3.2 Gen 2x2 connectors)
1
Rear panel I/O ports (USB4 Gen 2x2 ports quantity)
2
Expansion slots (PCI Express x4 slots)
2
Специальные референции
ean13
4719331865399
MPN
1430800
