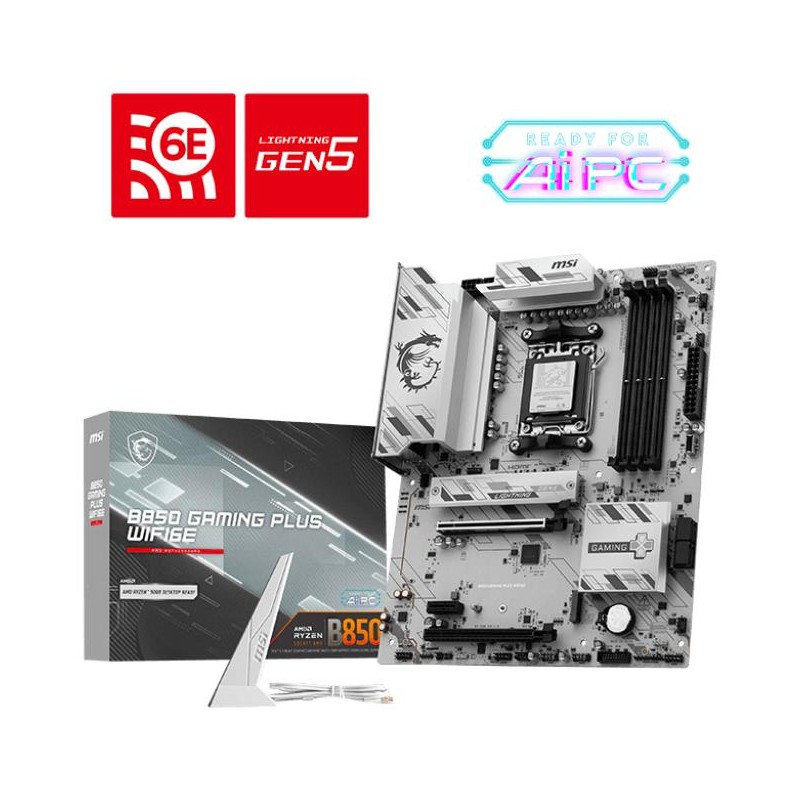

Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|B850GAMINGPLUSWIFI6E

Код B850 GAMING PLUS WIFI6E

Марка MSI

157,94 €

С НДС

Доставка 1-5 раб.дня

Количество

Laos

Срок доставки 2-5 рабочих дней.: 50 шт.

Описание
Спецификации

Описание

B850 GAMING PLUS WIFI6E

The B850 GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

Back-Connect Design

The B850 GAMING PLUS WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.

12+2+1 Duet Rail Power System

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, the B850 GAMING PLUS WIFI PZ is ready to sustain heavy gaming loadings.

Cooling Overview

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 12+2+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
High-speed Connectivity: 2.5G LAN with Wi-Fi 6E Solution - The premium solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, Front USB Type-C
EZ DIY: EZ PCIe Clip II, EZ M.2 Clip II, EZ-Conn Design and EZ Antenna
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Спецификации

Марка MSI

Код B850 GAMING PLUS WIFI6E

Срок доставки 2-5 рабочих дней. 50 шт.

Дополнительная информация

Сайт продавца: https://www.msi.com/Motherboard/B850-GAMING-PLUS-WIFI6E
Гарантия: 36
Модель: B850 GAMING PLUS WIFI6E
Код категории: MBA
Высота блока: 0.07
Длина блока: 0.345
Ширина блока: 0.27
Units per Shipping Box: 10
Unit Calculated Volume: 0.008085 cubm
Unit Calculated Weight: 1.86 kg
CnCode: 84733020
Summary: MSI B850 GAMING PLUS WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB,
Weight & dimensions (Width): 243.84 mm
Weight & dimensions (Depth): 304.8 mm
Network (Bluetooth): Yes
Network (Bluetooth version): 5.3
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Features (Product colour): Black
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 6E (802.11ax)
Features (Component for): PC
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Network (LAN controller): Realtek RTL8125D
Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 8200 MHz
Memory (Supported memory clock speeds): 4800/5600/6400/8200 MHz
Memory (Supported memory types): DDR5-SDRAM
Storage controllers (Number of HDDs supported): 4
Storage controllers (Number of storage drives supported): 7
Storage controllers (Supported storage drive interfaces): M.2,Micro SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Internal I/O (CPU fan connector): Yes
Internal I/O (Number of SATA III connectors): 4
Internal I/O (RGB LED pin header): Yes
Internal I/O (S/PDIF out connector): Yes
Internal I/O (USB 2.0 connectors): 4
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 4
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (USB 2.0 ports quantity): 4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 1
Network (Ethernet interface type): 2.5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD B850
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): ATX
Features (Windows operating systems supported): Windows 11 x64
Expansion slots (Number of M.2 (M) slots): 3
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
BIOS (BIOS type): UEFI AMI
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (DisplayPort version): 1.2
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 1
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 2
Features (Audio chip): Realtek ALC897
Processor (Maximum internal memory supported by processor): 256 GB
Internal I/O (Total number of SATA connectors): 4
BIOS (ACPI version): 6.5
BIOS (System Management BIOS (SMBIOS) version): 3.7
Memory (ECC сompatibility): Non-ECC
Internal I/O (Number of CPU fan connectors): 4
Internal I/O (Number of RGB LED pin headers): 3
Internal I/O (Number of water pump connectors): 1
Expansion slots (1st M.2 highest PCI Express generation): 5.0
Expansion slots (1st M.2 largest key size): 2280
Expansion slots (2nd M.2 highest PCI Express generation): 4.0
Expansion slots (2nd M.2 largest key size): 22110
Expansion slots (3rd M.2 highest PCI Express generation): 4.0
Expansion slots (3rd M.2 largest key size): 2280
Expansion slots (PCI Express x16 (Gen 3.x) slots): 2
