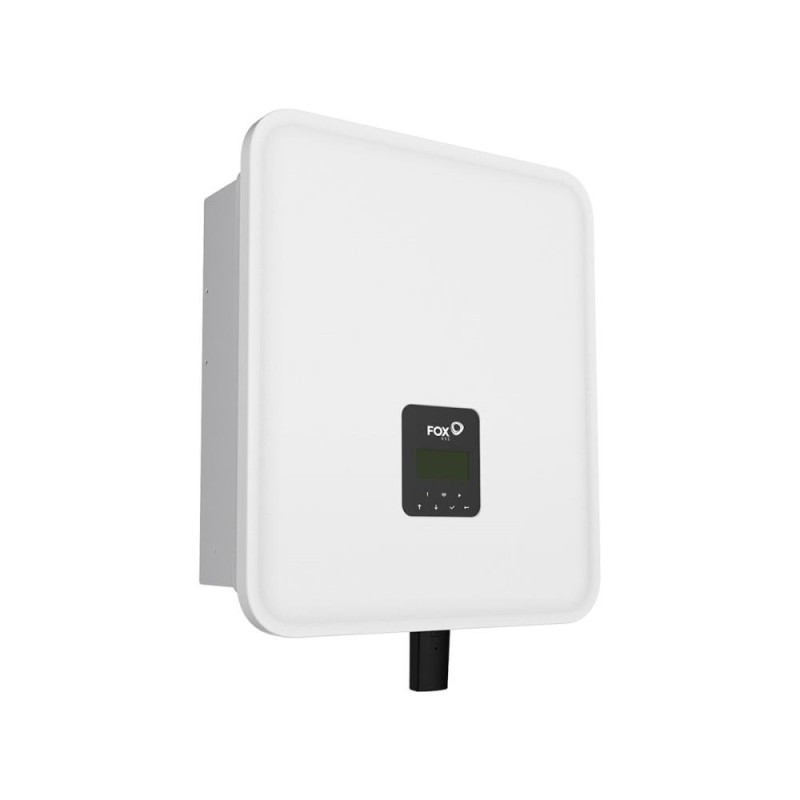

INVERTER HYBRID 3PH 10KW/2MPPT 30-137-10310-00 FOXESS
  • INVERTER HYBRID 3PH 10KW/2MPPT 30-137-10310-00 FOXESS

INVERTER HYBRID 3PH 10KW/2MPPT 30-137-10310-00 FOXESS

30-137-10310-00
FOXESS
3phase | Rated Output 10000W | AC output voltage 400V/230VAC | Max output current 14.5 (per phase) | Number of MPP trackers 2 | Maximum DC input voltage 1000 | Maximum DC input current 26 / 14 | Maximum battery input voltage 480 V | Standby consumption 15 Watts | IP Rating IP65 | Operating temperature range -25 to +60 °C | Dimensions 449x519x198mm | Weight 28 kg
2 178,85 €
KM-ga
Tarneaeg kuni 30 päeva
Kogus
Tellimisel

Kirjeldus

H3-10.0-E
3-Phase hybrid inverter

Harness the power of the sun day and night with the ground-breaking range of Hybrid & AC inverters from FOXESS.
Full of advanced features and compatible with our very own range of high-voltage batteries, the hybrid range from FOXESS. It is a new class of Inverter.

Easily expand your system by just add extra batteries. There are three battery series you can choose, which enables a storage capacity of up to 28.21 Kwh. There are Max. 10 storage inverters can be connected  in parallel to allow you enlarge the system scale base on different installation requirement.

Üldine informatsioon
FOXESS
30-137-10310-00

Lisainfo

Müüja koduleht
www.fox-ess.com/3-phase/
Mõõtmed
449x519x198mm
Kaasasolevad tarvikud
WiFi datalogger
Töötemperatuuri vahemik
-25 to +60 C
Garantija
24
IP-reiting
IP65
Mudel
H3-10.0-E
Tarbimine ooterežiimis
15 Watts
Category Code
SIV
Unit Box Height
0.385
Unit Box Length
0.625
Unit Box Width
0.525
Units per Shipping Box
1
Unit Calculated Volume
0.1263 cubm
Product Net Weight
28 kg
Unit Calculated Weight
33.5 kg
Phase
3phase
Rated output power
10000W
AC output voltage
400V/230VAC
Max output current
14.5 (per phase)
Number of MPP trackers
2
Maximum DC input voltage
1000
PV operating voltage range
160-950
Maximum DC input current
26 / 14
Monitoring module
WiFi, LAN, 4G, GPRS (Optional)
Compatible batteries
180-600V, Lithium
Maximum battery input voltage
480 V
Maximum battery input current
26 A

Eriviited

MPN
1392797
