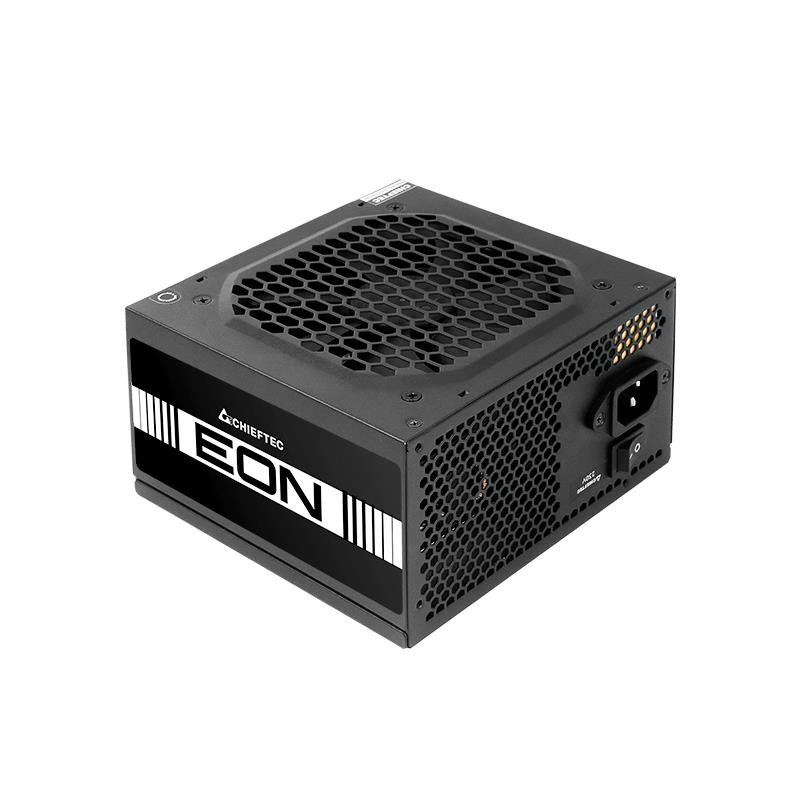

Power Supply|CHIEFTEC|600 Watts|Efficiency 80 PLUS|PFC Active|ZPU-600S

Lisätiedot

Vendor Homepage

https://www.chieftec.eu/products-detail/566/EON_Series

Model name

ZPU-600S

Garantija

24

Category Code

PSU

Unit Box Height

0.18

Unit Box Length

0.255

Unit Box Width

0.1

Units per Shipping Box

1

Unit Calculated Volume

0.00459 cubm

Unit Calculated Weight

1.64 kg

Summary

Chieftec EON . Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (

Weight & dimensions (Width)

150 mm

Weight & dimensions (Depth)

140 mm

Weight & dimensions (Height)

86 mm

Weight & dimensions (Weight)

1340 g

Design (Product colour)

Black

Power (AC input frequency)

50 Hz

Power (AC input voltage)

200 - 240 V

Power (Input current)

4.5 A

Design (Fan diameter)

120 mm

Design (On/off switch)

Yes

Power (Combined power (+5Vsb))

12.5 W

Power (Combined power (-12V))

4.8 W

Power (Max output current (+3.3V))

20 A

Power (Max output current (+5V))

20 A

Power (Max output current (+5Vsb))

2.5 A

Power (Max output current (-12V))

0.4 A

Power (Power protection features)

Short circuit/Surge and inrush/Surge protection

Power (Total power)

600 W

Ports & interfaces (Cabling type)

Non-Modular

Ports & interfaces (Motherboard power cable length)

650 mm

Ports & interfaces (Motherboard power connector)

20+4 pin ATX

Ports & interfaces (Number of SATA power connectors)

4

Ports & interfaces (Peripheral (Molex) power cable length)

450/600/750 mm

Ports & interfaces (SATA power cable length)

450/600/750 mm

Performance (80 PLUS certification)

80 PLUS

Performance (Power supply unit (PSU) form factor)

ATX

Performance (Purpose)

PC/Server

Performance (Supported motherboard form factors)

ATX

Logistics data (Warranty period)

2 year(s)

Power (Power Factor Correction (PFC) type)

Active

Performance (ATX version)

2.3

Ports & interfaces (CPU power connector (4+4 pin))

Yes

Ports & interfaces (PCI Express power connectors (6+2 pin))

2

Power (Maximum input current (@220V))

4.5 A

Power (Power factor)

0.9

Ports & interfaces (ATX power connector (20+4 pin))

Yes

Ports & interfaces (EPS power connector (4+4 pin))

Yes

Power (Max output current (+12V1))

45 A

Tilausviitteet

EAN13

753263078438

Valmistajan tuotenumero (MPN)

1401198
