753263078445Power Supply CHIEFTEC 700 Watts Efficiency 80 PLUS PFC Active ZPU-700S
  • 753263078445Power Supply CHIEFTEC 700 Watts Efficiency 80 PLUS PFC Active ZPU-700S

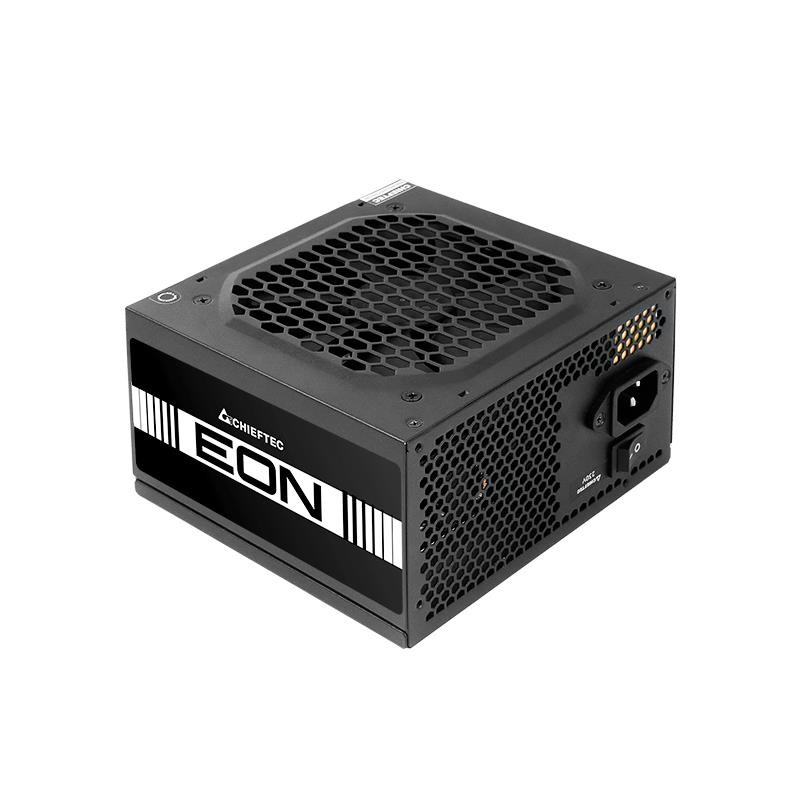

Power Supply CHIEFTEC 700 Watts Efficiency 80 PLUS PFC Active ZPU-700S

ZPU-700S
CHIEFTEC
700 W, 200 - 240 V, 80 PLUS certification 80 PLUS, Supported motherboard form factors ATX, PC/Server, ATX, Fan diameter 120 mm, Weight 1.4 kg, ZPU-700S
48,05 €
Sisältää alv:n
Monthly payment from 8.17€
Määrä
Laos
50 Tuotteet

Kuvaus

The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly
competitive pricing, equipped with silent 120mm fans.

The power supplies are fully built from steel, coated in elegant black, and
equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.

Tuotetiedot
CHIEFTEC
ZPU-700S
50 Tuotteet

Lisätiedot

Vendor Homepage
https://www.chieftec.eu/products-detail/566/EON_Series/568/ZPU-700S
Model name
ZPU-700S
Garantija
24
Category Code
PSU
Unit Box Height
0.18
Unit Box Length
0.255
Unit Box Width
0.1
Units per Shipping Box
1
Unit Calculated Volume
0.00459 cubm
Unit Calculated Weight
1.71 kg
Summary
Chieftec EON . Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
1400 g
Design (Product colour)
Black
Power (AC input frequency)
50 Hz
Power (AC input voltage)
200 - 240 V
Power (Input current)
5.5 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (-12V))
4.8 W
Power (Max output current (+3.3V))
20 A
Power (Max output current (+5V))
20 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.4 A
Power (Power protection features)
Short circuit/Surge and inrush/Surge protection
Power (Total power)
700 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power cable length)
650 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
4
Ports & interfaces (Peripheral (Molex) power cable length)
450/600/750 mm
Ports & interfaces (SATA power cable length)
450/600/750 mm
Performance (80 PLUS certification)
80 PLUS
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC/Server
Performance (Supported motherboard form factors)
ATX
Logistics data (Warranty period)
2 year(s)
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.3
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Power (Maximum input current (@220V))
5.5 A
Power (Power factor)
0.9
Ports & interfaces (ATX power connector (20+4 pin))
Yes
Ports & interfaces (EPS power connector (4+4 pin))
Yes
Power (Max output current (+12V1))
53 A

Tilausviitteet

EAN13
753263078445
Valmistajan tuotenumero (MPN)
1401194
