4710713239388CASE PSU ATX 750W/CTG-750C CHIEFTEC
  • 4710713239388CASE PSU ATX 750W/CTG-750C CHIEFTEC

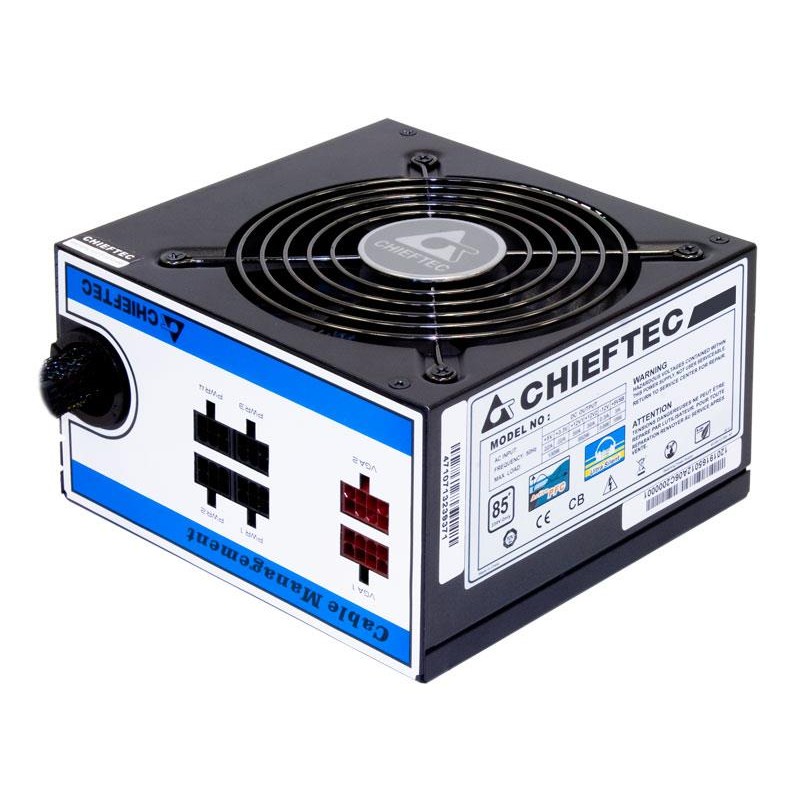

CASE PSU ATX 750W/CTG-750C CHIEFTEC

CTG-750C
CHIEFTEC
750 W, 230 V, Efficiency 85 %, 80 PLUS certification 80 PLUS, PC, ATX, Fan diameter 120 mm, Package type Box
67,76 €
Sisältää alv:n
Monthly payment from 5.76€
Määrä
Laos
100 Tuotteet

Kuvaus

this popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency.

Tuotetiedot
CHIEFTEC
CTG-750C
100 Tuotteet

Lisätiedot

Vendor Homepage
https://www.chieftec.eu/en/psus/a-80-series/ctg-750c.html
Garantija
24
Category Code
PSU
Unit Box Height
0.1
Unit Box Length
0.25
Unit Box Width
0.19
Units per Shipping Box
1
Unit Calculated Volume
0.00475 cubm
Unit Calculated Weight
2.35 kg
Summary
Chieftec CTG-750C. Total power: 750 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
87 mm
Packaging data (Package type)
Box
Logistics data (Harmonized System (HS) code)
84733020
Certificates (Compliance certificates)
RoHS
Design (Product colour)
Black
Power (AC input frequency)
50 Hz
Power (AC input voltage)
230 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Certificates (Certification)
CE, CB, FCC
Power (Input current)
6 A
Design (Fan diameter)
120 mm
Power (Combined power (+12V))
648 W
Power (Combined power (+3.3V))
130 W
Power (Combined power (+5V))
130 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+3.3V))
22 A
Power (Max output current (+5V))
22 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
Power (Total power)
750 W
Ports & interfaces (Cabling type)
Semi-Modular
Ports & interfaces (Motherboard power connector)
24-pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
4
Performance (80 PLUS certification)
80 PLUS
Performance (Mean time between failures (MTBF))
100000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Ports & interfaces (CPU P4 connector (4-pin))
1
Performance (ATX version)
2.3
Power (Efficiency)
85 %
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Design (Fan location)
Top
Ports & interfaces (EPS power connector (8-pin))
Yes
Power (Power factor)
0.9
Ports & interfaces (Floppy drive power connector)
2
Power (Max output current (+12V1))
35 A
Power (Max output current (+12V2))
35 A
Ports & interfaces (CPU power connectors (8-pin))
1

Tilausviitteet

EAN13
4710713239388
Valmistajan tuotenumero (MPN)
1207607
