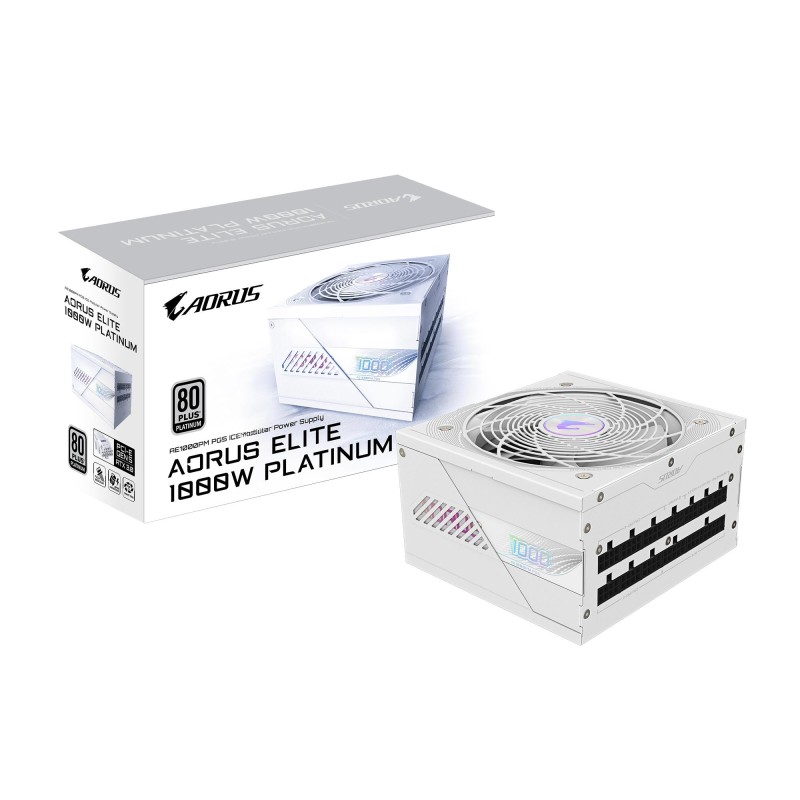

4719331554651Power Supply|GIGABYTE|GP-AE1000PM PG5 ICE|1000 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours|GP-AE1000PMPG5ICE
  • 4719331554651Power Supply|GIGABYTE|GP-AE1000PM PG5 ICE|1000 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours|GP-AE1000PMPG5ICE

Power Supply|GIGABYTE|GP-AE1000PM PG5 ICE|1000 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours|GP-AE1000PMPG5ICE

GP-AE1000PMPG5ICE
GIGABYTE
1000 W | 100 - 240 V | Efficiency 92 % | 80 PLUS certification 80 PLUS Platinum | PC | ATX | Fan diameter 120 mm | Weight 3.1 kg | Package type Box | GP-AE1000PM PG5 ICE
164,27 €
Sisältää alv:n
Määrä
Laos
30 Tuotteet

Kuvaus

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

  • ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
  • 80 PLUS Platinum certified
  • 100% Japanese capacitors
  • 120mm smart Fluid Dynamic Bearing (FDB) fan
  • Compact design
  • Fully modular design
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 10 years warranty
Tuotetiedot
GIGABYTE
GP-AE1000PMPG5ICE
30 Tuotteet

Lisätiedot

Vendor Homepage
https://www.gigabyte.com/uk/Power-Supply/GP-AE1000PM-PG5-ICE-rev-10 kf
Model name
GP-AE1000PM PG5 ICE
Garantija
36
Category Code
PSU
Unit Box Height
0.205
Unit Box Length
0.34
Unit Box Width
0.12
Units per Shipping Box
5
Unit Calculated Volume
0.01086 cubm
Unit Calculated Weight
3.73 kg
CnCode
85044095
Summary
GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
3102 g
Packaging data (Package width)
340 mm
Packaging data (Package depth)
206 mm
Packaging data (Package height)
120 mm
Packaging data (Package weight)
3732 g
Packaging data (Package type)
Box
Design (Product colour)
White
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Power (Input current)
15 - 6.5 A
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
999.6 W
Power (Combined power (+3.3V))
125 W
Power (Combined power (+5V))
125 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
83.3 A
Power (Max output current (+3.3V))
25 A
Power (Max output current (+5V))
25 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power)
1000 W
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power cable length)
650 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
4
Performance (80 PLUS certification)
80 PLUS Platinum
Performance (Mean time between failures (MTBF))
100000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Logistics data (Warranty period)
10 year(s)
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
3.1
Power (Efficiency)
92 %
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
6
Performance (Bearing technology)
Ball bearing
Design (Fan location)
Top
Power (Hold time)
16 ms
Power (Power factor)
0.9
Ports & interfaces (Floppy drive power connector)
2
Ports & interfaces (PCI Express connector)
Yes
Power (Power Good signal delay range)
100 - 150 ms
Ports & interfaces (ATX power connector (20+4 pin))
Yes
Ports & interfaces (Floppy disk drive connector)
Yes

Tilausviitteet

EAN13
4719331554651
Valmistajan tuotenumero (MPN)
1424542
