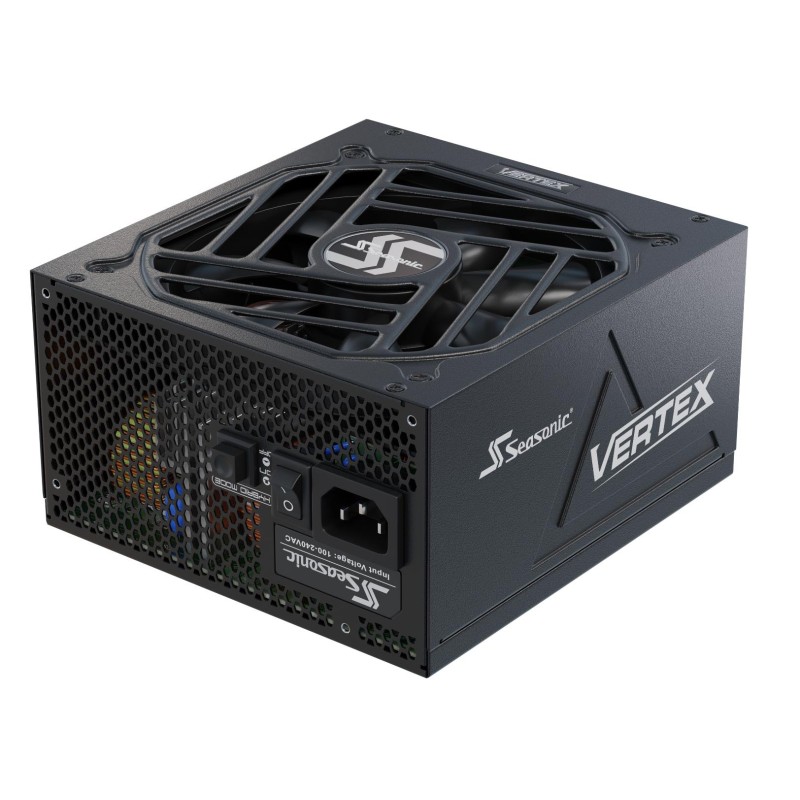

Power Supply|SEASONIC|VERTEX PX|1200 Watts|Efficiency 80 PLUS PLATINIUM|MTBF 100000 hours|VERTEXPX-1200
  • Power Supply|SEASONIC|VERTEX PX|1200 Watts|Efficiency 80 PLUS PLATINIUM|MTBF 100000 hours|VERTEXPX-1200

Power Supply|SEASONIC|VERTEX PX|1200 Watts|Efficiency 80 PLUS PLATINIUM|MTBF 100000 hours|VERTEXPX-1200

VERTEX PX-1200
SEASONIC
1200 W | 100 - 240 V | 80 PLUS certification 80 PLUS Platinum | PC | ATX | Fan diameter 135 mm | Package type Box | VERTEX PX
260,74 €
Sisältää alv:n
Määrä
Tellimisel

Kuvaus

80 PLUS® PLATINUM
The Vertex PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.

ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.

PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

  • Super-High Efficiency, 80 PLUS® Platinum Certified
  • Fully Modular
  • ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
  • Top-Quality 135 mm Fluid Dynamic Bearing Fan
  • Premium Hybrid Fan Control
  • Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]
  • Gold Plated High Current Terminal (MB, CPU and PCIe)
Tuotetiedot
SEASONIC
VERTEX PX-1200

Lisätiedot

Vendor Homepage
https://seasonic.com/vertex-px
Model name
VERTEX PX
Garantija
144
Category Code
PSU
Unit Box Height
0.185
Unit Box Length
0.345
Unit Box Width
0.115
Units per Shipping Box
1
Unit Calculated Volume
0.00734 cubm
Unit Calculated Weight
3.99 kg
Summary
Seasonic Vertex PX-1200. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 470,550,570,700,760,860,950 mm. Purpose:
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
160 mm
Weight & dimensions (Height)
86 mm
Packaging content (Cables included)
CPU,PCIe,Peripheral (Molex),SATA
Packaging data (Package type)
Box
Certificates (Compliance certificates)
REACH/RoHS/WEEE
Operational conditions (Operating temperature (T-T))
0 - 50 C
Design (Product colour)
Black
Power (AC input frequency)
50 - 60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Power (Input current)
15 - 7.5 A
Design (Fan diameter)
135 mm
Power (Combined power (+12V))
1200 W
Power (Combined power (+3.3V))
125 W
Power (Combined power (+5V))
125 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
100 A
Power (Max output current (+3.3V))
25 A
Power (Max output current (+5V))
25 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over power/Over voltage/Short circuit/Under power
Power (Total power)
1200 W
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power cable length)
610 mm
Ports & interfaces (Motherboard power connector)
24-pin ATX
Ports & interfaces (Peripheral (Molex) power cable length)
470/690 mm
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Ports & interfaces (SATA power cable length)
470/550/570/700/760/860/950 mm
Performance (80 PLUS certification)
80 PLUS Platinum
Performance (Mean time between failures (MTBF))
150000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Performance (ATX version)
3.0
Performance (Bearing technology)
FDB
Technical details (Sustainability certificates)
ENERGY STAR
Ports & interfaces (CPU power cable length)
650 mm
Ports & interfaces (EPS power connector (8-pin))
Yes
Ports & interfaces (PCI Express power cable length)
750 mm
Ports & interfaces (ATX power connector (20+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (16-pin))
1

Tilausviitteet

EAN13
4711173877769
Valmistajan tuotenumero (MPN)
1427502
