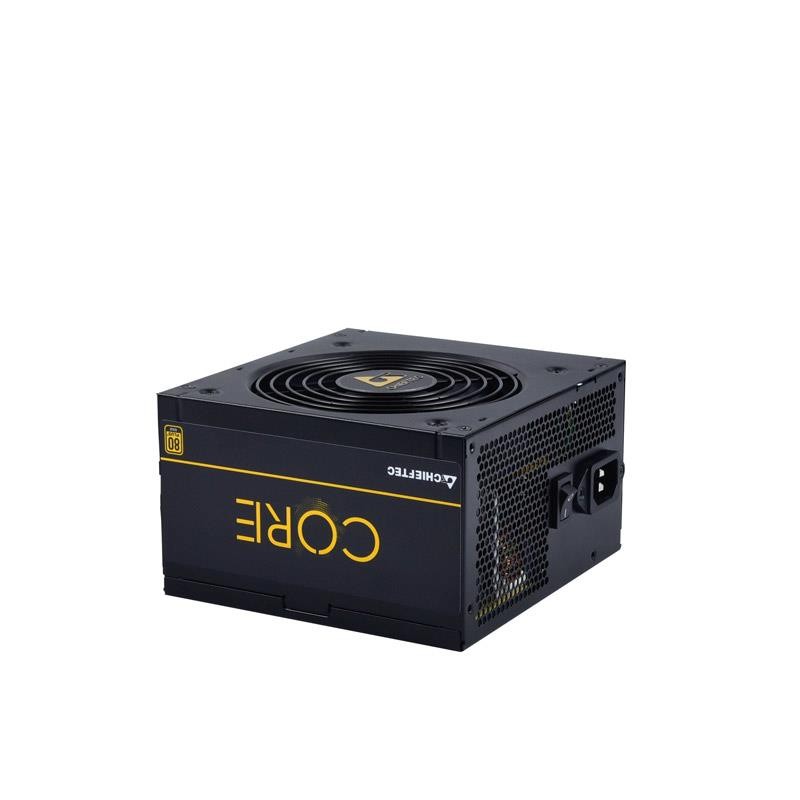

Power Supply|CHIEFTEC|500 Watts|Efficiency 80 PLUS GOLD|PFC Active|BBS-500S
  • Power Supply|CHIEFTEC|500 Watts|Efficiency 80 PLUS GOLD|PFC Active|BBS-500S

Power Supply|CHIEFTEC|500 Watts|Efficiency 80 PLUS GOLD|PFC Active|BBS-500S

BBS-500S
CHIEFTEC
500 W | 100 - 240 V | 80 PLUS certification 80 PLUS Gold | PC | PS/2 | Fan diameter 120 mm | Weight 1.65 kg | BBS-500S
57,81 €
Sisältää alv:n
Määrä
Tellimisel

Kuvaus

With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.

  • 80 PLUS Gold Efficiency
  • Compact size with only 140mm depth
  • 500-700W power output
  • Motherboard, CPU and PCI-E cable lengths of 650mm
Tuotetiedot
CHIEFTEC
BBS-500S

Lisätiedot

Vendor Homepage
https://www.chieftec.eu/products-detail/113/CORE_SERIES
Model name
BBS-500S
Garantija
24
Category Code
PSU
Unit Box Height
0.105
Unit Box Length
0.24
Unit Box Width
0.185
Units per Shipping Box
1
Unit Calculated Volume
0.004662 cubm
Unit Calculated Weight
1.96 kg
Summary
Chieftec Core BBS-500S. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 150,500 mm, Peripheral (Molex) power cable length: 150,500 mm. Purpose: PC, Power
Weight & dimensions (Width)
140 mm
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
1650 g
Packaging data (Package weight)
2060 g
Logistics data (Harmonized System (HS) code)
84733020
Design (Product colour)
Black
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Power (Input current)
8 A
Design (Fan diameter)
120 mm
Power (Combined power (+5Vsb))
12.5 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+3.3V))
18 A
Power (Max output current (+5V))
18 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over voltage/Overload/Short circuit
Power (Total power)
500 W
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (Motherboard power connector)
24-pin ATX
Ports & interfaces (Number of SATA power connectors)
4
Ports & interfaces (Peripheral (Molex) power cable length)
150/500 mm
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Ports & interfaces (SATA power cable length)
150/500 mm
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Power supply unit (PSU) form factor)
PS/2
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.3
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
1
Ports & interfaces (CPU power cable length)
650 mm
Ports & interfaces (PCI Express power cable length)
500 mm
Ports & interfaces (Floppy drive power connector)
1
Ports & interfaces (Floppy disk drive connector)
Yes
Power (Max output current (+12V1))
41 A

Tilausviitteet

EAN13
753263076120
Valmistajan tuotenumero (MPN)
1285224
