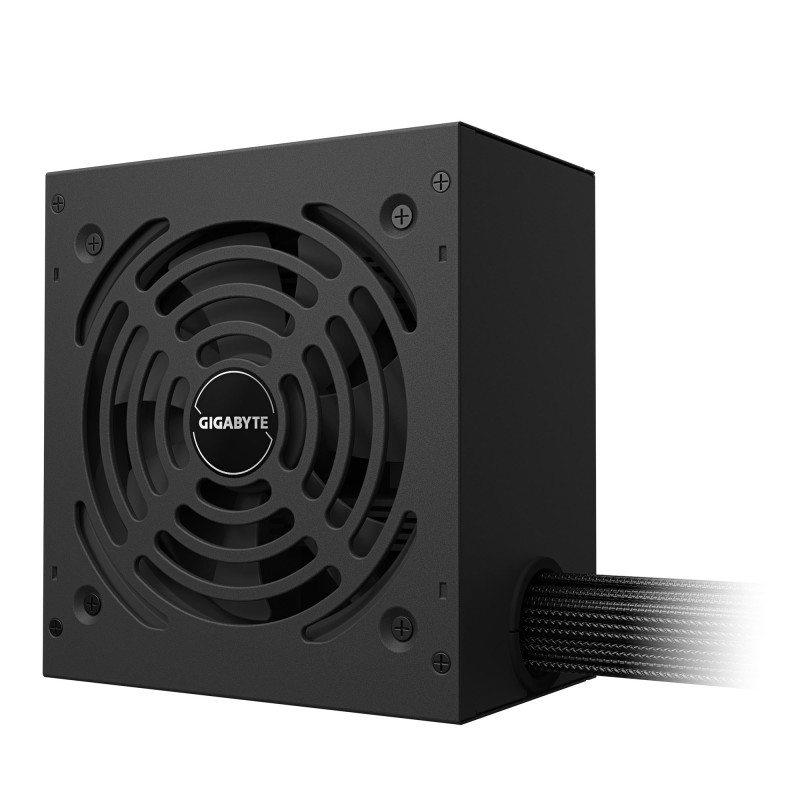

Power Supply|GIGABYTE|GP-P650G PG5|ATX|PC|100 - 240 V|650 W|GP-P650GPG5

Name: Power Supply|GIGABYTE|GP-P650G PG5|ATX|PC|100 - 240 V|650 W|GP-P650GPG5
Brand: GIGABYTE
SKU: GP-P650G PG5
Price: 60.36 EUR
Availability: InStock

Viite GP-P650G PG5

Tuotemerkki GIGABYTE

650 W | 100 - 240 V | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Weight 1.76 kg | Package type Box | GP-P650G PG5

60,36 €

Sisältää alv:n

DPD kuller

from 14,99 €

DPD pakiautomaat

from 4,29 €

Määrä

Laos

Varastossa: 30 Tuotteet

Kuvaus
Tuotetiedot

Kuvaus

GIGABYTE P650G PCIE 5.1 (GP-P650G)
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

ATX 3.1 and PCIe Gen 5.1 ready
80 PLUS Gold certified
Main Japanese capacitors
120mm Silent Hydraulic Bearing (HYB) Fan
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
Compact design

Tuotetiedot

Tuotemerkki GIGABYTE

Viite GP-P650G PG5

Varastossa 30 Tuotteet

Lisätiedot

Vendor Homepage: gigabyte.com/Power-Supply/GP-P650G-PG5 kf
Model name: GP-P650G PG5
Garantija: 36
Category Code: PSU
Unit Box Height: 0.12
Unit Box Length: 0.26
Unit Box Width: 0.215
Units per Shipping Box: 5
Unit Calculated Volume: 0.007986 cubm
Unit Calculated Weight: 2.15 kg
Summary: GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable le
Weight & dimensions (Width): 140 mm
Weight & dimensions (Depth): 150 mm
Weight & dimensions (Height): 86 mm
Weight & dimensions (Weight): 1760 g
Packaging data (Package width): 260 mm
Packaging data (Package depth): 110 mm
Packaging data (Package height): 180 mm
Packaging data (Package weight): 1920 g
Packaging data (Package type): Box
Design (Product colour): Black
Power (AC input frequency): 50/60 Hz
Power (AC input voltage): 100 - 240 V
Design (Cooling type): Active
Design (Number of fans): 1 fan(s)
Power (Input current): 10 - 6 A
Design (Fan diameter): 120 mm
Design (On/off switch): Yes
Power (Combined power (+12V)): 650 W
Power (Combined power (+3.3V)): 90 W
Power (Combined power (+5V)): 650 W
Power (Combined power (+5Vsb)): 15 W
Power (Combined power (-12V)): 3.6 W
Power (Max output current (+12V)): 54.2 A
Power (Max output current (+3.3V)): 18 A
Power (Max output current (+5V)): 18 A
Power (Max output current (+5Vsb)): 18 A
Power (Max output current (-12V)): 0.3 A
Power (Power protection features): Over power/Overcharge/Short circuit/Under voltage
Power (Total power): 650 W
Ports & interfaces (Cabling type): Non-Modular
Ports & interfaces (Motherboard power cable length): 600 mm
Ports & interfaces (Motherboard power connector): 20+4 pin ATX
Ports & interfaces (Number of SATA power connectors): 6
Ports & interfaces (Peripheral (Molex) power cable length): 150 mm
Ports & interfaces (Peripheral (Molex) power connectors (4-pin)): 3
Ports & interfaces (SATA power cable length): 120/500 mm
Performance (80 PLUS certification): 80 PLUS Gold
Performance (Mean time between failures (MTBF)): 100000 h
Performance (Power supply unit (PSU) form factor): ATX
Performance (Purpose): PC
Logistics data (Warranty period): 5 year(s)
Power (Power Factor Correction (PFC) type): Active
Ports & interfaces (CPU P4 connector (4-pin)): 1
Performance (ATX version): 3.1
Ports & interfaces (CPU power connector (4+4 pin)): Yes
Ports & interfaces (PCI Express power connectors (6+2 pin)): 2
Performance (Bearing technology): HYB
Design (Fan location): Top
Power (Maximum input current (@110V)): 10 A
Power (Maximum input current (@220V)): 6 A
Ports & interfaces (CPU power cable length): 600 mm
Ports & interfaces (PCI Express power cable length): 500 mm
Power (Power Good signal delay range): 100 - 150 ms
Ports & interfaces (ATX power connector (20+4 pin)): Yes
Ports & interfaces (Floppy disk drive connector): Yes
