SURVEILLANCE KIT DAHUA-NVR04-4IPCB 4 CAMERAS + DVR DAHUA
631,32 €
Sisältää alv:n

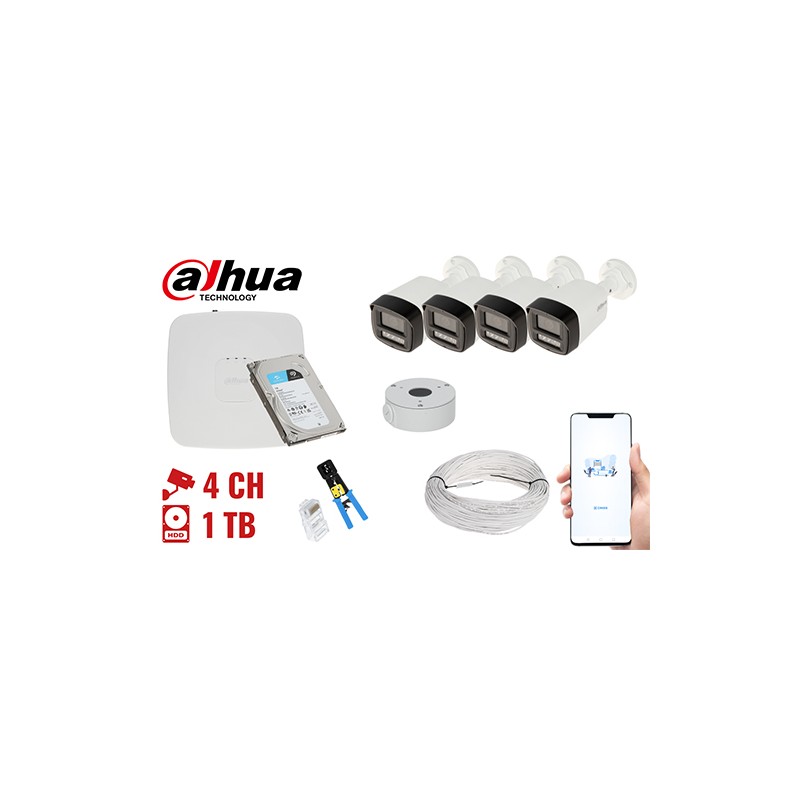

- Complete surveillance kit consisting of 4 cameras, DVR and PoE switch
- The kit consists of a DVR, a 1 TB hard drive, 4 tube cameras, a PoE switch, a 100 m long twisted-pair cable, a set of RJ45 plugs and a crimping tool
- The H.265+ video compression standard using to record video data, allows to get the best possible quality of recorded image at minimal network transfer and disk storage capacity
- The menu options layout has been designed for all users, even beginners can easy navigate and change parameters in DVR settings without any problem
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
In the kit:
Cameras:
4 pcs IPC-HFW1439TL1-A-IL-0280B
Recorder:
1 pcs NVR2104-S3
HDD:
1 pcs HDD-ST1000VX013
Switch POE:
1 pcs SG1006P
Camera bracket:
4 pcs PFA134
Twisted-pair cable:
100 m PFM920I-5EUN/100M
Crimping tool:
1 pcs HT-240T
RJ-45 plug:
100 pcs RJ45T
DVR:
| Model: | NVR2104-S3 |
| Standard: | IP |
| Supported resolutions: | max. 12 Mpx - 4000 x 3000 px, |
| Video outputs: | 1 pcs HDMI 1 pcs VGA |
| Audio support: | 4 Channels - Audio from cameras |
| Audio inputs: | 1 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Supported hard drives: | 1 x 16 TB SATA |
| Recording modes: | Manual, Motion Detection, Schedule |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow "Frame by Frame" playback function Channels played simultaneously : 1 @ 12 Mpx, 30 fps 1 @ 8 Mpx, 30 fps 2 @ 5 Mpx, 30 fps 3 @ 4 Mpx, 30 fps 6 @ 1080p, 30 fps |
| Bitrate: | max. 80 Mbps |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in |
| ONVIF: |  |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) Android: DMSS free application iOS (iPhone): DMSS free application See how to configure the P2P function in Dahua recorders and how to enable the mobile application |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Alarm inputs / outputs: |  |
| PTZ control: | IP PTZ control |
| Motion Detection: | |
| USB: | 2 pcs USB 2.0 |
| Main features: | Functions implemented in cooperation between the recorder and cameras that support these functions Advanced peripheral protection functions: intrusion, crossing line with separate rules for vehicles and pedestrians, classification of people and vehicles, SMD PLUS - searching for an object classified as: human, motor vehicle Motion Detection Privacy zones |
| Mouse support: | |
| IR remote controller in the set: | |
| Power supply: | 12 V DC / 1.5 A (power adapter included) |
| Weight: | 0.42 kg |
| Dimensions: | 205 x 206 x 48 mm |
| Supported languages: | Polish, English |
CAMERA:
| Model: | IPC-HFW1439TL1-A-IL-0280B |
| Number of cameras in the kit: | 4 pcs |
| Standard: | IP |
| Sensor: | 1/2.9 " Progressive Scan CMOS |
| Matrix size: | 4 Mpx |
| Resolution: | 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx , 1280 x 720 - 720p |
| Lens: | 2.8 mm |
| View angle: | 94 ° |
| Range of IR illumination: | 30 m |
| White light LED illuminator range: | 30 m |
| S/N ratio: | > 56 dB |
| Memory card slot: | |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs / outputs: | |
| Audio: | Microphone built-in Audio detection Compliance with the AAC standard |
| Main stream frame rate: | 25 fps @ 3.7 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 6 |
| ONVIF: | |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) Android: DMSS free application iOS (iPhone): DMSS free application |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Main features: | WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image BLC/HLC - Back Light / High Light Compensation Possibility to change the resolution, quality and bit rate Image rotation and mirror Motion Detection - max. 4 configurable zones Privacy zones - max. 4 Intelligent Image Analysis : Human detection |
| Power supply: | PoE (802.3af), 12 V DC / 530 mA |
| Power consumption: | ≤ 6.4 W @ 12 V DC ≤ 7.7 W @ PoE |
| Housing: | Compact - Metal |
| Color: | White + Black |
| "Index of Protection": | IP67 |
| Vandal-proof: | |
| Operation temp: | -40 °C ... 60 °C |
| Weight: | 0.31 kg |
| Dimensions: | 198 x 80 x 76 mm |
Switch POE:
| Model: | SG1006P |
| LAN ports: | 4 x RJ45 10/100/1000 Base-T ( 1 x Hi-PoE + 3 x PoE (802.3af/at) ), 2 x RJ45 10/100/1000 Base-T - Uplink |
| Management: | |
| LED diodes: | Power, PoE, Link/Act |
| Transmission speed: | 10 / 100 / 1000 Mbps : 4 LAN & PoE ports + 2 Uplink ports |
| Maximal output power: | 60 W / port Hi-PoE - 1 port 30 W / port PoE 802.3af/at - 2 ... 4 ports |
| Maximal total power: | 60 W |
| MAC addresses table: | 2k |
| Operation modes: | Extend On : 250 m, 10 Mbps @ UTP cat. 5e, 6 |
| Main features: | PoE power mode : The device supports 8-pin power supply protection against lightning discharges and voltage differences and strokes between devices Watchdog PoE Kensington Lock Possibility to mount to the wall |
| Certificates: | CE |
| Protections: | Protection against lightning discharges (common/differential) : 4 / 2 kV Protection against electrostatic discharge - Contact/Air (ESD/EMP) : 6 / 8 kV |
| Housing: | Desktop, Metal |
| Power supply: | 53 V DC / 1.22 A (power adapter included) |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.29 kg |
| Dimensions: | 130 x 85 x 26 mm |
BRACKET:
| Model: | PFA134 |
| Number of brackets included: | 4 pcs |
| Mounting holes distance: | 48 mm |
| Number of holes: | 3 |
| Neck diameter: | Ø 91 mm |
| Suitable for cameras: | DAHUA - documentation for download below. |
| Material: | Aluminum |
| Color: | White |
| Distance from mounting surface: | 35 mm |
| Weight: | 0.22 kg |
| Dimensions: | Ø 90 x 35 mm |
TWISTED-PAIR CABLE:
| Model: | PFM920I-5EUN/100M |
| Length: | 100 m |
| Type: | UTP cat. 5e |
| Inner conductor: | Ø 0.45 mm Cu=99.99%, Wire |
| Resistance: | max. 12 Ω / 100 m |
| Shield: | |
| Outer coating: | Ø 4.7 mm PVC |
| Coating color: | White |
| Main features: | Parameters far exceeding the requirements for Category 5+ |
| Weight: | 24.5 kg/km |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
RJ-45 plug:
| Model: | RJ45T |
| In the kit: | 100 pcs |
| Connector type: | RJ-45 - Plug, 8 pin |
| Attachment of connector elements: | Crimping |
| Wire mounting: | Clamping on each wire with 3-pin edge |
| Application: | Twisted-pair cable, UTP cat. 5e, FTP cat. 5e |
| Material: | PET |
| Main features: | Very easy and quick assembly |
CRIMPING TOOL:
| Model: | HT-240T |
| Material: | Metal / PET |
| Application: | Plug RJ45 (8P8C) |
| Main features: | Insulation stripper Cutter |
| Dimensions: | 200 x 75 x 25 mm |
HDD:
| Model: | HDD-ST1000VX013 |
| Number of hard drives: | 1 pcs |
| Capacity: | 1 TB |
| Interface: | SATA 6 Gb/s |
| Size format: | 3.5 " |
| Cache memory: | 64 MB |
| Designed to continuous operation 24/7: | |
| Weight: | 0.39 kg |
| Manufacturer / Brand: | SEAGATE |
| Guarantee: | 3 years |
General information:
| Standard: | IP |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 2 years |
