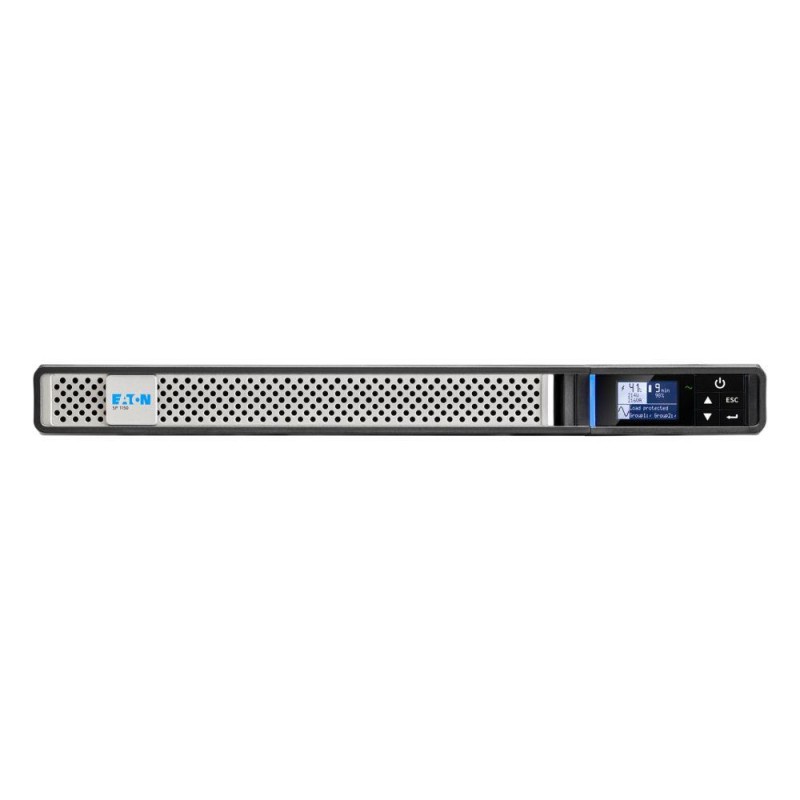

UPS|EATON|920 Watts|1150 VA|LineInteractive|5P1150IRNG2
  • UPS|EATON|920 Watts|1150 VA|LineInteractive|5P1150IRNG2

UPS|EATON|920 Watts|1150 VA|LineInteractive|5P1150IRNG2

5P1150IRNG2
EATON
UPS topology Line-Interactive | Output power capacity 1.15 kVA | Output power 920 W | Waveform Sine | Input operation voltage (min) 150 V | Input operation voltage (max) 294 V | Input frequency 47/70 Hz | Output frequency 50/60 Hz | Heat dissipation 465 BTU/h | Number of input phases 1 | Number of output phases 1 | Efficiency 98.2 % | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Serial interface Yes | Battery technology Sealed Lead Acid (VRLA) | Battery voltage 6 V | Form factor Rackmount | Colour Black,Silver | Display type LCD | LED indicators Yes | Operating temperature (T-T) 0 - 40 °C | Operating altitude 0 - 3000 m | Rack mount kit Yes | Weight 14.3 kg
1 183,93 €
Sisältää alv:n
Määrä
Viimeinen varastossa!
1 Tuote

Kuvaus
UPS topology Line-Interactive | Output power capacity 1.15 kVA | Output power 920 W | Waveform Sine | Input operation voltage (min) 150 V | Input operation voltage (max) 294 V | Input frequency 47/70 Hz | Output frequency 50/60 Hz | Heat dissipation 465 BTU/h | Number of input phases 1 | Number of output phases 1 | Efficiency 98.2 % | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Serial interface Yes | Battery technology Sealed Lead Acid (VRLA) | Battery voltage 6 V | Form factor Rackmount | Colour Black,Silver | Display type LCD | LED indicators Yes | Operating temperature (T-T) 0 - 40 °C | Operating altitude 0 - 3000 m | Rack mount kit Yes | Weight 14.3 kg
Tuotetiedot
EATON
5P1150IRNG2
1 Tuote

Lisätiedot

Vendor Homepage
https://www.eaton.com/gr/en-gb/skuPage.5P1150IRNG2.html
Garantija
24
Model
Eaton 5P Gen2
Category Code
UPW
Unit Box Height
0.175
Unit Box Length
0.59
Unit Box Width
0.54
Units per Shipping Box
1
Unit Calculated Volume
0.055755 cubm
Unit Calculated Weight
19.2 kg
Summary
Eaton 5P1150IRNG2. UPS topology: Line-Interactive, Output power capacity: 1.15 kVA, Output power: 920 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capac
Battery (Battery technology)
Sealed Lead Acid (VRLA)
Weight & dimensions (Width)
438 mm
Weight & dimensions (Depth)
509 mm
Weight & dimensions (Height)
43.2 mm
Weight & dimensions (Weight)
14280 g
Packaging content (Cables included)
USB cable
Battery (Battery capacity)
9 Ah
Certificates (Compliance certificates)
Low Voltage Directive (LVD)/RoHS
Operational conditions (Operating temperature (T-T))
0 - 40 C
Ports & interfaces (USB port)
Yes
Design (Product colour)
Black,Silver
Packaging content (Quick installation guide)
Yes
Certificates (Certification)
EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Operational conditions (Operating relative humidity (H-H))
0 - 90 %
Design (Form factor)
Rackmount
Battery (Battery voltage)
6 V
Operational conditions (Operating altitude)
0 - 3000 m
Design (LED indicators)
Yes
Certificates (Waste Electrical and Electronic Equipment (WEEE) compliance)
Yes
Battery (Number of battery cells)
4
Design (Rack capacity)
1U
Design (Display type)
LCD
Features (Input frequency)
47/70 Hz
Features (Input operation voltage (max))
294 V
Features (Input operation voltage (min))
150 V
Features (Noise level)
35 dB
Features (Output operation voltage (max))
240 V
Features (Output operation voltage (min))
200 V
Features (Output power)
920 W
Features (Output power capacity)
1.15 kVA
Features (UPS topology)
Line-Interactive
Ports & interfaces (AC outlet types)
C13 coupler
Ports & interfaces (AC outlets quantity)
6 AC outlet(s)
Features (Output frequency)
50/60 Hz
Battery (Hot-swap battery)
Yes
Features (Efficiency)
98.2 %
Features (Number of input phases)
1
Features (Number of output phases)
1
Features (Waveform)
Sine
Ports & interfaces (Power plug)
C14 coupler
Battery (Typical backup time at half load)
12.5 min
Packaging content (Rack mount kit)
Yes
Features (Heat dissipation)
465 BTU/h
Ports & interfaces (Serial interface)
Yes
Ports & interfaces (Serial interface type)
RS-232
Ports & interfaces (Serial ports quantity)
1
Features (Automatic Voltage Regulation (AVR))
Yes
Ports & interfaces (USB port type)
USB Type-B
Features (Power factor)
0.8
Ports & interfaces (Network card slot)
Yes

Tilausviitteet

EAN13
3553340710407
Valmistajan tuotenumero (MPN)
1441475
