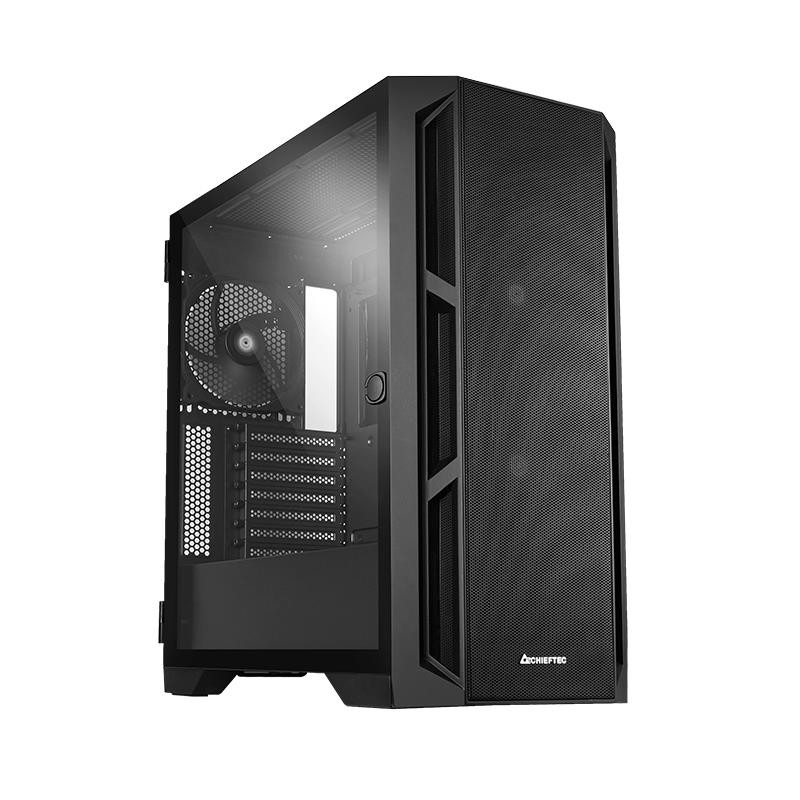

Case|CHIEFTEC|APEX AIR|MidiTower|Not included|ATX|MicroATX|MiniITX|Colour Black|GA-01B-M-OP

Viite GA-01B-M-OP

Tuotemerkki CHIEFTEC

60,63 €

Sisältää alv:n

Määrä

Laos

Varastossa: 50 Tuotteet

Kuvaus
Tuotetiedot

Kuvaus

The CHIEFTEC APEX AIR presents an E-ATX chassis with a large mesh front panel and three pre-installed 140mm PWM fans that, in combination, are designed to enable high-airflow systems while maintaining low noise.

APEX AIR‘s 3x 140mm PWM fans are configured with 2 pre-installed in the front and 1 pre-installed in the rear, which creates a smooth airflow path from the front intake to rear exhaust.

The case is generous with space, offering support for GPU‘s up to 400 mm in length, CPU coolers up to 175mm in height and radiator support up to 360mm on the top, as well as up to 420mm in the front.

CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.

High-airflow optimized front mesh panel
Side panel made of TEMPERED GLASS
3x 140mm PWM fans pre-installed

Tuotetiedot

Tuotemerkki CHIEFTEC

Viite GA-01B-M-OP

Varastossa 50 Tuotteet

Lisätiedot

Vendor Homepage: https://www.chieftec.eu/products-detail/570/GA-01B-M-OP
Model name: APEX AIR
Garantija: 24
Model: GA-01B-M-OP
Category Code: CAS
Unit Box Height: 0.535
Unit Box Length: 0.555
Unit Box Width: 0.295
Units per Shipping Box: 1
Unit Calculated Volume: 0.08759 cubm
Unit Calculated Weight: 8.6 kg
Summary: Chieftec APEX AIR GA-01B-M-OP ATX. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120 mm. Supported HDD s
Weight & dimensions (Width): 230 mm
Weight & dimensions (Depth): 465 mm
Weight & dimensions (Height): 495 mm
Weight & dimensions (Weight): 7300 g
Packaging data (Package weight): 8750 g
Design (Product colour): Black
Ports & interfaces (Audio input): Yes
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 2
Ports & interfaces (Audio output): Yes
Design (Form factor): Midi Tower
Design (Illumination): No
Design (Type): PC
Ports & interfaces (USB Type-C ports quantity): 1
Design (Anti-dust filter): Yes
Design (Material): SPCC
Design (Maximum CPU cooler height): 175 mm
Design (Maximum graphics card length): 400 mm
Design (Maximum PSU length): 220 mm
Design (Number of 2.5" bays): 2
Design (Number of 3.5" bays): 2
Design (Number of expansion slots): 7
Design (On/off button): Yes
Design (Reset button): Yes
Design (RGB control button): Yes
Design (Side window): Yes
Design (Suitable for): Gaming
Design (Supported motherboard form factors): ATX/EATX/micro ATX/Mini-ITX
Power supply (Power supply included): No
Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Cooling (Bottom fans diameters supported): 120 mm
Cooling (Liquid cooling capability): Yes
Cooling (Number of bottom fans supported (max)): 2
Cooling (Number of rear fans supported (max)): 1
Cooling (Number of side fans supported (max)): 2
Cooling (Number of top fans supported (max)): 3
Cooling (Pulse-width modulation (PWM) support): Yes
Cooling (Rear fans diameters supported): 120/140 mm
Cooling (Rear fans installed): 1x 140 mm
Cooling (Side fans diameters supported): 120 mm
Cooling (Side radiator sizes supported): 240 mm
Storage (Supported HDD sizes): 2.5/3.5 "
Ports & interfaces (USB 3.0): 2
Cooling (Top radiator sizes supported): 240/280/360 mm
Cooling (Front fans diameters supported): 120/140 mm
Design (Tempered glass panel(s)): Yes
Design (Cable management): Yes
Cooling (Front fans installed): 2x 140 mm
Cooling (Front radiator sizes supported): 240/280/360/420 mm
Cooling (Number of front fans supported (max)): 3
Design (Number of internal 3.5" bays): 2
Design (Number of storage drives supported): 5
Power supply (Power supply location): Bottom
Power supply (Power supply shroud): Yes
Cooling (Top fans installed): 3x 120 mm, 2x 140 mm
Weight & dimensions (Material thickness): 0.6 mm
Design (Full-Height expansion slots): 7
