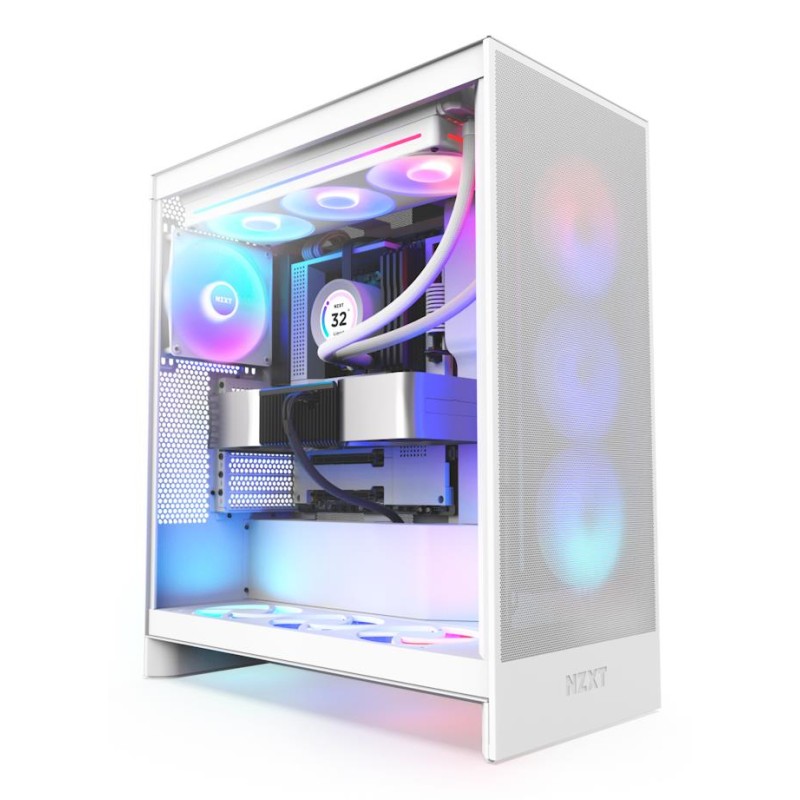

Case|NZXT|H7 Flow RGB|MidiTower|ATX|EATX|MicroATX|MiniITX|Colour White|CM-H72FW-R1

Viite CM-H72FW-R1

Tuotemerkki NZXT

140,54 €

Sisältää alv:n

DPD kuller

from 14,99 €

DPD pakiautomaat

from 4,29 €

Määrä

Laos

Varastossa: 2 Tuotteet

Kuvaus
Tuotetiedot

Kuvaus

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans

Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.

Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.

Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Exploded view of H7 Flow panelsExploded view of H7 Flow panels

Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint
Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust
Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel
Tool-less access to the front, top, and side panels makes building and upgrading a breeze

Tuotetiedot

Tuotemerkki NZXT

Viite CM-H72FW-R1

Varastossa 2 Tuotteet

Lisätiedot

Vendor Homepage: https://nzxt.com/product/h7-flow-rgb
Model name: H7 Flow RGB
Garantija: 24
Category Code: CAS
Unit Box Height: 0.565
Unit Box Length: 0.635
Unit Box Width: 0.32
Units per Shipping Box: 1
Unit Calculated Volume: 0.1148 cubm
Unit Calculated Weight: 14.5 kg
CnCode: 84733080
Summary: NZXT H7 Flow RGB. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 244 mm, Depth: 468 mm
Weight & dimensions (Width): 244 mm
Weight & dimensions (Depth): 468 mm
Weight & dimensions (Height): 544 mm
Weight & dimensions (Weight): 11130 g
Technical details (Warranty period): 2 year(s)
Design (Product colour): White
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 2
Ports & interfaces (Audio output): Yes
Design (Form factor): Midi Tower
Design (Illumination): Yes
Design (Type): PC
Design (Material): SGCC/Tempered glass
Design (Maximum CPU cooler height): 185 mm
Design (Maximum graphics card length): 410 mm
Design (Maximum PSU length): 200 mm
Design (Number of 2.5" bays): 4
Design (Number of 3.5" bays): 2
Design (On/off button): Yes
Design (Reset button): No
Design (Side window): Yes
Design (Supported motherboard form factors): ATX/EATX/micro ATX/Mini-ITX
Power supply (Power supply included): No
Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Cooling (Fan 2 maximum air pressure): 1.27 mmH2O
Cooling (Fan 2 maximum airflow): 50.1 cfm
Cooling (Fan speed): 1200 - 1500 RPM
Cooling (Fan speed control): No
Cooling (Maximum air pressure): 1.27 mmH2O
Cooling (Maximum airflow): 50.1 cfm
Cooling (Number of rear fans supported (max)): 1
Cooling (Number of top fans supported (max)): 3
Cooling (Rear fans diameters supported): 120/140 mm
Cooling (Rear radiator sizes supported): 140 mm
Cooling (Top fans diameters supported): 120/140 mm
Storage (Supported HDD sizes): 2.5/3.5 "
Cooling (Top radiator sizes supported): 360 mm
Cooling (Front fans diameters supported): 120/140 mm
Design (Tempered glass panel(s)): Yes
Design (Cable management): Yes
Cooling (Front fans installed): 3x 120 mm
Cooling (Front radiator sizes supported): 360/420 mm
Cooling (Number of front fans supported (max)): 3
