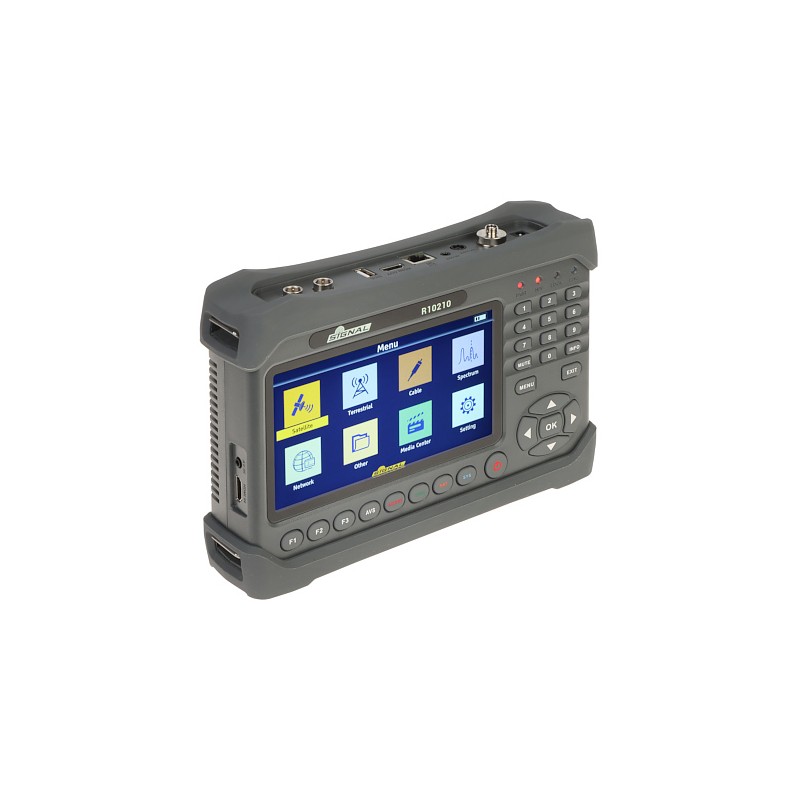

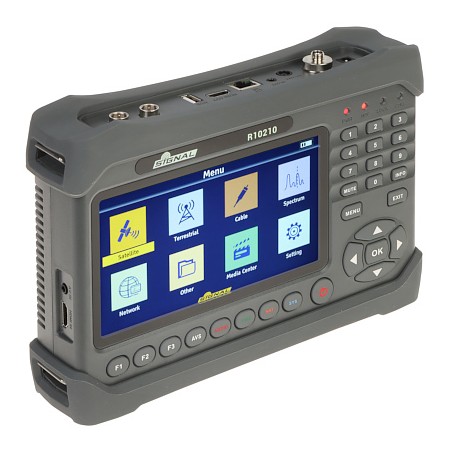

UNIVERSAL METER ST-6986 DVB-T/T2 DVB-S/S2 DVB-C SIGNAL
463,81 €
Sisältää alv:n
- The ST-6986 allows to measure the TV signals at DVB-T/T2, DVB-S/S2, DVB-C installations
- Readable menu will help the operation for any installer
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
| Output and input: | Inputs : IEC - Ant socket, "F" - LNB socket, HDMI, AV - mini Jack input, SC / FC fiber optic input Outputs : HDMI, AV - mini Jack output, Power output, 12 V DC |
| Frequency range: | 48 MHz ... 862 MHz @ DVB-T / DVB-T2 / DVB-C, 950 MHz ... 2150 MHz @ DVB-S / DVB-S2 |
| Signal level: | -20 ... +80 dBm @ DVB-S / DVB-S2, -20 ... +80 dBm @ DVB-T / DVB-T2 / DVB-C, -40 ... +23 dBm - Optical power meter |
| LNB power supply: | 13 / 18 V, max. 400 mA |
| Switching between bandwidths: | 0 / 22 kHz |
| Antenna powering: | 5 / 12 / 24 V @ 100 mA |
| DiSEqC: | 1.0, 1.1,1.2, 0/22 kHz Tone, Unicable (dSCR), Wideband systems support |
| Modulation: | QPSK / 8PSK / 16APSK @ DVB-S / DVB-S2 QPSK / 16-QAM / 64-QAM / 256-QAM @ DVB-T / DVB-T2 / DVB-C |
| Video signal test: |  |
| Programming and firmware upgrade: | via USB port |
| Battery power supply: | Li-Ion battery 7.4 V / 5000 mAh |
| Power supply: | 12 V / 1.5 A (power adapter included) |
| Power consumption: | ≤ 10 W |
| Main features: | 7 " LCD display - 1280 x 720 px Measurement of DVB-T/T2/C, DVB-S/S2 @ MPEG2/MPEG4 signals Built-in DVB-S/S2, DVB-T/T2/C receiver allowing constant preview of the set channel Built-in MPEG-2 / H.264 / H.265 video decoder Calculation of azimuth and elevation angle Constellation diagram Analysis of the spectrum for the whole frequency band Signal measurement expressed in dBμV, C/N, BER, MER Measurement of signal strength and quality Percent indication of signal quality Built-in optical power meter - Optical wavelength : 850,1300, 1310, 1330, 1490, 1550, 1625 nm The USB connector for supporting multimedia files wma, mp3, mp4, avi, jpg, jpeg, bmp, img DisEqC automatic identification High measurement accuracy The set includes a practical case |
| Weight: | 1.17 kg |
| Dimensions: | 259 x 181 x 59 mm |
| Supported languages: | Polish, English, Czech, Danish, French, Greek, Spanish, Dutch, German, Slovenian, Portuguese, Russian, Turkish, Hungarian, Italian |
| Manufacturer / Brand: | SIGNAL |
| Guarantee: | 2 years |
