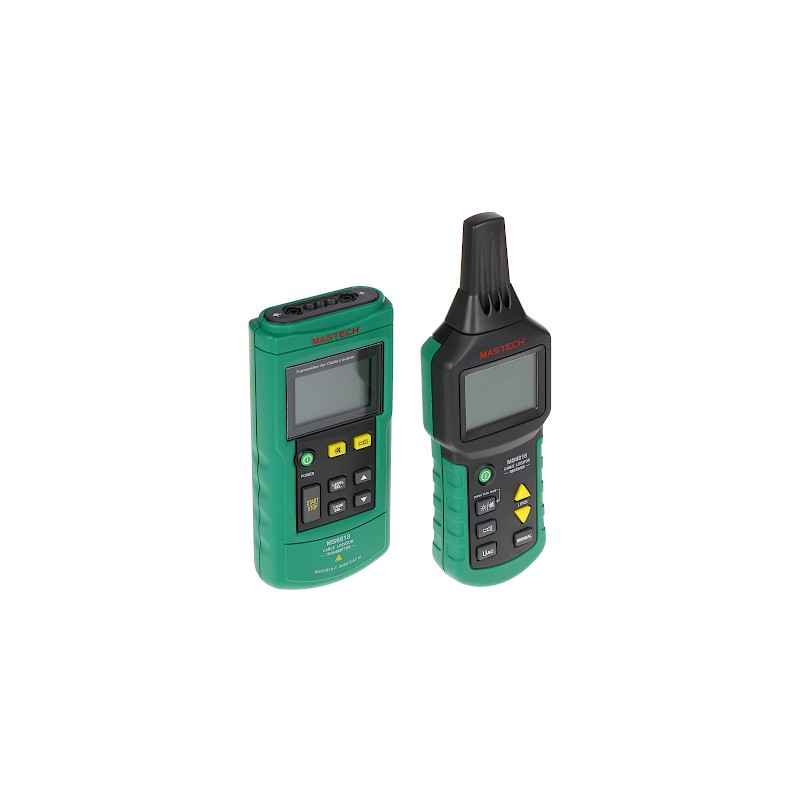

CABLE TRACKER MS-6818

324,55 €

Sisältää alv:n

The MS-6818 meter allows to identify and track cables placed in walls or buried underground
The meter's method of operation also allows the tracking of the position of other metal installations, such as water and sewage pipes, elements of heating installations (including floor installations) and other
In addition, the MS-6818 meter also allows to detect faults and short circuits of the electrical cables
The device enables operation both in the disconnected circuit and in the presence of mains voltage (AC and DC)
In the case of a mains voltage presence, both the transmitter and the receiver will display on the screens a warning about working on a live circuit
The transmitter also has the ability to measure the voltage in the circuit in the ran

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Output signal:	125 kHz - Transmitter
AC voltage measurement:	12 ... 400 V
DC voltage measurement:	12 ... 400 V
Main features:	Wire continuity test, Searching the place of wire damage, 3 operating modes: unipolar, bipolar, loop, The ability to identify any metal elements of electrical, plumbing, heating installations, etc., Detection of the cable in the wall and underground at depth up to 2m, The possibility of operating under mains voltage and in a circuit without voltage, 8 transmission codes set on the transmitter and distinguished by the receiver, Built-in buzzer allows to operate the device without looking at the screen
Power supply:	Transmitter : 9V, type 6LR61 battery - included Receiver : 6 x 1.5V, type AAA/LR03 battery - In the kit
Weight:	0.37 kg - Transmitter 0.27 kg - Receiver
Dimensions:	190 x 90 x 41 mm - Transmitter 241 x 79 x 38 mm - Receiver
Guarantee:	2 years

Viite MS-6818

Varastossa 50 Tuotteet
