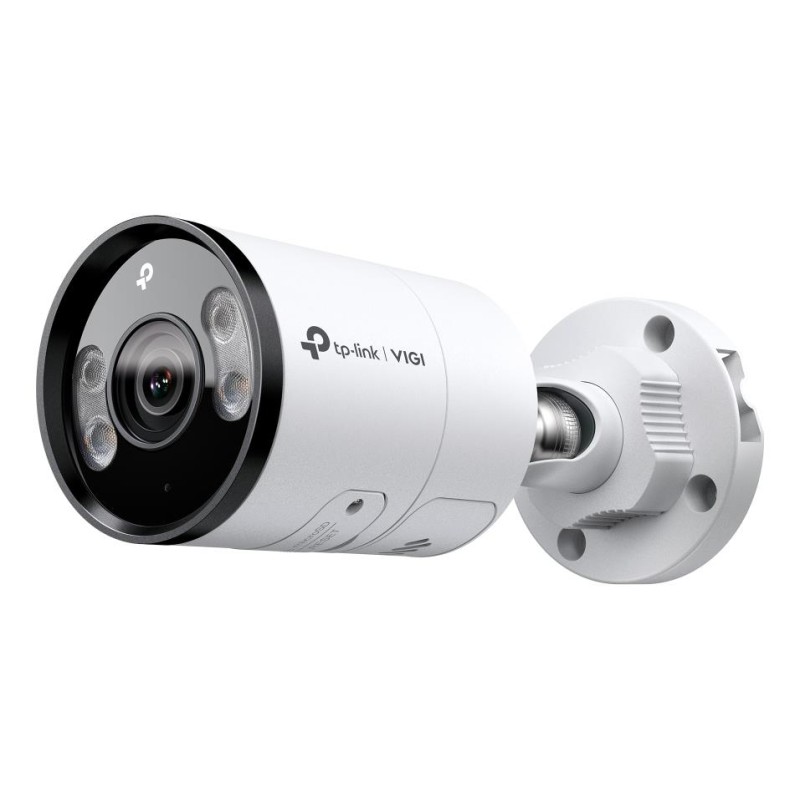

IP-kamera BULLET H.265+ 8MP INSIGHT S385(4MM) TP-LINK

Lisätiedot

Vendor Homepage

https://www.tp-link.com/uk/business-networking/vigi-network-camera/insight-s385/v1%20(4mm%20lens)/

Garantija

36

Model

InSight S385 4mm

Category Code

FNC

Unit Box Height

0.102

Unit Box Length

0.217

Unit Box Width

0.126

Units per Shipping Box

1

Unit Calculated Volume

0.002789 cubm

Unit Calculated Weight

0.81 kg

Summary

TP-Link INSIGHT S385. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 91.5 , Lens viewing angle, vertical: 46.1 , Lens

Weight & dimensions (Width)

74 mm

Weight & dimensions (Height)

74 mm

Weight & dimensions (Weight)

525 g

Packaging data (Package type)

Box

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage relative humidity (H-H))

0 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 60 C

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

10.5 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Ports & interfaces (DC-in jack)

Yes

Design (Form factor)

Bullet

Weight & dimensions (Length)

184 mm

Packaging content (Mounting kit)

Yes

Camera (Camera shutter speed)

1/3 to 1/10000 s

Audio (Audio system)

2-way

Packaging content (Screws included)

Yes

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Power (Power source type)

DC,PoE

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in speaker(s))

Yes

Audio (Built-in microphone)

Yes

Design (Protection features)

Waterproof

Security (Password protection)

Yes

Audio (Number of microphones)

1

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Wall

Design (Weatherproof)

Yes

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Infrared (IR) cut-off filter)

Yes

Performance (Placement supported)

Outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

109.6

Camera (Lens viewing angle, horizontal)

91.5

Camera (Lens viewing angle, vertical)

46.1

Image sensor (Optical sensor size)

1/2.7 "

Night vision (LED type)

IR/White

Night vision (Night vision)

Yes

Video (Image quality adjustment)

Brightness/Contrast/Mirror/Saturation/Sharpness

Video (Maximum resolution)

3840 x 2160 pixels

Video (Total megapixels)

8 MP

Management features (Reset button)

Yes

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Fixed focal length)

4 mm

Audio (Audio input channels)

1.0 channels

Camera (Minimum illumination)

0 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Image sensor (Progressive scan)

Yes

Lens system (Fixed focus)

Yes

Lens system (Maximum aperture number)

1.6

Security (Built-in siren)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264+/H.265/H.265+

Video (Digital Wide Dynamic Range (DWDR))

Yes

Camera (Tilt angle range)

0 - 90

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/3840 x 2160

Audio (Audio formats supported)

G.711 A-law

Network (Supported network protocols)

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Management features (Web browser)

Yes

Security (HTTPS encryption)

Yes

Security (Mirror)

Yes

Management features (Web-based management)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

11.5 W

Performance (Dynamic range)

120 dB

Lens system (Detect distance)

107 m

Lens system (Identify distance)

11 m

Lens system (Observe distance)

44 m

Lens system (Recognize distance)

21 m

Video (Bit rate)

Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 512 Kbps

Audio (Bit rate range)

0 - 64 Kbit/s

Video (Video recording)

Yes

Network (Live view)

Yes

Security (Motion sensor)

Yes

Security (IP address filtering)

Yes

Network (Networking standards)

IEEE 802.3af/IEEE 802.3at

Security (Digest authentication)

Yes

Audio (Sample rate)

8 kHz

Management features (Cloud-managed)

Yes

Performance (Remote viewing)

Yes

Performance (Maximum operating distance)

107 m

Security (Alert notification type)

Push notification

Packaging content (Drilling template included)

Yes

Tilausviitteet

EAN13

8885020628180

Valmistajan tuotenumero (MPN)

1451210
