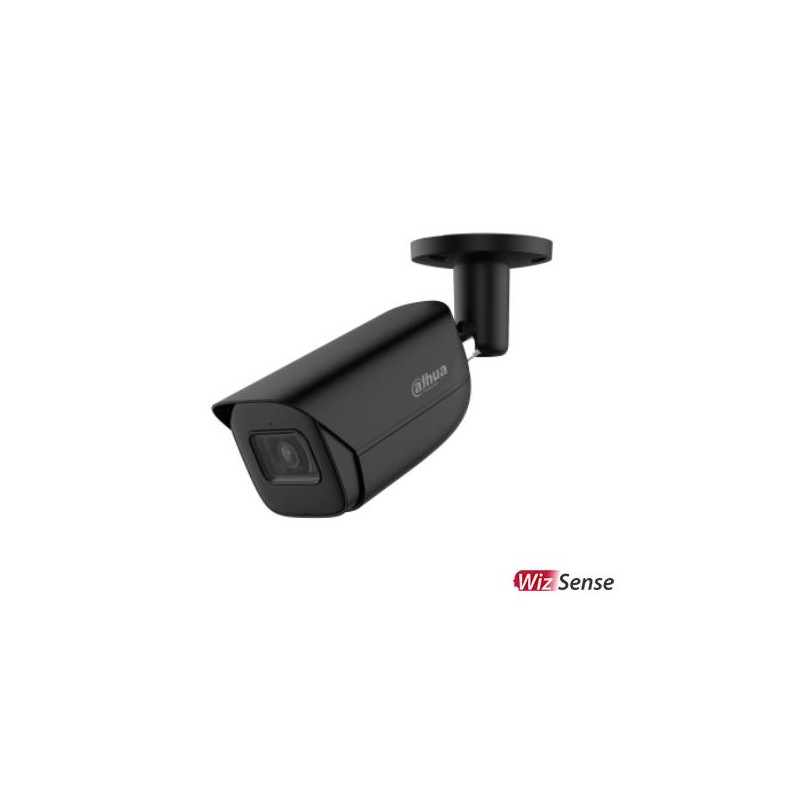

Type HDTV/Megapixel/Outdoor | Resolution 4 Mega Pixel | IR Illumination | Sensor size 1/2.7" | Lens Mount M12 | Min. Illumination 0.0005 Lux | Effective pixels 2960 (H) × 1668 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour Black | Dimensions 192.7 × 70.5 × 66.4 mm
> 4-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 50 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD 4.0, AI SSA.
Type Fixed | Resolution 5 Mega Pixel | Focal Length 2.8mm | IR Illumination | Microphone Built-in | Power options PoE/12V | Power supply requirements 12V 1A, PoE Standard 802.3at | Operating temperature range −25 °C to +40 °C | Included Accessories Installation template;Installation kit;Quick start guide | Colour White | Dimensions 198 × 76 × 76 mm
Type HDTV/Megapixel/Outdoor | Resolution 5 Mega Pixel | Focal Length 2.8 mm | IR Illumination | Sensor size 1/2.7" CMOS | Microphone Built-in | Electronic Shutter Speed 1/16000s~1/30s | Power options PoE | Environment Outdoor | Operating temperature range -30°C to 50°C | Colour White | Dimensions Ø97 x 88 mm
Resolution 5 Mega Pixel | Focal Length 2.8mm | IR Illumination | Sensor size 1/2.7” Progressive Scan CMOS | Min. Illumination 0.005 Lux | Effective pixels 2880 X 1620 | Electronic Shutter Speed 1/3 to 1/10000 s | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug ;...
Type HDTV/Megapixel/Outdoor | Resolution 5 Mega Pixel | Focal Length 4 mm | Sensor size 1/2.7” Progressive Scan CMOS | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.005 Lux | Effective pixels 2880 X 1620 | Electronic Shutter Speed 1/3 to 1/10000 s | Environment Outdoor | Operating temperature range -30–60 °C | Included Accessories • VIGI...
Type HDTV/Megapixel/Outdoor | Resolution 4 Mega Pixel | IR Illumination | Sensor size 1/2.7" | Lens Mount M12 | Min. Illumination 0.0005 Lux | Effective pixels 2960 (H) × 1668 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | Supports card capacities up to 256GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour Black | Dimensions 192.7 × 70.5 × 66.4 mm
