Kuvaus
4-MP 1/3" CMOS image sensor, low luminance, and high definition image Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human) Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area Supports max. 256 G Micro SD card 12 VDC power supply IP67, IK10 protection
Tuotetiedot
Viite
IPC-HDBW1430DE-SW-0280B
Varastossa
11 Tuotteet
Lisätiedot
Vendor Homepage
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/4MP/IPC-HDBW1430DE-SW
Garantija
36
Category Code
FNC
Unit Box Height
0.145
Unit Box Length
0.14
Unit Box Width
0.125
Units per Shipping Box
1
Unit Calculated Volume
0.002537 cubm
Unit Calculated Weight
0.639 kg
Summary

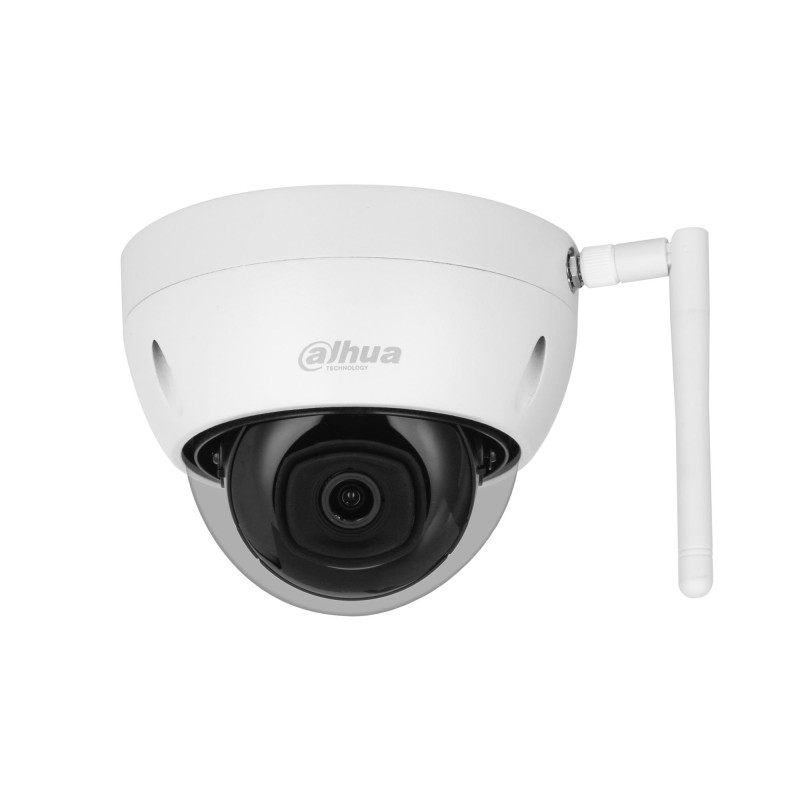

Dahua Technology Mobile Camera DH-IPC-HDBW1430DE-SW. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 355 , Len
Weight & dimensions (Height)
88.7 mm
Weight & dimensions (Weight)
414 g
Packaging data (Package weight)
592 g
Performance (Certification)
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU CE-RED: Radio Equipment Directive 2014/53/EU FCC: 47 CFR FCC Part 15, Subpart B FCC ID: FCC PART 15C
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Weight & dimensions (Diameter)
110.7 mm
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
802.11b/802.11g/Wi-Fi 4 (802.11n)
Design (Product colour)
White
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 - 1/100000 s
Audio (Audio system)
1-way
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
256 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Network (Ethernet interface type)
Fast Ethernet
Design (IK code)
IK10
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling
Performance (Connectivity technology)
Wired & Wireless
Performance (Day/night mode)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
IP security camera
Camera (Lens viewing angle, horizontal)
90
Image sensor (Optical sensor size)
1/3 "
Lens system (Number of lenses)
1
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
30 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2560 x 1440 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Security (Intelligent Video Surveillance (IVS) system features)
Intrusion
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
2
Camera (Camera shutter type)
Electronic
Video (Video compression formats)
H.264+/H.264H/H.265+
Image sensor (Number of sensors)
1
Video (Digital Wide Dynamic Range (DWDR))
Yes
Camera (Angle of rotation)
355
Camera (Pan range)
0 - 355
Camera (Tilt angle range)
0 - 75
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440
Video (Video formats supported)
H.264/H.264B/H.265
Video (Video streaming)
Yes
Storage (Internal memory)
64 MB
Storage (ROM capacity)
16 MB
Management features (Web browser)
Yes
Video (Smart IR)
Yes
Night vision (Number of illumination LEDs)
3
Network (Number of users)
6 user(s)
Security (Mirror)
Yes
Lens system (Detect distance)
68 m
Lens system (Identify distance)
6.8 m
Lens system (Observe distance)
27.2 m
Lens system (Recognize distance)
13.6 m
Video (Bit rate)
3 Kbps - 20480 Kbps
Video (Supported video modes)
1080p/720p
Performance (Antenna type)
External
Performance (Antennas quantity)
1
Video (Video recording)
Yes
Panoramic camera (Digital Wide Dynamic Range (DWDR) (panoramic camera))
Yes
Performance (Remote viewing)
Yes
Lens system (Auto focus)
Yes
Lens system (Fixed focal length (thermal module))
2.8 mm
Video (Video intelligence analytic)
Yes
Audio (Audio codecs)
G.711a G.711Mu PCM G.726 G.723
Audio (Audio system full duplex)
Yes
Security (Detection distance)
80 m
Tilausviitteet
EAN13
6923172539984
Valmistajan tuotenumero (MPN)
1372745
