Kuvaus
Dome | Ceiling | White | IP code IP66 | CCTV security camera | Wired | Placement Indoor & outdoor | PTZ control Yes | Wide Dynamic Range (WDR) Yes | Day/night mode Yes | Minimum illumination 0.0005 lx | Pan range 0 - 355 ° | White balance Auto/Manual/Outdoor/ATW/Indoor | Camera shutter type Electronic | Optical sensor size 1/2.8 " | Sensor type CMOS | Zoom capability Yes | Identify distance 15.2 m | Night vision Yes | Total megapixels 2 MP | Frame rate 30 fps | Noise reduction Yes | Power source type DC | Weight 600 g | 1xNumber of cameras
Tuotetiedot
Viite
SD22204DB-GC
Varastossa
3 Tuotteet
Lisätiedot
Vendor Homepage
www.dahuasecurity.com/ceen/products/All-Products/PTZ-Cameras/HDCVI-PTZ-Cameras/SD2/SD22204DB-GC
Garantija
36
Model
SD22204DB-GC
Category Code
FNC
Unit Box Height
0.14
Unit Box Length
0.16
Unit Box Width
0.16
Units per Shipping Box
1
Unit Calculated Volume
0.003584 cubm
Unit Calculated Weight
0.7 kg
Summary

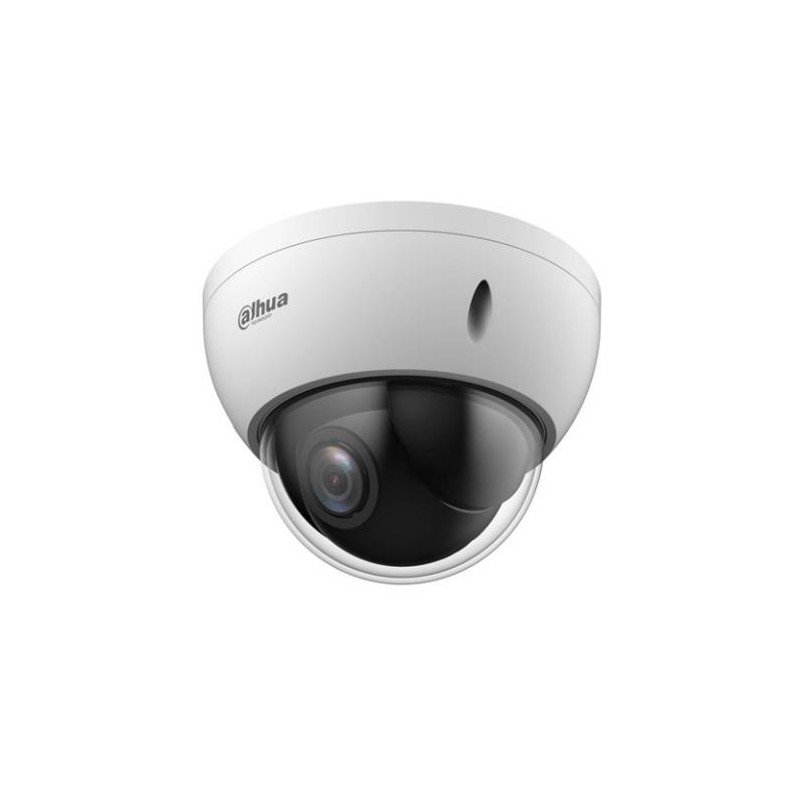

Dahua Technology DH-SD22204DB-GC. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, hor
Weight & dimensions (Height)
88.9 mm
Weight & dimensions (Weight)
600 g
Packaging data (Package weight)
650 g
Performance (Certification)
CE: EN55032/EN55024/EN50130-4 FCC: Parte 15 subparte B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Packaging data (Package type)
Box
Operational conditions (Operating temperature (T-T))
-30 - 60 C
Operational conditions (Storage relative humidity (H-H))
0 - 95 %
Operational conditions (Storage temperature (T-T))
-30 - 60 C
Weight & dimensions (Diameter)
122 mm
Network (Bluetooth)
No
Network (Ethernet LAN)
No
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
9 W
Power (Power consumption (typical))
7 W
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Ports & interfaces (DC-in jack)
Yes
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/1 - 1/30000 s
Power (Power source type)
DC
Performance (Wide Dynamic Range (WDR))
Yes
Design (IK code)
IK10
Design (International Protection (IP) code)
IP66
Design (Mounting type)
Ceiling
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
CCTV security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, diagonal)
117.7
Camera (Lens viewing angle, horizontal)
99.1
Camera (Lens viewing angle, vertical)
53.4
Image sensor (Optical sensor size)
1/2.8 "
Lens system (Zoom capability)
Yes
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Video (Frame rate)
30 fps
Video (Maximum resolution)
1920 x 1080 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
2D noise reduction,3D noise reduction
Video (Total megapixels)
2 MP
Storage (Built-in HDD)
No
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Number of effective pixels (H x V))
1920 x 1080 pixels
Image sensor (Sensor type)
CMOS
Lens system (Focal length range)
2.7 - 11 mm
Camera (Minimum illumination)
0.0005 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Video (Gain control type)
Auto/Manual
Ports & interfaces (RS-485 ports)
1
Camera (Camera shutter type)
Electronic
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video (Digital Wide Dynamic Range (DWDR))
Yes
Camera (Pan range)
0 - 355
Camera (Tilt angle range)
0 - 90
Camera (White balance)
ATW/Auto/Indoor/Manual/Outdoor
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/352 x 240/352 x 288/704 x 480/704 x 576
Video (Video streaming)
Yes
Audio (Signal-to-Noise Ratio (SNR))
50 dB
Storage (Internal memory)
256 MB
Storage (ROM capacity)
128 MB
Lens system (Detect distance)
151.7 m
Lens system (Identify distance)
15.2 m
Lens system (Observe distance)
59.9 m
Lens system (Recognize distance)
30.3 m
Video (Bit rate)
448K - 8192Kbps, 5120K - 10240Kbps
Video (Supported video modes)
1080p/720p
Performance (PTZ control)
Yes
Performance (PTZ modes)
8 Tour/Preset sequence
Camera (Pan preset speed)
100 /sec
Power (DC output current)
1 A
Performance (Preset points)
Yes
Camera (Tilt speed)
60 /sec
Lens system (Focus)
Motorized/Manual
Performance (PTZ protocols)
Pelco-P/D
Lens system (Digital zoom)
16 x
Lens system (Optical zoom)
4 x
Camera (Pan speed)
100 /sec
Ports & interfaces (BNC output ports)
1
Tilausviitteet
EAN13
6923172591319
Valmistajan tuotenumero (MPN)
1446745
