NET CAMERA Q1972-E 10MM 30 FPS/THERMAL 03027-001 AXIS
  • NET CAMERA Q1972-E 10MM 30 FPS/THERMAL 03027-001 AXIS

NET CAMERA Q1972-E 10MM 30 FPS/THERMAL 03027-001 AXIS

03027-001
AXIS
Bullet | Wall | Black/White | IP code IP66, IP67 | Weatherproof Yes | IP security camera | Wired | Placement Outdoor | Thermal sensitivity (NETD) 20 mK | Sensor type Microbolometer | 1xNumber of lenses | Frame rate 30 fps | Image stabilizer Yes | Ethernet LAN Yes | Card reader integrated Yes | Power source type DC,PoE | Weight 1.4 kg | 1xNumber of cameras
6 761,71 €
Sisältää alv:n
Määrä
Tellimisel

Kuvaus

Reliable detection and visual verification- always

Using thermal technology, AXIS Q1972-E offers reliable detection and verification 24/7 even in low contrast scenes. It isn’t impacted by weather or light conditions ensuring a lower false alarm rate. With four lens alternatives (10 mm, 19 mm, 25 mm, and 35 mm), it offers optimal installation possibilities. Thermal palettes help you visually identify different heat sources making it easier and more efficient to interpret a scene. And electronic image stabilization (EIS) ensures stable, reliable video in all environments. Furthermore, because thermal imaging doesn’t deliver images that allow for identification, privacy is always guaranteed.

Powerful analytics platform

AXIS Q1972-E comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for enhanced detection capabilities allowing you to detect and classify humans and other objects. Built on a powerful platform, it’s possible to add third-party analytics to trigger events. It comes with two I/O ports for connecting external devices. Furthermore, edge-to-edge technology lets you connect, for instance, a hornspeaker to enable audio alarms that deter, warn, and notify. You can also connect a strobe siren to deter intruders with the power of light and sound.

Secure, robust, and sustainable

This powerful thermal camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. With IK10-, IP66/67-, NEMA TS2, and NEMA 4x ratings, it’s impact- and weather-resistant. What’s more, this robust, sustainable device offers a low carbon footprint. It’s made from halogen-free materials and there’s no need for lighting in dark scenes, ensuring lower system power consumption.


Tuotetiedot
AXIS
03027-001

Lisätiedot

Vendor Homepage
https://www.axis.com/products/axis-q1972-e
Garantija
60
Model
AXIS Q1972-E 10 mm 30 fps, 03027-001
Category Code
FNC
Unit Box Height
0.16
Unit Box Length
0.265
Unit Box Width
0.145
Units per Shipping Box
1
Unit Calculated Volume
0.006148 cubm
Unit Calculated Weight
1.61 kg
Summary
Axis Q1972-E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 63 , Camera pixel size: 17 m. Sensor type: Microb
Weight & dimensions (Width)
132 mm
Weight & dimensions (Depth)
264 mm
Weight & dimensions (Height)
132 mm
Weight & dimensions (Weight)
1400 g
Performance (Certification)
CSA, UL/cUL, CE, KC, TAA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, C
Ports & interfaces (Microphone in)
Yes
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage relative humidity (H-H))
5 - 95 %
Operational conditions (Storage temperature (T-T))
-40 - 65 C
Network (Ethernet LAN)
Yes
Design (Product colour)
Black/White
Power (Power consumption (max))
12.95 W
Power (Power consumption (typical))
5 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Aluminium/Polycarbonate (PC)
Packaging content (Manual)
Yes
Other features (Doesn't contain)
CFR/PVC/BFR
Operational conditions (Operating relative humidity (H-H))
10 - 100 %
Ports & interfaces (DC-in jack)
Yes
Design (Form factor)
Bullet
Design (LED indicators)
Yes
Storage (Compatible memory cards)
MicroSD (TransFlash)/MicroSDHC/MicroSDXC
Power (Power source type)
DC,PoE
Sustainability (Compliance certificates)
REACH/RoHS
Storage (Card reader integrated)
Yes
Storage (RAM capacity)
2048 MB
Network (Ethernet interface type)
Fast Ethernet/Gigabit Ethernet
Security (Security algorithms)
256-bit AES-XTS/EAP-TLS/FIPS 140-2/MSCHAPv2/PEAP
Design (IK code)
IK10
Design (International Protection (IP) code)
IP66, IP67
Design (Mounting type)
Wall
Design (Weatherproof)
Yes
Performance (Connectivity technology)
Wired
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Camera (Lens viewing angle, horizontal)
63
Lens system (Number of lenses)
1
Video (Frame rate)
30 fps
Video (Image quality adjustment)
Brightness/Contrast/Sharpness
Video (Maximum resolution)
640 x 480 pixels
Video (Text caption overlay)
Yes
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
Microbolometer
Lens system (Maximum aperture number)
1.2
Video (Flip & mirror)
Yes
Video (Gain control type)
Auto
Ports & interfaces (RS-485 ports)
1
Security (Video motion detection)
Yes
Video (Image stabilizer)
Yes
Video (Video compression formats)
AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Image sensor (Number of sensors)
1
Video (Bit rate control)
Variable Bit Rate (VBR)
Video (Video streaming)
Yes
Audio (Audio formats supported)
AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSc , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH,
Security (Active tampering alarm)
Yes
Lens system (Closest focusing distance)
2.8 m
Security (Privacy protection)
Yes
Power (Power consumption (Power over Ethernet (PoE)))
12.95 W
Lens system (Lens diameter)
10 mm
Storage (Flash memory)
8192 MB
Network (Networking standards)
IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Security (Digest authentication)
Yes
Audio (Audio system full duplex)
Yes
Performance (Preset points)
Yes
Security (Alert notification type)
E-mail
Audio (Audio detection)
Yes
Security (Pixel counter)
Yes
Ports & interfaces (Terminal block port)
Yes
Camera (Camera pixel size)
17 m
Audio (Sample rates)
8 - 48 kHz
Image sensor (Effective sensor resolution (thermal module))
640 x 480 pixels
Ports & interfaces (RS-422 ports)
1
Performance (Thermal sensitivity (NETD))
20 mK
Lens system (Infrared spectral band)
8 - 14 m

Tilausviitteet

EAN13
7331021087996
Valmistajan tuotenumero (MPN)
1445565
16 muuta tuotetta samassa kategoriassa:

Viite: IPC-HFW2449S-S-IL-0280B

Tuotemerkki: DAHUA

NET CAMERA 4MP IR BULLET/IPC-HFW2449S-S-IL-0280B DAHUA

Bullet | Ceiling/wall | White | IP code IP67 | IP security camera | Wired | Placement Indoor & outdoor | Wide Dynamic Range (WDR) Yes | Minimum illumination 0.0008 lx | Pan range 0 - 360 ° | White balance Auto/Manual/Natural/Outdoor/Street lamp | Optical sensor size 1/2.9 " | Sensor type CMOS | 2xNumber of lenses | Fixed focus Yes | Night vision Yes |...
83,03 € 184,51 €
Lisää
Laos

Viite: 03182-001

Tuotemerkki: AXIS

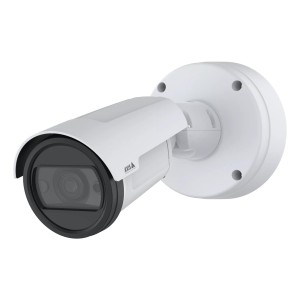

NET CAMERA P1485-LE 28MM/03182-001 AXIS
