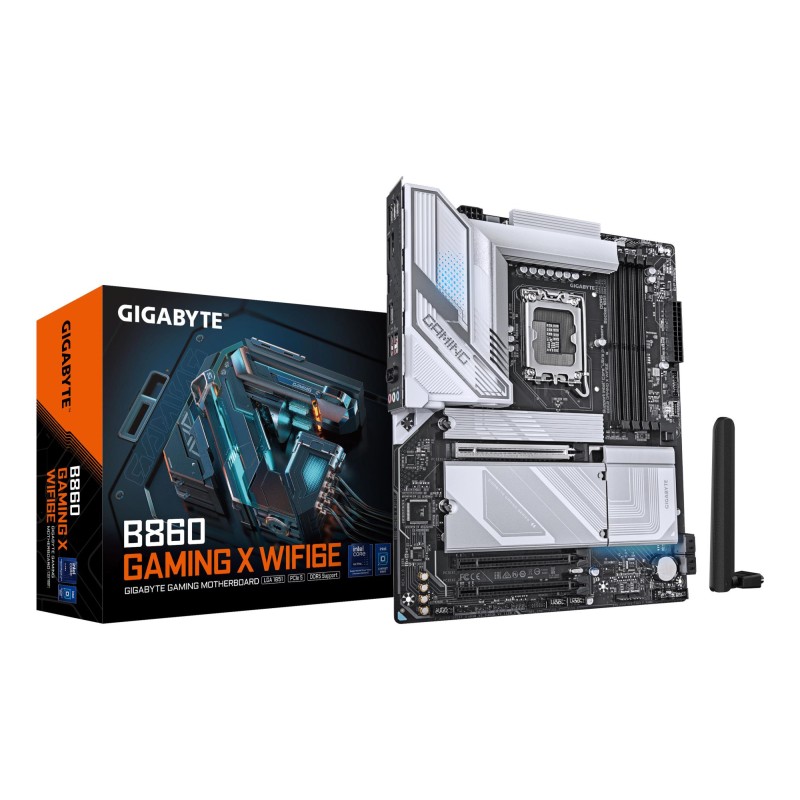

Emolevy GIGABYTE Intel B860 Express LGA1851 ATX Memory DDR5 Memory slots 4 1xTietokoneI-Express 16x 2xM.2 1xHDMI 1xDisplayPort 1

Lisätiedot

Vendor Homepage

https://www.gigabyte.com/

Garantija

36

Model

B860 GAMING X WIFI6E

Category Code

MBI

Unit Box Height

0.275

Unit Box Length

0.34

Unit Box Width

0.08

Units per Shipping Box

6

Unit Calculated Volume

0.01047 cubm

Unit Calculated Weight

2.21 kg

Summary

GIGABYTE B860 GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible pr

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

335 mm

Packaging data (Package depth)

270 mm

Packaging data (Package height)

80 mm

Packaging data (Package weight)

2210 g

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Other features (Weight)

1930 g

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Features (Product colour)

Dark brown

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Packaging content (Screws included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

Intel

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Features (Component for)

PC

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Network (WLAN controller model)

Intel Wi-Fi 6E AX211

Network (LAN controller)

Realtek RTL8125

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Cooling type)

Passive

Battery (Battery weight)

3 g

Processor (Compatible processor series)

Intel Core Ultra (Series 2)/Intel Core Ultra (Series 1)

Processor (Processor socket)

LGA 1851 (Socket V1)

Processor (Supported processor sockets)

LGA 1851

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

9066 MHz

Memory (Supported memory clock speeds)

5600/6400/9066 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

7

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

4

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (S/PDIF out connector)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

5

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Rear panel I/O ports (WiFi-AP antenna jack)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel B860

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

3

Expansion slots (PCI Express x16 (Gen 4.x) slots)

2

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (DisplayPort version)

2.1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Features (Audio chip)

Realtek ALC897

Features (Power source type)

ATX

Graphics (DirectX version)

12.0

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

BIOS (ACPI version)

5.0

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (Number of RGB LED pin headers)

4

Internal I/O (Number of water pump connectors)

2

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

25110

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

22110

Expansion slots (3rd M.2 highest PCI Express generation)

4.0

Expansion slots (3rd M.2 largest key size)

22110

Internal I/O (Number of EPS power connectors (8-pin))

1

Packaging content (Antenna included)

Yes

Rear panel I/O ports (USB4 Gen 2x2 ports quantity)

1

Tilausviitteet

EAN13

4719331866532

Valmistajan tuotenumero (MPN)

1432816
