Kuvaus

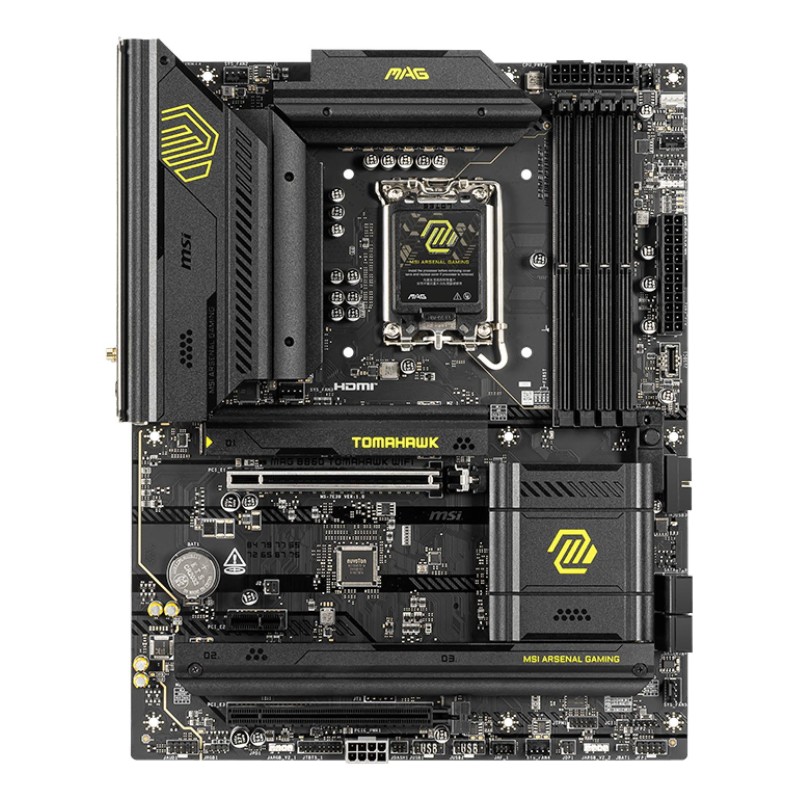

MAG B860 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefied of Intel Core Ultra processors.
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC) Ultra Performance: 12+1+1+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience
Tuotetiedot
Viite
MAG B860 TOMAHAWK WIFI
Varastossa
30 Tuotteet
Lisätiedot
Vendor Homepage
https://www.msi.com/Motherboard/MAG-B860-TOMAHAWK-WIFI
Garantija
36
Model
MAG B860 TOMAHAWK WIFI
Category Code
MBI
Unit Box Height
0.07
Unit Box Length
0.35
Unit Box Width
0.27
Units per Shipping Box
10
Unit Calculated Volume
0.008299 cubm
Product Net Weight
1 kg
Unit Calculated Weight
1.69 kg
Summary
MSI MAG B860 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supp
Weight & dimensions (Width)
243.84 mm
Weight & dimensions (Depth)
304.8 mm
Network (Bluetooth)
Yes
Network (Bluetooth version)
5.4
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour)
Black
Processor (Processor manufacturer)
Intel
Network (Top Wi-Fi standard)
Wi-Fi 7 (802.11be)
Features (Component for)
PC
Memory (Maximum internal memory)
256 GB
Memory (Memory channels)
Dual-channel
Graphics (On-board graphics card)
No
Network (WLAN controller model)
Killer Wi-Fi 7 1750x
Expansion slots (PCI Express x16 (Gen 5.x) slots)
1
Processor (Compatible processor series)
Intel Core Ultra (Series 2)
Processor (Processor socket)
LGA 1851 (Socket V1)
Processor (Supported processor sockets)
LGA 1851
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory clock speed (max))
9200 MHz
Memory (Supported memory clock speeds)
5600/6400/7200/9200 MHz
Memory (Supported memory types)
DDR5-SDRAM
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
7
Storage controllers (Supported storage drive interfaces)
M.2,Micro SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Internal I/O (CPU fan connector)
Yes
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (USB 2.0 connectors)
4
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
4
Network (Ethernet interface type)
5 Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
Intel B860
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
ATX
Features (Windows operating systems supported)
Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
3
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
256 Mbit
BIOS (BIOS type)
UEFI AMI
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
1
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
1
Features (Audio chip)
Realtek ALC897
Processor (Maximum internal memory supported by processor)
256 GB
Internal I/O (Total number of SATA connectors)
4
BIOS (ACPI version)
6.5
BIOS (System Management BIOS (SMBIOS) version)
3.7
Memory (ECC сompatibility)
Non-ECC
Internal I/O (Number of CPU fan connectors)
1
Internal I/O (Number of RGB LED pin headers)
3
Internal I/O (Number of water pump connectors)
1
Expansion slots (1st M.2 highest PCI Express generation)
5.0
Expansion slots (1st M.2 largest key size)
2280
Expansion slots (2nd M.2 highest PCI Express generation)
4.0
Expansion slots (2nd M.2 largest key size)
22110
Expansion slots (3rd M.2 highest PCI Express generation)
4.0
Expansion slots (3rd M.2 largest key size)
2280
Expansion slots (PCI Express x1 slots)
1
Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)
1
Tilausviitteet
EAN13
4711377279642
Valmistajan tuotenumero (MPN)
1431301
