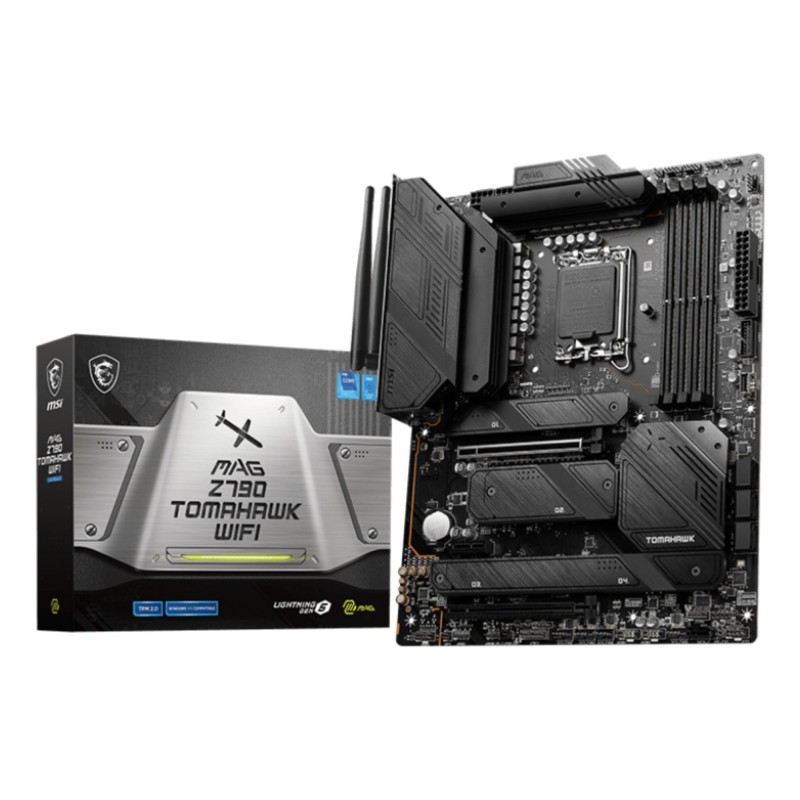

Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDispla

Lisätiedot

Vendor Homepage

https://www.msi.com/Motherboard/MAG-Z790-TOMAHAWK-WIFI

Garantija

36

Model

MAG Z790 TOMAHAWK WIFI

Category Code

MBI

Unit Box Height

0.075

Unit Box Length

0.345

Unit Box Width

0.275

Units per Shipping Box

1

Unit Calculated Volume

0.007116 cubm

Unit Calculated Weight

1.88 kg

Summary

MSI MAG Z790 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Pentium Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory channels: Dual-channel. Sup

Weight & dimensions (Width)

243.84 mm

Weight & dimensions (Depth)

304.8 mm

Packaging content (Cables included)

SATA

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Features (Product colour)

Black

Processor (Processor manufacturer)

Intel

Network (Top Wi-Fi standard)

Wi-Fi 6 (802.11ax)

Features (Component for)

PC

Memory (Maximum internal memory)

192 GB

Memory (Memory channels)

Dual-channel

Expansion slots (PCI Express x16 (Gen 5.x) slots)

2

Processor (Compatible processor series)

Intel Celeron /Intel Pentium Gold

Processor (Processor socket)

LGA 1700

Processor (Supported processor sockets)

LGA 1700

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

7200 MHz

Memory (Supported memory clock speeds)

4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (CPU fan connector)

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

7

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

4

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel Z790

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

4

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/10/5

Storage controllers (RAID support)

Yes

Internal I/O (Chassis intrusion connector)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

1

Processor (Maximum internal memory supported by processor)

192 GB

BIOS (ACPI version)

6.4

BIOS (System Management BIOS (SMBIOS) version)

3.5

Memory (ECC сompatibility)

Non-ECC

Expansion slots (PCI Express x1 (Gen 4.x) slots)

1

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Tilausviitteet

EAN13

4711377025492

Valmistajan tuotenumero (MPN)

1389487
