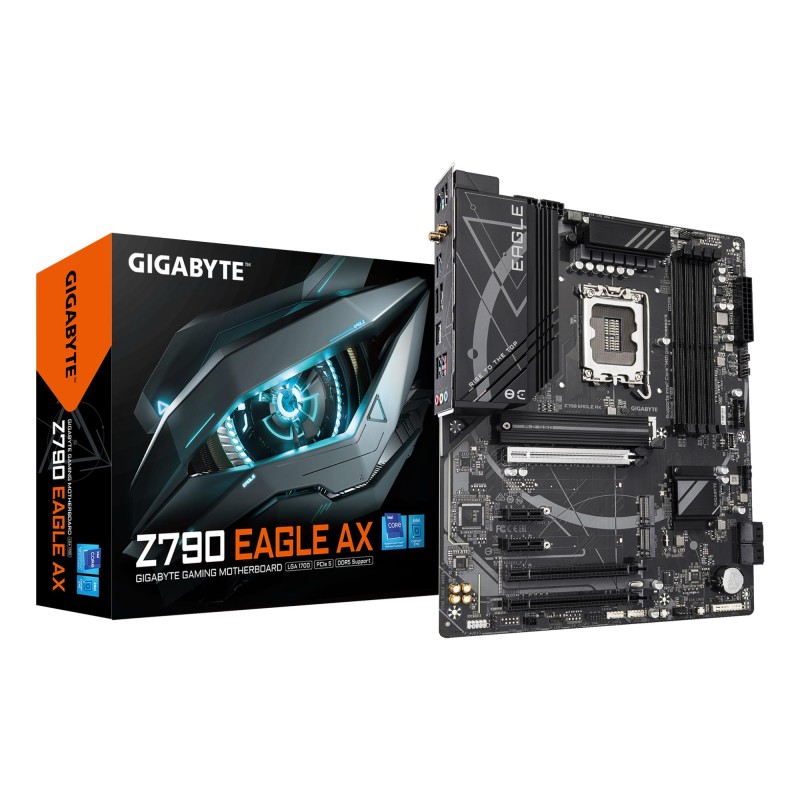

Mainboard|GIGABYTE|Intel Z790 Express|LGA 1700|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNumber of M.2 (M) slots|Z790

Lisätiedot

Vendor Homepage

https://www.gigabyte.com

Garantija

36

Category Code

MBI

Unit Box Height

0.08

Unit Box Length

0.27

Unit Box Width

0.34

Units per Shipping Box

8

Unit Calculated Volume

0.009973 cubm

Unit Calculated Weight

1.84 kg

Summary

GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+ Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

335 mm

Packaging data (Package depth)

270 mm

Packaging data (Package height)

80 mm

Packaging data (Package weight)

1807.5 g

Packaging content (Cables included)

SATA

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Features (Product colour)

Brown

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

Intel

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Features (Component for)

PC

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Memory (Maximum internal memory)

192 GB

Memory (Memory channels)

Dual-channel

Graphics (On-board graphics card)

No

Network (WLAN controller model)

Intel Wi-Fi 6E AX211

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Battery (Battery weight)

3 g

Processor (Compatible processor series)

Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold

Processor (Processor socket)

LGA 1700

Processor (Supported processor sockets)

LGA 1700

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

7600 MHz

Memory (Supported memory clock speeds)

4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

7

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

2

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Rear panel I/O ports (WiFi-AP antenna jack)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel Z790 Express

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

3

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS button)

Yes

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Internal I/O (Thunderbolt headers)

2

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (DisplayPort version)

1.2

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

4

Features (Audio chip)

Realtek ALC897

Features (Power source type)

ATX

Processor (Maximum internal memory supported by processor)

192 GB

Memory (Supported memory module capacities)

12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

Internal I/O (Total number of SATA connectors)

4

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

BIOS (ACPI version)

5.0

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

ECC & Non-ECC

Graphics (Discrete graphics support)

Yes

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2304 pixels

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Packaging content (Antenna included)

Yes

Rear panel I/O ports (USB connector type)

USB Type-A/USB Type-C

Expansion slots (PCI Express x1 (Gen 3.x) slots)

2

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Processor (Maximum number of SMP processors)

1

Internal I/O (Number of EATX power connectors)

2

Tilausviitteet

EAN13

4719331860998

Valmistajan tuotenumero (MPN)

1453820
