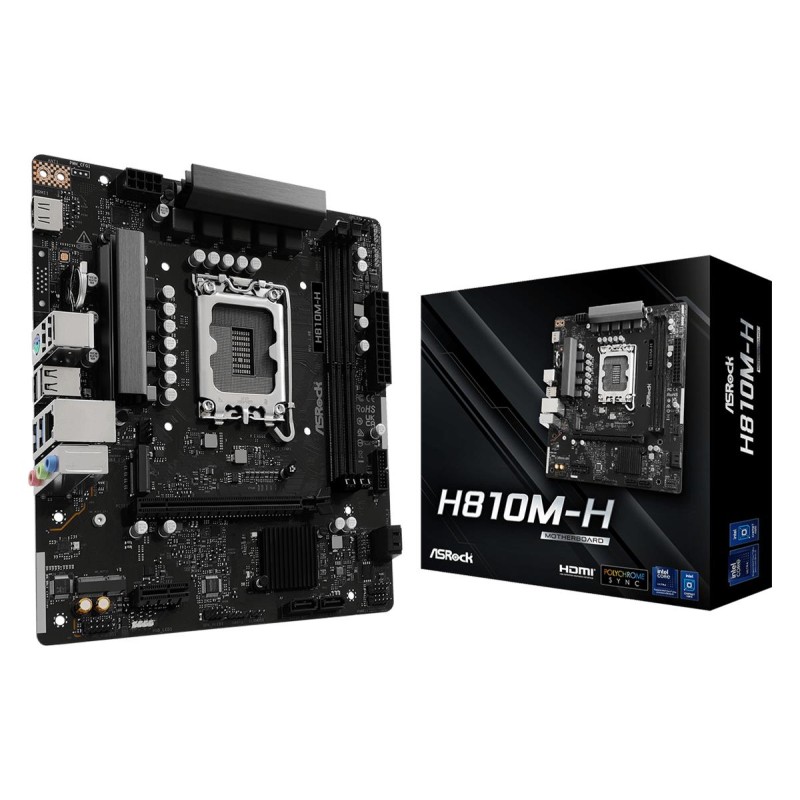

Mainboard|ASROCK|H810M-H|Intel H810|LGA 1851 (Socket V1)|micro ATX|RAM DDR5-SDRAM|2xSlots|1xNumber of M.2 (M) slots|H810M-H

Lisätiedot

Vendor Homepage

https://www.asrock.com/mb/Intel/H810M-H/index.asp

Garantija

36

Model

H810M-H

Category Code

MBI

Unit Box Height

0.06

Unit Box Length

0.28

Unit Box Width

0.24

Units per Shipping Box

20

Unit Calculated Volume

0.0044225 cubm

Unit Calculated Weight

0.897 kg

CnCode

84733020

Summary

Asrock H810M-H. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storag

Weight & dimensions (Width)

220 mm

Weight & dimensions (Depth)

193 mm

Packaging content (Cables included)

SATA

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Features (Product colour)

Black

Packaging content (Screws included)

Yes

Processor (Processor manufacturer)

Intel

Features (Certification)

FCC, CE, ErP/EuP ready

Features (Component for)

PC

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Network (LAN controller)

Realtek RTL8111H

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Processor (Processor socket)

LGA 1851 (Socket V1)

Processor (Supported processor sockets)

Intel LGA1851

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

6400 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

5

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Number of chassis fan connectors)

1

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Network (Ethernet interface type)

Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel H810

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (Windows operating systems supported)

Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

1

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

4

Features (Audio chip)

Realtek ALC897

Memory (ECC сompatibility)

ECC & Non-ECC

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

3840 x 2160 pixels

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (Number of RGB LED pin headers)

1

Expansion slots (1st M.2 highest PCI Express generation)

4.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (PCI Express x1 (Gen 4.x) slots)

1

Graphics (HDCP version)

2.3

Graphics (High Dynamic Range (HDR) supported)

Yes

Tilausviitteet

EAN13

4711581490833

Valmistajan tuotenumero (MPN)

1451042
