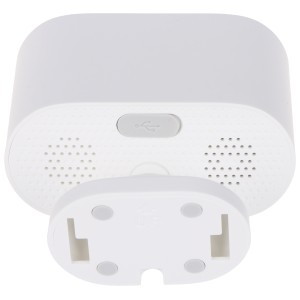

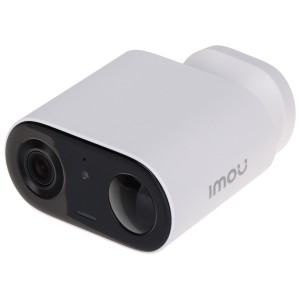

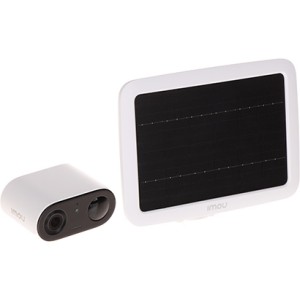

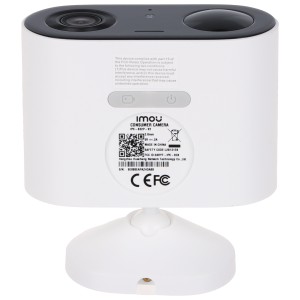

Camera IPC-B32P:
Standard:
IP
Resolution:
2304 x 1296 - 3
Mpx
Sensor:
Progressive Scan CMOS
Lens:
2.8 mm
View angle:
98 °
Range of IR illumination:
7 m
Audio:
Microphone built-in, Speaker built-in, Bi-directional audio streaming support, Alarm siren - 90
dB
Image compression method:
H.265 /
H.264
Main stream frame rate:
15
fps @ 3
Mpx
Network interface:
Wi-Fi - IEEE 802.11 b/g/n/ac - 2.4 GHz
Mobile phones support:
Access by a cloud (P2P) Android:
IMOU free application iOS (iPhone):
IMOU free application
Default admin user / password:
admin / -
The administrator password should be set at the first start
Default IP address:
DHCP
Internal memory:
4 GB eMMC
Main features:
Wi-Fi Module - IEEE 802.11 b/g/n/ac, Range : 50 m (open area), Ability to set your own mode of operation, VLOG mode - possibility of manual recording by pressing the button on the case,

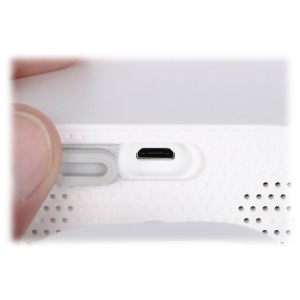

micro USB socket PIR detector - Built-in People detection
Power supply:
built-in battery : 5000 mAh 5 V
DC / 2 A (power adapter not included) FSP12 Solar Panel
Power consumption:
≤ 3.5 W
"Index of Protection":
IP65
Operation temp:
-20 °C ... 50 °C
Weight:
0.21 kg
Dimensions:
88 x 60 x 41 mm (without bracket)
Supported languages:

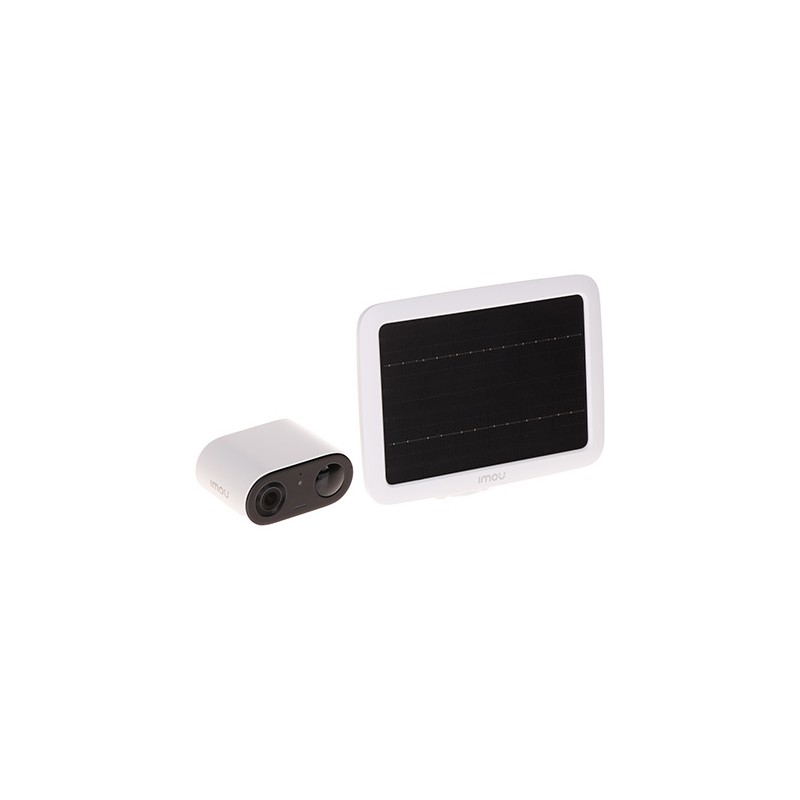

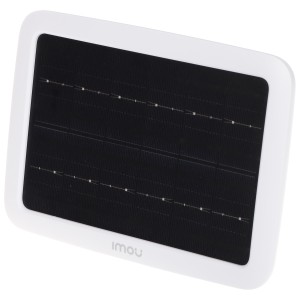

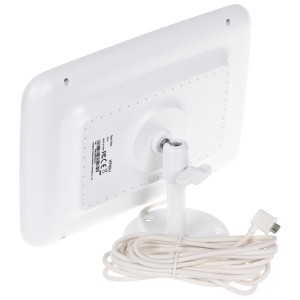

FSP12 Solar Panel:
| Output voltage: |

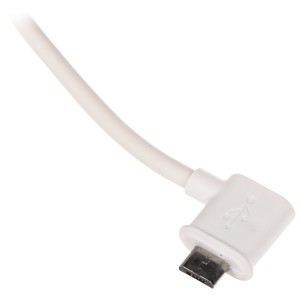

6.2 V DC @ micro USB |
| Output current: |
484 mA |
| Output power: |
3 W |
| Length of the cables: |
2.75 m |
| Weight: |
0.3 kg (without bracket) |
| Dimensions: |
198 x 140 x 29 mm (without bracket) |
General information:
| Manufacturer / Brand: |
DAHUA / IMOU |
| Guarantee: |
2 years |
