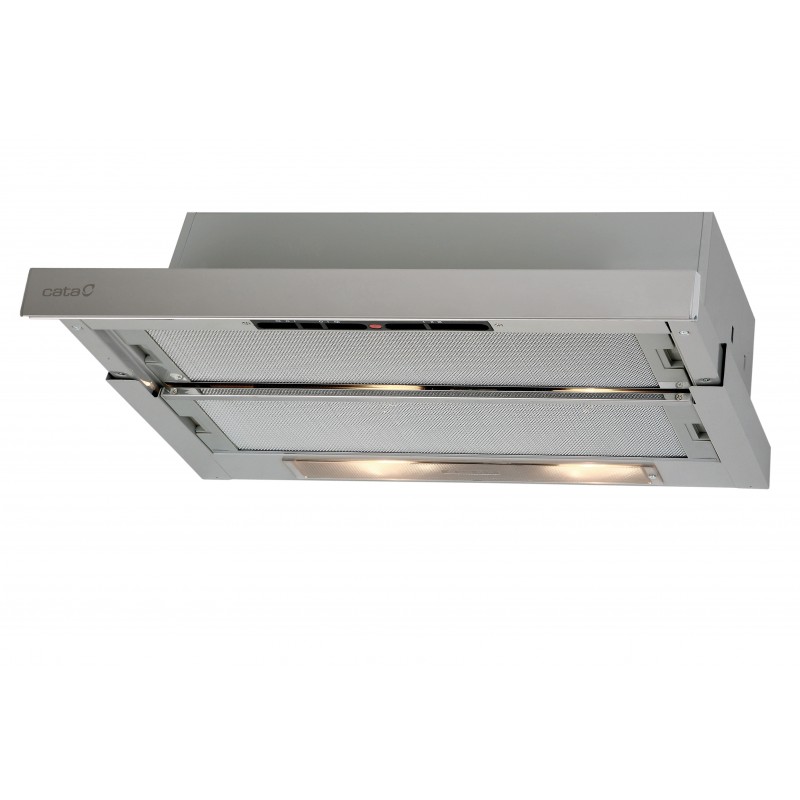

CATA | Hood | TFH 5250 X | Telescopic | Energy efficiency class D | Width 50 cm | 325 m /h | Slider control | LED | Inox

Lisätiedot

Leveys

50 cm

Pituus

17.5 cm

Warranty

36 month(s)

Lamp type

LED

Energy efficiency class

D

Device Type

Telescopic

Control type

Slider control

Net weight

9.00 kg

Gross weight

10.40 kg

Colour of product

Inox

Packing quantity

1.00 pc(s)

Volume (m3)

0.05 m

Tare weight (kg)

1.40 kg

Gross depth (mm)

540.00 mm

Gross width (mm)

230.00 mm

Gross height (mm)

365.00 mm

WEEE tax

Yes

WEE classification

CL109:4:2017-04-01

Paper/Pasteboard

1400.00 g

Embeeded battery

No

Depth

28 cm

Producer product name

TFH 5250 X

Plastic (No PET)

148.00 g

Type

Telescopic

Producer product family

Hood

PET

490 g

Height (max)

17.5 cm

Palette Qty

38 pc(s)

Number of speeds

3

Motor type

2 x L1N

Country of origin

36

Auto power off

No

Control panel

Sliding control panel

Annual energy consumption

78.3 kWh

Handheld remote control

No

Filter cleaning indicator

No

Washable filter

Yes

Number of motors

2

Type of extraction

With Outlet tube to the exterior / Recirculating

Number of filters

2 pc(s)

Grease filter type

Metallic

Exhaust connection diameter

12 cm

Lamps quantity

2

Noise level (low speed)

54 dB

Pressure (Pa)

301 Pa

Lighting efficiency class

E

Grease filtering efficiency class

D

Fluid dynamic efficiency class

E

Dishwasher proof filter

Yes

Removable filter

Yes

Touch control

No

Height (min)

17.5 cm

Motor included

Yes

Minimum distance from gas hob

65 cm

Minimum distance from electric hob

55 cm

Intensive speed

No

Noise level (max)

68 dB

Maximum extraction power according to EN 61591

325 m /h

Motor rated power

2x65 W

Recirculation

Yes

Fluid Dynamic Efficiency (FDE), %

9 %

Lighting efficiency (LE)

9.3 lux/Watt

Grease filtering efficiency (GFE), %

66.5 %

Carbon filter for recirculation included

No

Airflow (Minimum speed)

174.8 m /h

Producer

CATA

Tilausviitteet

EAN13

8422248086264
