Kuvaus
The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.Dual USB4® Connectivity
Tuotetiedot
Viite
PROARTX870E-CREATORWIFI
Varastossa
16 Tuotteet
Lisätiedot
Vendor Homepage
https://www.asus.com/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/
Garantija
36
Model
PROART X870E-CREATOR WIFI
Category Code
MBA
Unit Box Height
0.09
Unit Box Length
0.36
Unit Box Width
0.285
Units per Shipping Box
5
Unit Calculated Volume
0.01093 cubm
Unit Calculated Weight
2.82 kg
Summary

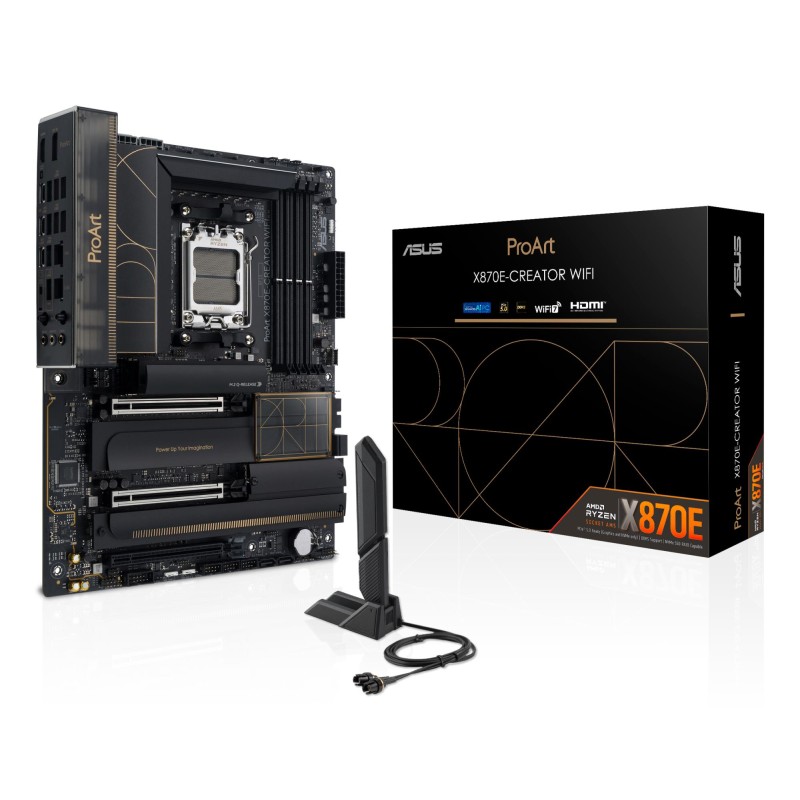

ASUS ProArt X870E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive inter
Weight & dimensions (Width)
305 mm
Weight & dimensions (Depth)
244 mm
Packaging content (Cables included)
DisplayPort,SATA
Network (Bluetooth)
Yes
Network (Bluetooth version)
5.4
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
Wi-Fi 7 (802.11be)
Processor (Processor manufacturer)
AMD
Network (Top Wi-Fi standard)
Wi-Fi 7 (802.11be)
Features (Component for)
PC
Memory (Maximum internal memory)
192 GB
Memory (Memory channels)
Dual-channel
Expansion slots (PCI Express x16 (Gen 5.x) slots)
2
Processor (Processor socket)
Socket AM5
Processor (Supported processor sockets)
Socket AM5
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory types)
DDR5-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
8
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Number of chassis fan connectors)
5
Internal I/O (Number of COM connectors)
1
Internal I/O (Number of SATA III connectors)
4
Internal I/O (USB 2.0 connectors)
3
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Rear panel I/O ports (DisplayPorts quantity)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
2
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (USB 2.0 ports quantity)
1
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
7
Rear panel I/O ports (WiFi-AP antenna jack)
1
Network (Ethernet interface type)
10 Gigabit Ethernet/2.5 Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
AMD X870E
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
ATX
Features (Windows operating systems supported)
Windows 11
Expansion slots (Number of M.2 (M) slots)
4
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
256 Mbit
BIOS (BIOS type)
UEFI AMI
BIOS (Clear CMOS button)
Yes
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Internal I/O (Chassis intrusion connector)
Yes
Features (Audio chip)
Realtek S1220A
Memory (ECC сompatibility)
ECC & Non-ECC
Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)
1
Internal I/O (USB 3.2 Gen 2x2 connectors)
1
Rear panel I/O ports (USB4 Gen 2x2 ports quantity)
2
Tilausviitteet
EAN13
4711387730775
Valmistajan tuotenumero (MPN)
1424414
