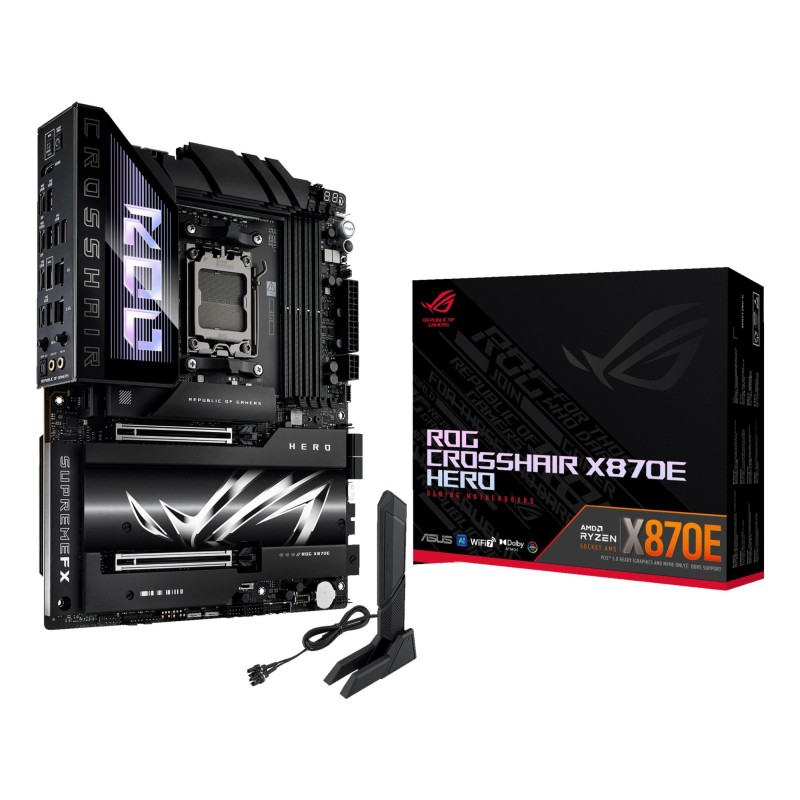

Emolevy ASUS AMD X870E SAM5 ATX Memory DDR5 Memory slots 4 2xTietokoneI-Express 4.0 16x 2xTietokoneI-Express 5.0 16x 4xM.2 1xHDM

Lisätiedot

Vendor Homepage

https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero/

Garantija

36

Model

ROG CROSSHAIR X870E HERO

Category Code

MBA

Unit Box Height

0.115

Unit Box Length

0.375

Unit Box Width

0.315

Units per Shipping Box

4

Unit Calculated Volume

0.01483 cubm

Unit Calculated Weight

4.31 kg

Summary

ASUS ROG CROSSHAIR X870E HERO. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interf

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

50 mm

Packaging data (Package width)

370 mm

Packaging data (Package depth)

312 mm

Packaging data (Package height)

108 mm

Packaging data (Package weight)

4265 g

Packaging content (Cables included)

SATA

Other features (Weight)

2546 g

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.4

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

Wi-Fi 7 (802.11be)

Packaging content (Drivers included)

Yes

Processor (Processor manufacturer)

AMD

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Features (Component for)

PC

Memory (Maximum internal memory)

192 GB

Memory (Memory channels)

Dual-channel

Expansion slots (PCI Express x16 (Gen 5.x) slots)

2

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

5

Storage controllers (Number of storage drives supported)

10

Storage controllers (Supported storage drive interfaces)

M.2,SATA III,SlimSAS

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Number of chassis fan connectors)

4

Internal I/O (Number of SATA III connectors)

4

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

2

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

6

Rear panel I/O ports (WiFi-AP antenna jack)

1

Network (Ethernet interface type)

2.5 Gigabit Ethernet/5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD X870E

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 11

Expansion slots (Number of M.2 (M) slots)

5

Expansion slots (PCI Express x16 (Gen 4.x) slots)

4

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS button)

Yes

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

2

Features (Audio chip)

Realtek ALC4082

Memory (ECC сompatibility)

ECC & Non-ECC

Internal I/O (USB 3.2 Gen 2x2 connectors)

2

Rear panel I/O ports (USB4 Gen 2x2 ports quantity)

2

Tilausviitteet

EAN13

4711387710302

Valmistajan tuotenumero (MPN)

1424412
