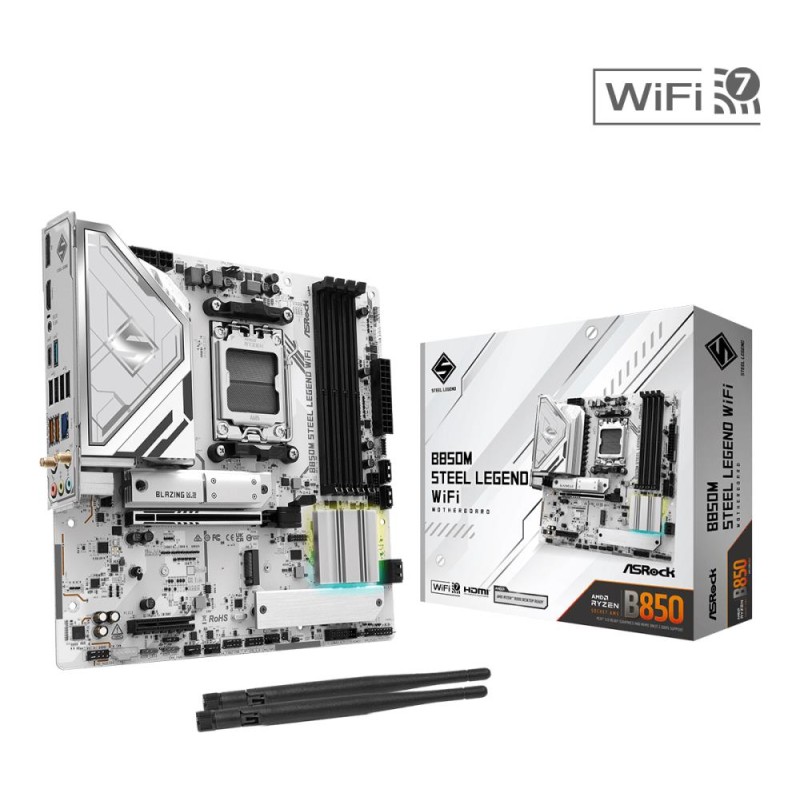

Mainboard|ASROCK|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xD
  • Mainboard|ASROCK|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xD

Mainboard|ASROCK|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xD

1433276
ASROCK
AMD B850 | SAM5 | Micro-ATX | DDR5 | 8000 MHz | Memory slots 4 | Video Depending on CPU | Audio Realtek ALC1220 | LAN 2.5 Gigabit | RAID SATA 0, 1, 10 | TPM Header
168,07 €
Sisältää alv:n
Määrä
Laos
9 Tuotteet

Kuvaus

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
12+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x4
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 M.2 (PCIe Gen4x2)
4 SATA3
2 USB 3.2 Gen2 Type-A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (2 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front)
Realtek 2.5G LAN
802.11be WiFi 7 +Bluetooth
Supports M.2 Bottom Heatsink, BIOS Flashback

Tuotetiedot
ASROCK
1433276
9 Tuotteet

Lisätiedot

Vendor Homepage
www.asrock.com/mb/AMD/B850M%20Steel%20Legend%20WiFi/index.asp Overview
Form Factor
Micro-ATX
Interface (SATA 3.0)
Yes
Socket
SAM5
Input/Output connectors (USB 2.0)
4
Interface (SATA)
Yes
Memory type
DDR5
Frequency speed
8000 MHz
Interface (USB 2.0)
Yes
Input/Output connectors (RJ45)
1
Input/Output connectors (HDMI)
1
Integrated LAN
2.5 Gigabit
Input/Output connectors (Audio-In)
1
Interface (Bluetooth)
Yes
Interface (WiFi)
Yes
Chipset
AMD B850
Integrated audio
Realtek ALC1220
Integrated video
Depending on CPU
Memory slots
4
Input/Output connectors (Audio-Out)
1
Input/Output connectors (Microphone)
1
RAID
SATA 0, 1, 10
TPM
Header
Expansion slots (M.2)
1
Input/Output connectors (DisplayPort)
1
Interface (USB-C)
Yes
Garantija
36
Input/Output connectors (USB 3.2)
3
Interface (USB 3.2)
Yes
Model
B850M Steel Legend WiFi
Category Code
MBA
Expansion slots (PCI-Express 5.0 16x)
1
Expansion slots (PCI-Express 4.0 4x)
4
Unit Box Height
0.06
Unit Box Length
0.3
Unit Box Width
0.265
Input/Output connectors (USB-C)
1
Units per Shipping Box
10
Unit Calculated Volume
0.005406 cubm
Product Net Weight
1.4 kg
Unit Calculated Weight
1.61 kg

Tilausviitteet

EAN13
4711581490499
Valmistajan tuotenumero (MPN)
B850M STEEL LEGEND WIFI
