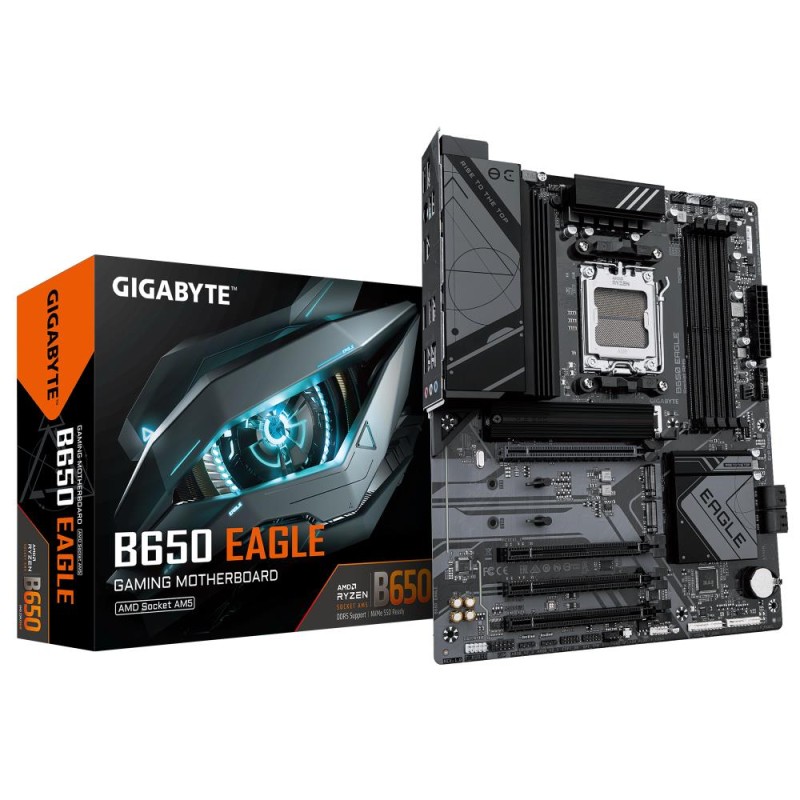

B650 EAGLE
AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
Unparalleled Performance:12+2+2 Phases Digital VRM Solution
Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage:1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch:PCIe x16 Slot with Quick Release Design
Fast Networks:GbE LAN
Extended Connectivity:DP, HDMI, Rear USB® 10Gb/s
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Tuotetiedot
Viite
1420448
Varastossa
16 Tuotteet
Lisätiedot
Vendor Homepage
www.gigabyte.com/Motherboard/B650-EAGLE kf
Form Factor
ATX
Socket
SAM5
Input/Output connectors (USB 2.0)
6
Interface (SATA)
Yes
Memory type
DDR5
Frequency speed
4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz
Interface (USB 2.0)
Yes
Input/Output connectors (RJ45)
1
Input/Output connectors (HDMI)
1
Integrated LAN
Gigabit
Input/Output connectors (Audio-In)
1
Chipset
AMD B650
Integrated video
Depending on CPU
Memory slots
4
Input/Output connectors (Audio-Out)
1
Input/Output connectors (PS/2)
1
Input/Output connectors (Microphone)
1
Expansion slots (PCI-Express 16x)
1
RAID
SATA 0, 1, 10 NVMe 0, 1, 10
TPM
Header
Expansion slots (PCI-Express 3.0 16x)
3
Interface (Serial)
Yes
Expansion slots (M.2)
3
Input/Output connectors (DisplayPort)
1
Garantija
36
Input/Output connectors (USB 3.2)
2
Interface (USB 3.2)
Yes
Model
B650 EAGLE
Category Code
MBA
Input/Output connectors (USB-C)
1
Units per Shipping Box
8
Unit Calculated Volume
0.0102 cubm
Product Net Weight
1.5 kg
Unit Calculated Weight
1.93 kg
Tilausviitteet
EAN13
4719331863081
Valmistajan tuotenumero (MPN)
B650EAGLE
