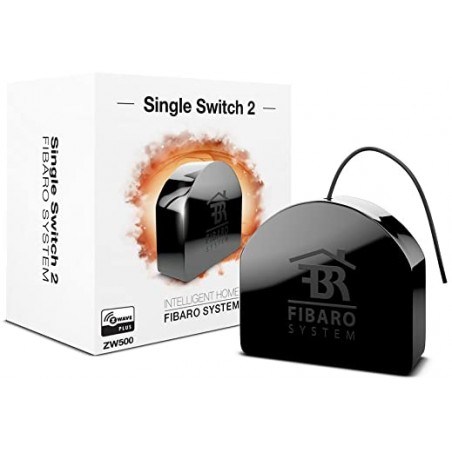

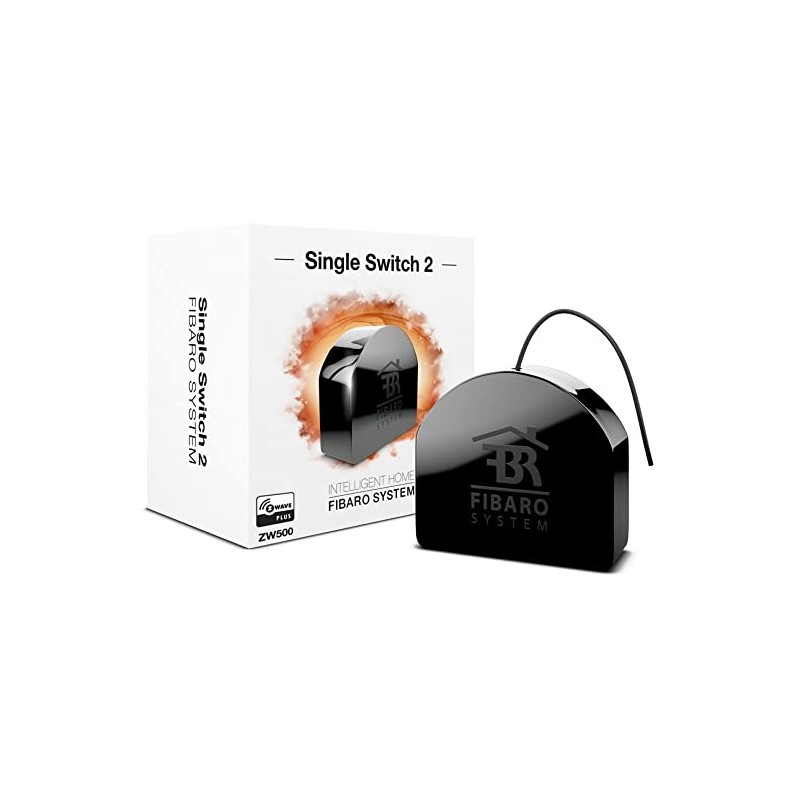

Fibaro Smart Module, Z-Wave Plus EU

Lisätiedot

Warranty

24 month(s)

Special features

Works with various types of switches and buttons Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption Works as a Z-Wave signal repeater (all non-battery operated devices within the network will

Net weight

0.02 kg

Gross weight

0.05 kg

Packing quantity

1.00 pc(s)

Volume (m3)

0.000130975 m

Tare weight (kg)

0.03 kg

Gross depth (mm)

65.00 mm

Gross width (mm)

31 mm

Gross height (mm)

65 mm

WEEE tax

No

Paper/Pasteboard

20.00 g

Embeeded battery

No

Other features

The remotely operated FIBARO Smart Module and Double Smart Module are designed to turn electrical devices or circuits on and off Smart Module (FGS-214) allows to control one device or circuit and the Double Smart Module (FGS-224) allows to control two dev

Plastic (No PET)

10.00 g

Producer product family

Smart Module, Z-Wave Plus EU

Palette Qty

13193 pc(s)

Technical features

Power supply: 100-240V Smart Module (FGS-214): 6.5A, Double Smart Module (FGS-224): 6A per one channel, 9.5A total Compatible with resistive or incandescent load Active element: micro-gap relay Maximum length of wires: 3 m Recommended 0.2 2.0 mm2 wire cro

Tilausviitteet

EAN13

5902701702083
