1xNumber of displays supported, Maximum weight capacity 10 kg, Maximum screen size 109.2 cm (43"), Suitable for TV Yes, Mounting type Desk, Minimum VESA mount 75 x 75 mm, Maximum VESA mount 100 x 100 mm, Height adjustment Yes, Tilt adjustment Yes, Rotating Yes, Colour Black, Weight 3.5 kg
Range Extender, Data transmission speed 1200 Mbps, Number of antennas 2, Wireless Frequency Range 2.4, 5 GHz (11ac), Wireless Transmit Power 17 dBm, Dimensions 80 x 78 x 77 mm
PFS3110-8ET-96-V2, Type Unmanaged, 9xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10, 100), 1xSFP module slots quantity, Switching capacity 7.6 Gbit, s, Forwarding rate 4.17 Mpps, Form factor 10U, Product colour Black, Power source AC, Power supply included Yes, Power over Ethernet (PoE) Yes, Power over Ethernet (PoE) power per port 45 W, Total Power over Ethernet (PoE) budget 96 W, Width 150 mm, Depth 100 mm, Height 42 mm, Weight 540 g

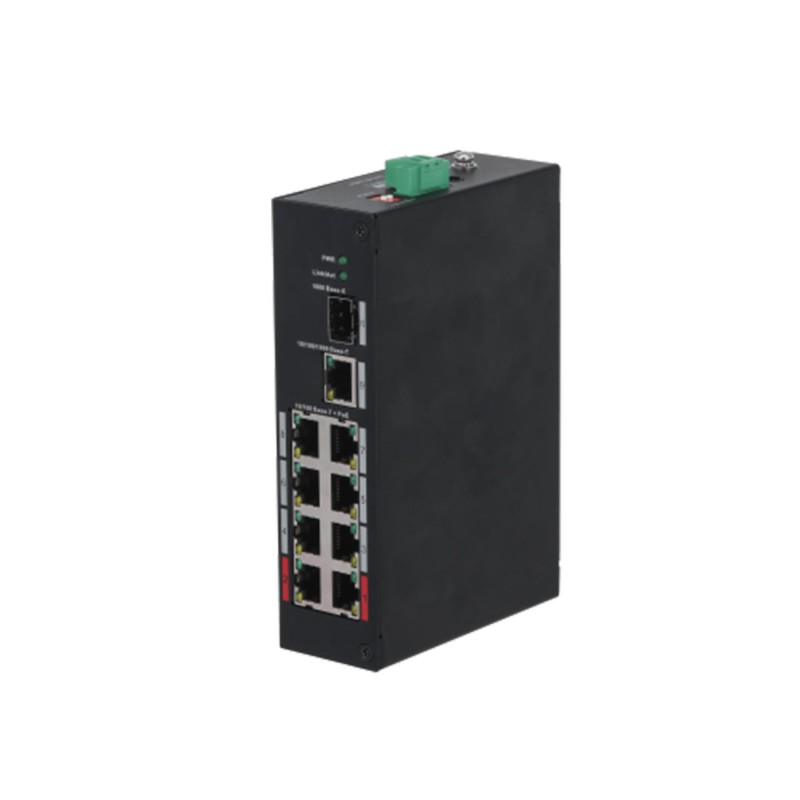

System Overview DH-PFS3110-8ET-96 is an unmanaged Hardened PoE Switch with 8 × 10/100Mbps PoE Ports. It provides 8 × 10/100 Mbps Ethernet ports , 1 × 1000M SFPand 1× 10/100/1000 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/ Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost. Functions Intelligent PoE Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations. BT 90W The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption rate of 90W per port. Suitable for powering high-power devices. PoE Watchdog Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long Distance PoE By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps). 8-pin Assignment PoE Power Supply Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased. Scene The device is applicable for use in different scenarios, including home, office, server farm, and small mall.
LS108GP, Type Unmanaged, Quality of Service (QoS) support Yes, 8xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Switching capacity 16 Gbit/s, Forwarding rate 11.9 Mpps, Product colour Black, Power source DC/PoE, Power supply included Yes, Power over Ethernet (PoE) Yes,...
PFS3110-8ET-96-V2, Type Unmanaged, 9xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10, 100), 1xSFP module slots quantity, Switching capacity 7.6 Gbit, s, Forwarding rate 4.17 Mpps, Form factor 10U, Product colour Black, Power source AC, Power supply included Yes, Power over Ethernet (PoE) Yes, Power over Ethernet (PoE) power per port 45 W, Total Power over Ethernet (PoE) budget 96 W, Width 150 mm, Depth 100 mm, Height 42 mm, Weight 540 g
