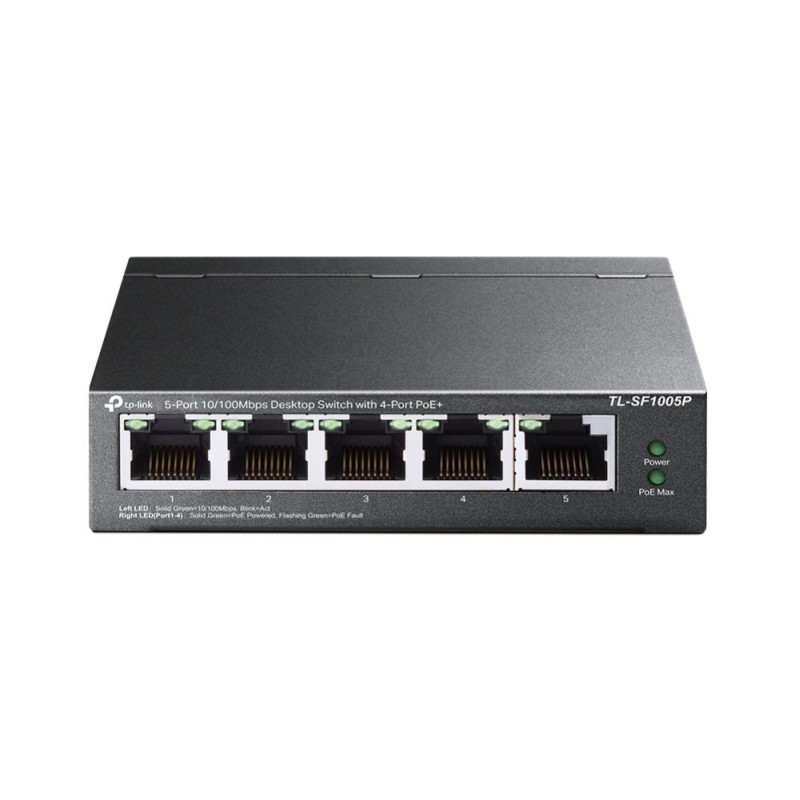

Võrgulüliti TP-LINK Desktop PoE ports 4

Lisainfo

Müüja koduleht

https://uk.tp-link.com/products/details/cat-42_TL-SF1005P.html

Garantija

60

Category Code

SWI

Unit Box Height

0.12

Unit Box Length

0.2

Unit Box Width

0.13

Units per Shipping Box

12

Unit Calculated Volume

0.003844 cubm

Unit Calculated Weight

0.842 kg

Summary

TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching

Weight & dimensions (Width)

99.8 mm

Weight & dimensions (Depth)

98 mm

Weight & dimensions (Height)

25 mm

Packaging data (Package width)

131 mm

Packaging data (Package depth)

196 mm

Packaging data (Package height)

121 mm

Packaging data (Package weight)

760 g

Power (Power source)

DC/PoE

Packaging data (Package type)

Box

Logistics data (Harmonized System (HS) code)

85176990

Certificates (Compliance certificates)

CE/Federal Communications Commission (FCC)/RoHS

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Sustainability (Sustainability compliance)

Yes

Design (Product colour)

Black

Power (AC input frequency)

50 Hz

Power (AC input voltage)

220 V

Power (Power consumption (max))

74 W

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Power (Input current)

1.31 A

Packaging content (User guide)

Yes

Design (LED indicators)

Yes

Packaging data (AC adapter included)

Yes

Network (Copper ethernet cabling technology)

100BASE-T/100BASE-TX/10BASE-T

Network (Networking standards)

IEEE 802.3af/IEEE 802.3x

Management features (Switch type)

Unmanaged

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

5

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Fast Ethernet (10/100)

Network (10G support)

No

Data transmission (Forwarding rate)

0.744 Mpps

Data transmission (Switching capacity)

1 Gbit/s

Design (Rack mounting)

No

Power (DC input voltage)

53.5 V

Power (Power supply included)

No

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Flow control support)

Yes

Network (Cable types supported)

Cat3/Cat4/Cat5/Cat5e/Cat6

Data transmission (MAC address table)

2000 entries

Network (Auto MDI/MDI-X)

Yes

Network (Full duplex)

Yes

Data transmission (Jumbo frames)

2000

Data transmission (Jumbo frames support)

Yes

Design (Stackable)

No

Network (Auto-negotiation)

Yes

Network (Half duplex)

Yes

Data transmission (Store-and-forward)

Yes

Operational conditions (Heat dissipation)

252.34 BTU/h

Performance (Fanless)

Yes

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

67 W

Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity)

4

Network (MAC address auto-aging supported)

Yes

Network (MAC address auto-learning supported)

Yes

Performance (Maximum cable length)

100 m

Eriviited

ean13

6935364083199

MPN

1228622
